Titanium sheet and plate can share the same grade, but that does not make them interchangeable. The difference starts with thickness—but it does not end there. What works for a thin formed part may be very different from what you need for a thicker, machined component.

Key Takeaways

Sheet and plate are mainly distinguished by thickness. A commonly used dividing point is 0.187 in. (4.75 mm), although terminology can vary by specification and supplier.
Match the grade to the service condition. Corrosion, forming, and strength requirements usually narrow the choice quickly.
Titanium needs the right fabrication methods. Heat buildup during machining and atmospheric contamination during welding can quickly create problems.
Check the material documentation. For critical applications, confirm the required specification and request an MTC with the relevant chemistry, mechanical properties, and heat or lot identification.

Titanium Sheet vs. Plate: What Is the Difference?

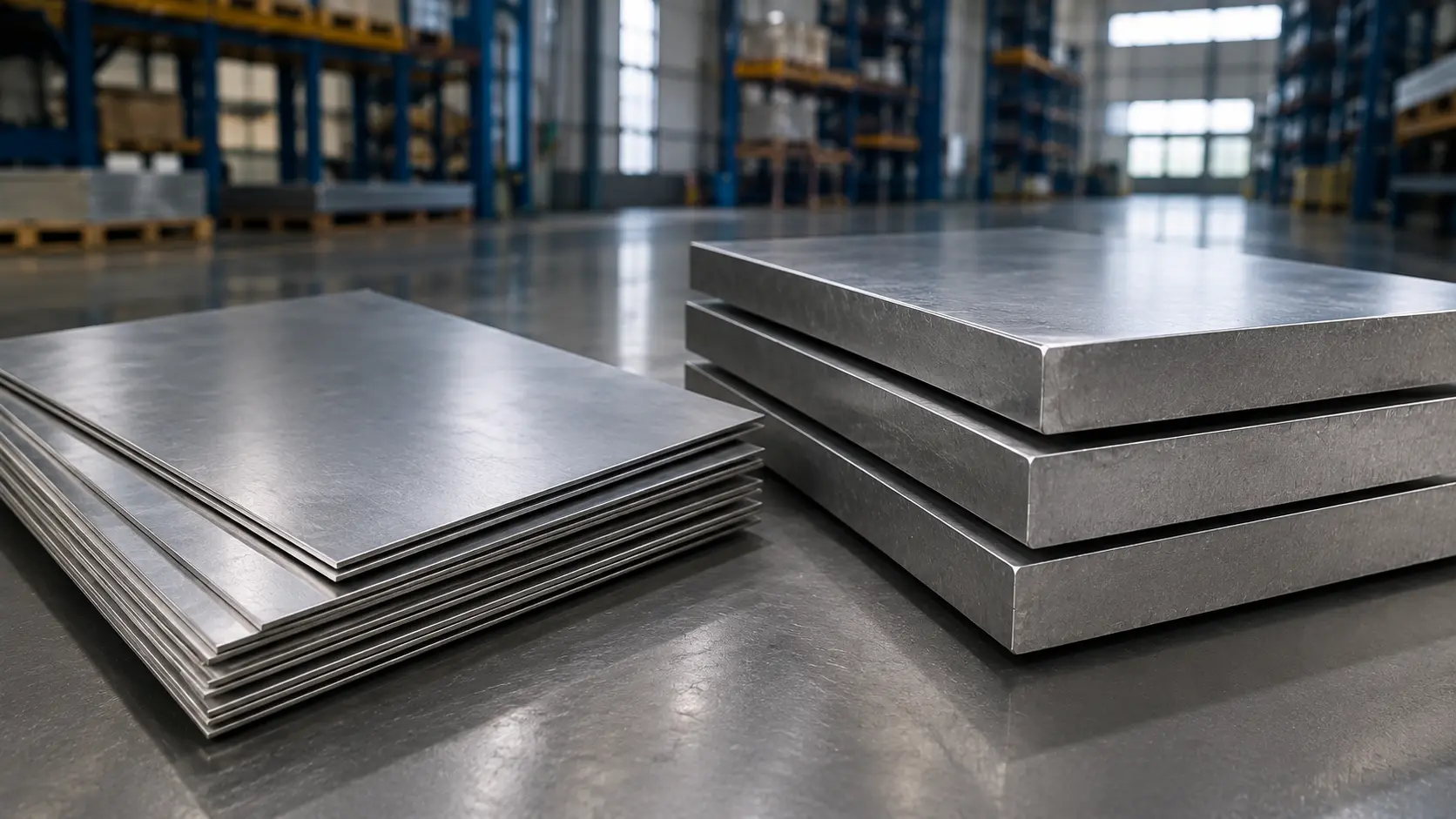

Titanium sheet and plate are both flat-rolled products, with thickness being the main distinction when ordering.

A commonly used classification is:

Form	Typical Thickness Range (Imperial)	Typical Thickness Range (Metric)
Titanium Sheet	0.012 in. to < 0.187 in.	0.3 mm to < 4.75 mm
Titanium Plate	≥ 0.187 in.	≥ 4.75 mm

These numbers are useful when discussing an order, but they should not replace the actual material specification. ASTM B265 covers titanium and titanium alloy strip, sheet, and plate and specifies requirements including chemical composition and mechanical properties. If a drawing or project specification defines the product differently, follow that requirement.

Why the Difference Matters

Thickness affects more than the name of the product.

Thinner titanium sheets are easier to form into skins, covers, heat shields, housings, and other fabricated components. Depending on the grade and condition, it can be bent, formed, stamped, or cut into relatively complex shapes.

Plate is used when a component needs more section thickness, structural capacity, or machining allowance. Typical examples include structural parts, flanges, pressure-containing components, and machined parts.

Why Engineers Use Titanium Sheet and Plate

Titanium costs more than many common engineering metals, so there usually needs to be a clear reason to specify it. For sheet and plate, that reason is often weight reduction, corrosion resistance, or both.

1787733789069-Titanium Sheet and Plate Applications.webp

Titanium sheet and plate are used in industrial applications where corrosion resistance and strength-to-weight performance matter.

High Strength-to-Weight Ratio

Titanium alloys offer high strength at a lower weight than many steel components, which is one reason they are used in aerospace and other weight-sensitive designs.

Strong Corrosion Resistance

Corrosion resistance is one of the main reasons titanium sheet is used in heat exchangers, chemical processing equipment, and marine components. But the service environment matters: a grade that performs well in seawater may not be suitable for a hot acidic process.

Common Titanium Grades for Sheet and Plate

Titanium sheet and plate are available in both commercially pure (CP) grades and titanium alloys. Grade 2 is a common choice for general industrial sheet because it combines corrosion resistance, formability, and weldability. Grade 5 (Ti-6Al-4V) is used where higher strength is the main requirement.

Grade 1 is preferred when extensive forming is needed, while Grade 7 is used for certain aggressive chemical environments. Grade 23 is used where an ELI grade is specifically required.

For a deeper comparison, see our guides to titanium grades, Grade 2 vs Grade 5, and commercially pure titanium vs titanium alloys.

Quick Selection Guide

Need	Typical Grade	Main Reason
General industrial sheet	Grade 2	Corrosion resistance + formability
Extensive forming	Grade 1	Higher ductility
Higher-strength parts	Grade 5	Higher strength
Specific corrosive service	Grade 7	Improved corrosion resistance
ELI requirement	Grade 23	Controlled interstitial content

Titanium Sheet and Plate Sizes and Thicknesses

Stock sizes are usually the fastest option, but cut-to-size material can reduce scrap when the finished part has unusual dimensions or needs extra machining allowance.

Common Sheet and Plate Sizes

A 48 × 120 in. sheet is common in some markets, but stock dimensions vary by grade, thickness, mill, and supplier. A size that is readily available in Grade 2, for example, may be harder to source in Grade 5 or Grade 7.

For current dimensional options, buyers can also review the supplier's titanium sheet and plate specifications.

How Much Thickness Do You Actually Need?

Going thicker is not automatically better; it adds weight, material cost, and often more machining.

For structural parts, load and stiffness usually drive thickness first. Pressure equipment may also require corrosion allowance and code-based minimum thickness.

Some general application ranges may look like this:

Heat exchangers: Thin titanium sheet is often used where efficient heat transfer and corrosion resistance are priorities.
Automotive heat shields and lightweight fabricated parts: Relatively thin sheet can keep weight down while providing the required temperature and corrosion performance.
Marine and heavy industrial components: Thicker plate may be required where structural loads, wear, machining allowance, or impact resistance become important.

Actual thickness for load-bearing, pressure-containing, aerospace, and other safety-critical parts should come from the applicable design calculations and standards.

What to Check When Buying Titanium Sheet or Plate

When comparing titanium quotes, price per kilogram or per sheet is only part of the picture.

Before placing an order, confirm:

grade and specification;
thickness and tolerance;
sheet/plate dimensions;
surface condition;
material traceability and MTC;
stock status and lead time.

Where traceability matters, check the MTC against the purchase specification when the material arrives. Do not treat it as shipment paperwork alone.

At HWHG, titanium sheet and plate orders can be reviewed against requirements such as grade, thickness, dimensions, surface condition, and material documentation before production or shipment.

1787733785345-HWHG Titanium Sheet and Plate Quality Certificate.webp

HWHG titanium sheet and plate with material documentation for quality and traceability review.

Machining Titanium: Control the Heat

One of the main challenges is heat. Titanium has relatively low thermal conductivity, so a large portion of the heat generated during cutting stays close to the cutting edge. This can accelerate tool wear if the cutting parameters and cooling strategy are wrong.

Successful machining usually comes down to controlled cutting speed, suitable feed rates, a rigid setup, sharp tooling, and adequate coolant.

There is no single “slow speed, high feed” setting that works for every titanium job. Drilling, for example, should not simply reuse the same parameters as milling.

1787733783135-CNC Machining of Titanium Plate.webp

Titanium plate being CNC machined with coolant to control heat at the cutting zone.

Welding Titanium: Shield the Hot Metal From Air

Titanium is readily weldable, but hot titanium reacts with oxygen, nitrogen, and hydrogen, which can embrittle the weld and heat-affected zone. High-purity argon is commonly used to keep the weld shielded from the atmosphere.

Shielding needs to cover not only the weld pool but also the hot metal until it has cooled sufficiently.

Visible discoloration can point to inadequate shielding or contamination, but weld acceptance should follow the applicable procedure and standard.

Before You Place an Order

Before sending an RFQ, check the supplier's available grade, thickness range, sheet or plate dimensions, and lead time against the drawing or purchase specification. If traceability is required, confirm the MTC requirements at the same time.
