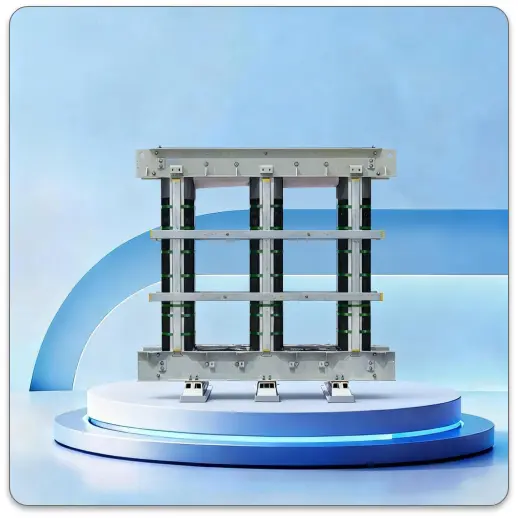

Grain Oriented Electrical Steel GOES is primarily used to manufacture transformer cores that require high magnetic anisotropy.

H30GK110

H27GK100

H27GK095

H23GK090

H23GK085

H20GK080

H20GK075

H30GK110

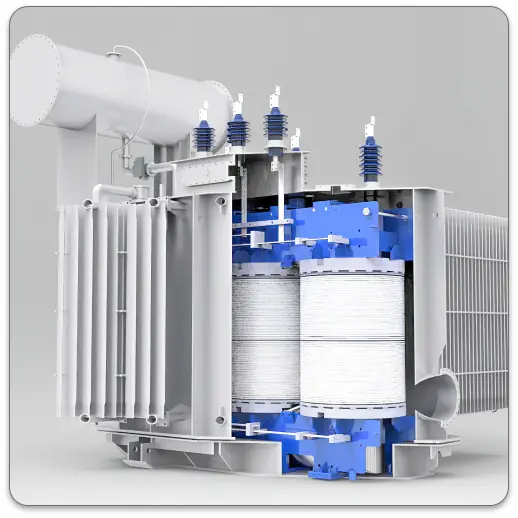

Applications

Transformers,Voltage Regulators, Reactors, Magnetic Amplifiers

Coating Type

T2 (Inorganic Insulation Coating)

Edge Type

Slit Edge

Characteristics

Thickness Density Guaranteed ValueP1.7/50 Guaranteed ValueB8 Guaranteed ValueP1.7/50 Guaranteed ValueB8 Stacking Factor

0.30 mm 7.65kg/dm3 ≤1.10 W/kg ≥1.88 T 1.05 W/kg 1.90 T >96%

Dimensions

Inner Diameter Guaranteed Thickness Deviation Standard Thickness Deviation Guaranteed Longitudinal Thickness Tolerance Standard Longitudinal Thickness Tolerance Guaranteed Transverse Thickness Tolerance Standard Transverse Thickness Tolerance Width Width Tolerance

508+12 mm ±0.025 ±0.010 ≤ 0.030 0.020 ≤ 0.020 0.010 900~1200 0~+1.5

Mechanical Properties

Tensile Strength(L) Yield Strength(L) Elongation(L) Hardness

345 MPa 321 MPa 11% 195

Coating Characteristics

Coating Thickness (Single Side) Interlayer Resistance Guarantee Value Interlayer Resistance Standard Value

3~5 μm > 30 Ω ·cm2 90 Ω ·cm2

Note

Recommend unpack after 36 hours of winter storage due to regional climate variations.

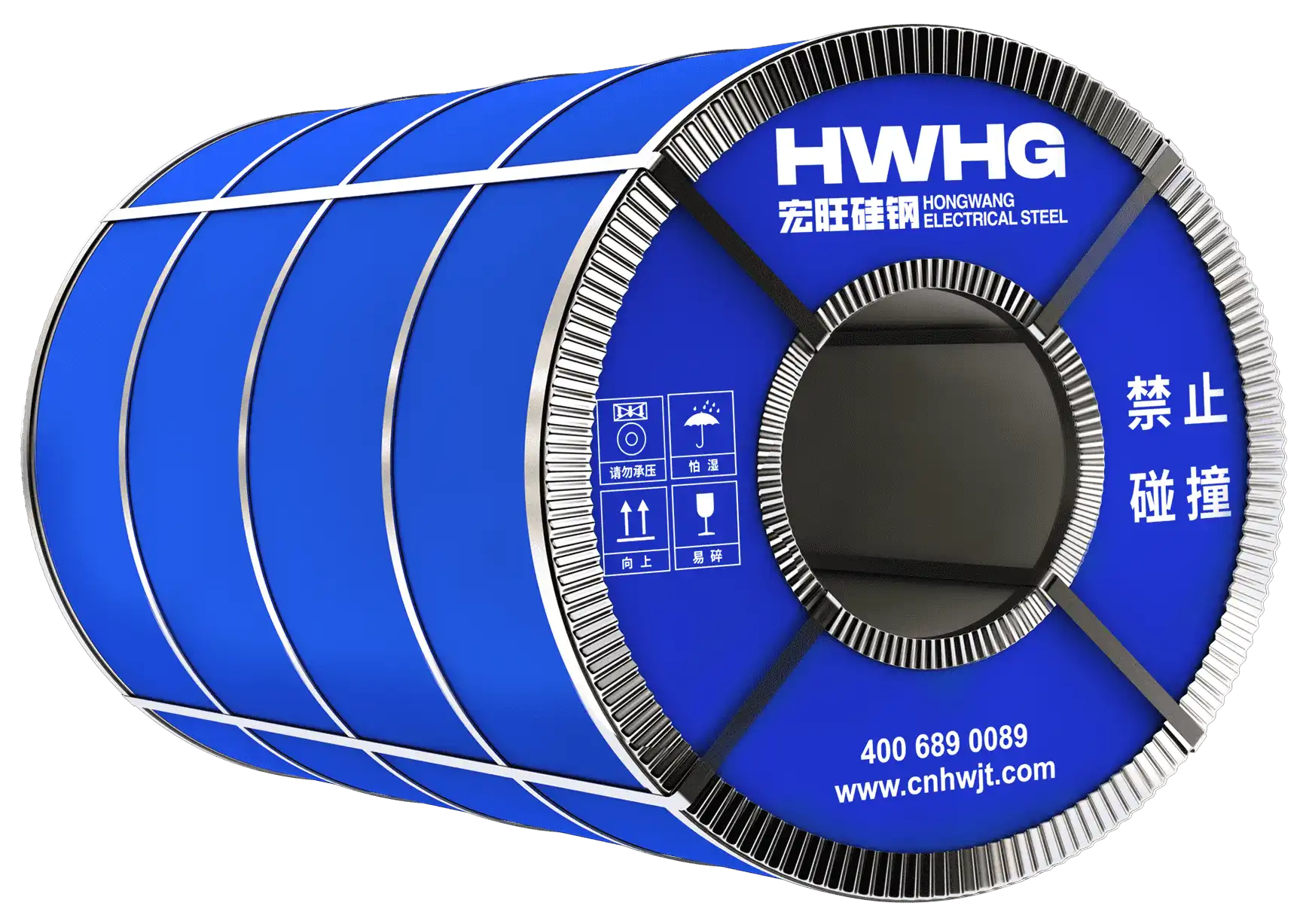

FINE PACKAGING:

To meet the requirements of long-distance customers and ensure the quality of product transportation and storage

1.inner and outer rust-proof paper
2.VCI film
3.inner and outer paper angle guard
4.inner and outer protection board
5.inner and outer angle guard
6.bale belt (radial 4, axial 3)

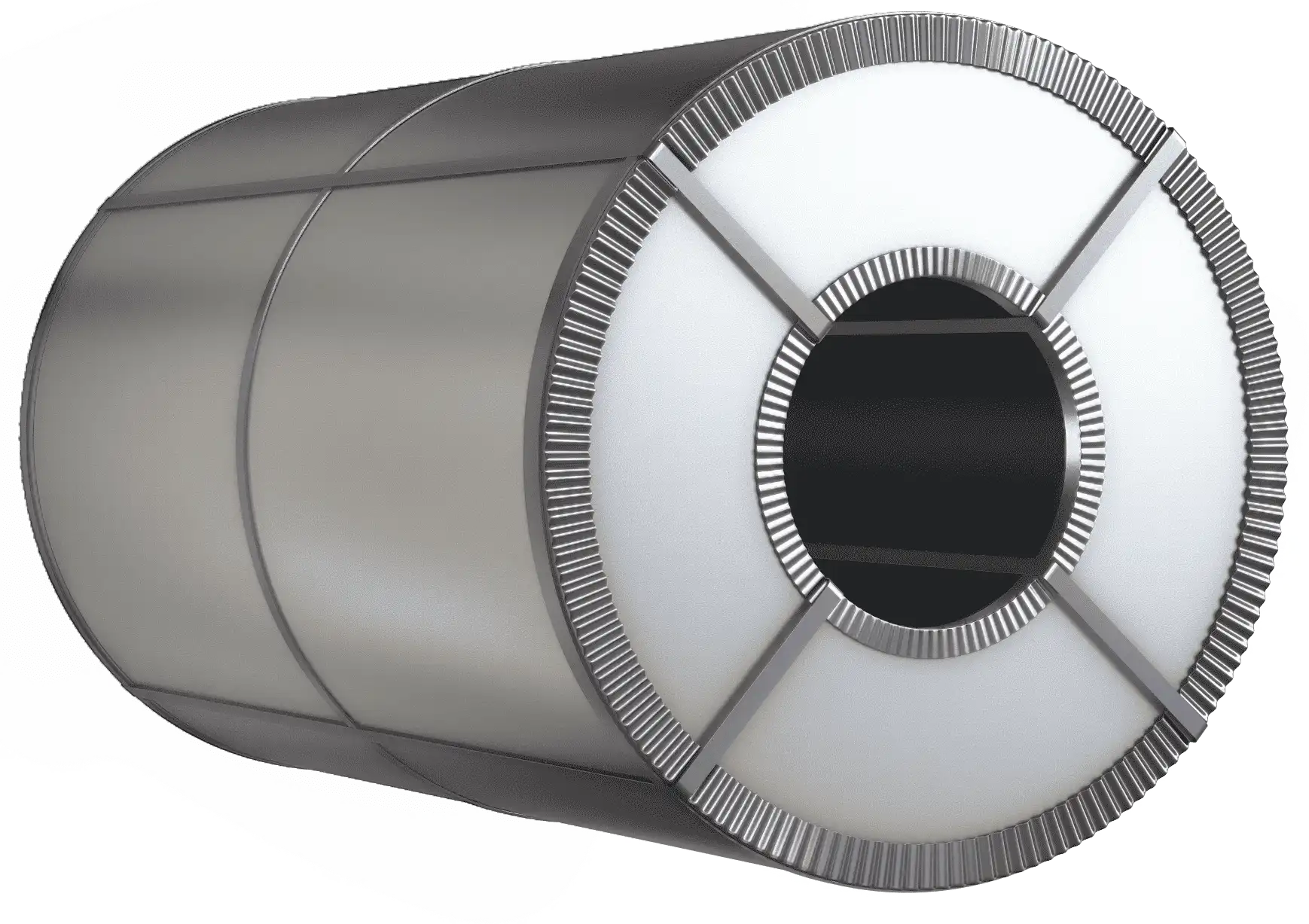

EXPORT PACKAGING:

To Meet the requirements of marine transportation to ensure the quality of product transportation and storage

1.inner and outer rust-proof paper
2.VCI film (strengthen rust-proof)
3.inner and outer paper angle guard
4.inner and outer protection board (strengthen rust-proof)
5.inner and outer angle guard
6.bale belt (radial 4, axial 3)

Product Standards

GB/T 2521.2 Cold-rolled electrical steel delivered in the fully-processed state—Part 2: Grain-oriented steel strip (sheet)

Testing Standards

GB/T 247 General rule of package, mark and certification for steel plates (sheets) and strips

GB/T 2522 Methods of test for the determination of coating insulation resistance and coating adhesion of electrical strip and sheet

GB/T 3655 Methods of measurement of the magnetic properties of electrical steel strip and sheet by means of an epstein frame

GB/T 8170 Rules of rounding off for numerical values & expression and judgement of limiting values

GB/T 13789 Methods of measurement of the magnetic properties of electrical steel strip and sheet by means of a single sheet tester

GB/T 19289 Methods of measurement of resistivity，density and stacking factor of electrical steel strip and sheet

GB/T 4340.1 Metallic materials—Vickers hardness test—Part 1: Test method

YB/T 4731 Reverse bend test method for electrical steel strip and sheet
