High-Performance NGO Electrical Steel for Motors, Generators and Electric Motor Laminations
We are a manufacturer of Non-Grain Oriented Electrical Steel (NGO / NOES), supplying electrical steel coils and slit strips for motors, generators and electric motor laminations. Our NGO silicon steel is designed to deliver reliable magnetic performance, consistent coating quality, good punching performance and stable supply for industrial and manufacturing applications.
Green Manufacturing and Sustainable Products
China's Top 500 Enterprise
Annual Production Capacity: 960,000 Tons of Electrical Steel
30+ Years of Expertise in Cold Rolled Manufacturing
Products Distributed in 160+ Countries and Regions

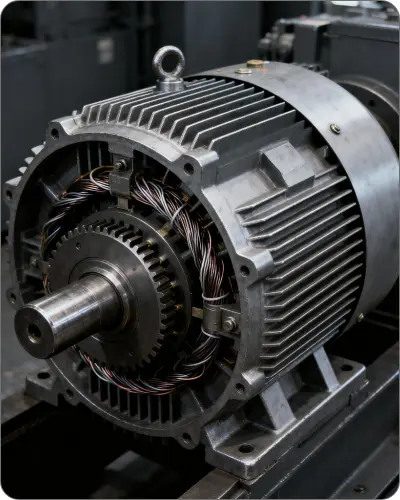

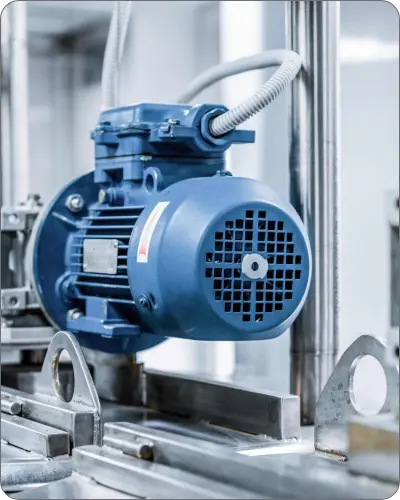

Non-grain-oriented electrical steel is widely used in motors and generators, where magnetic flux changes direction during operation and nearly isotropic magnetic properties are required. Compared with conventional steel, NGO electrical steel offers lower core loss, improved magnetic induction and better efficiency for motor and generator applications. It is an ideal material for industrial motors, EV motors, compressors, pumps, fans, household appliances and energy equipment.
Our NGO electrical steel is developed for customers who need stable quality, efficient processing and dependable performance in motor core manufacturing.
Stable magnetic performance for motors and generators
Good punching properties for lamination production
Consistent coating and surface condition
Reliable thickness and dimensional control
Suitable for high-efficiency motor applications
Manufacturer-based quality control and long-term supply support
As a manufacturing-oriented supplier, we provide more than basic material delivery. Our team supports customers with practical supply solutions for electrical steel processing and end-use applications. We understand the needs of motor manufacturers, lamination producers and industrial buyers. Our supply system is built to support stable production, consistent quality and reliable delivery for both domestic and overseas customers.
We supply a wide range of NGO electrical steel grades to match different efficiency levels, motor designs and manufacturing requirements. Depending on your application, our materials can be delivered in several supply forms for further processing and production.
Magnetic Properties & Technical Characteristics of Standard / High-Efficiency Non-Grain-Oriented Electrical Steel
| Type | Grade | Nominal Thickness (mm) | Max. Specific Total Loss P1.5/50 (W/kg) | Min. Magnetic Polarization J5000 (T) | Min. Stacking Factor (%) | Min. Bend Test (Times) | Conventional Density (kg/dm³) |
| Standard Type | H35W230 | 0.35 | 2.10 | 1.62 | 95 | 2 | 7.60 |
| H35W250 | 2.28 | 1.64 | 2 | 7.60 | |||
| H35W270 | 2.35 | 1.65 | 2 | 7.60 | |||
| H35W300 | 2.55 | 1.67 | 2 | 7.65 | |||
| High-Efficiency Type | H35WG440 | 0.35 | 2.80 | 1.71 | 95 | 5 | 7.75 |
| Standard Type | H35W440 | 0.35 | 3.00 | 1.69 | 95 | 3 | 7.70 |
| H50W350 | 0.50 | 2.80 | 1.68 | 97 | 2 | 7.65 | |
| High-Efficiency Type | H50WG470 | 0.50 | 3.00 | 1.71 | 97 | 5 | 7.70 |
| Standard Type | H50W470 | 0.50 | 3.20 | 1.68 | 97 | 10 | 7.70 |
| High-Efficiency Type | H50WG600 | 0.50 | 3.80 | 1.70 | 97 | 5 | 7.75 |
| Standard Type | H50W600 | 0.50 | 4.00 | 1.70 | 97 | 10 | 7.75 |
| H50W800 | 4.80 | 1.71 | 10 | 7.80 | |||
| H50W1300 | 5.50/5.8 | 1.73 | 10 | 7.85 |
Magnetic Properties & Technical Characteristics of Non-Grain-Oriented Electrical Steel for EV Drive Motors
| Type | Grade | Nominal Thickness (mm) | Max. Specific Total Loss P1.0/400 (W/kg) | Min. Magnetic Polarization J5000 (T) | Min. Stacking Factor (%) | Yield Strength (MPa) |
| Standard Type | H15AV1000 | 0.15 | 10 | 1.61 | 96 | 410 |
| H18AV1100 | 0.18 | 11 | 1.61 | 96 | 410 | |
| H20AV1200 | 0.20 | 12 | 1.61 | 96.5 | 410 | |
| H20AV1400 | 0.20 | 14 | 1.64 | 96.5 | 380 | |
| H25AV1300 | 0.25 | 13 | 1.63 | 97 | 410 | |
| H27AV1400 | 0.27 | 14 | 1.65 | 97 | 410 | |
| H30AV1500 | 0.30 | 15 | 1.66 | 97 | 410 | |
| H35AV1700 | 0.35 | 17 | 1.64 | 97 | 410 | |
| H35AV1900 | 0.35 | 19 | 1.66 | 97 | 350 | |
| High-Efficiency Type | H15AVG1000 | 0.15 | 10 | 1.64 | 96 | 410 |
| H18AVG1100 | 0.18 | 11 | 1.64 | 96 | 410 | |
| H20AVG1200 | 0.20 | 12 | 1.65 | 96.5 | 410 | |
| H25AVG1300 | 0.25 | 13 | 1.65 | 97 | 410 | |
| H27AVG1400 | 0.27 | 14 | 1.65 | 97 | 410 | |
| H30AVG1500 | 0.30 | 15 | 1.66 | 97 | 410 | |
| H35AVG1700 | 0.35 | 17 | 1.66 | 97 | 410 | |
| H35AVG1900 | 0.35 | 19 | 1.67 | 97 | 350 | |
| H15AVG1000Z | 0.15 | 10 | 1.65 | 92 | 400 | |
| H18AVG1100Z | 0.18 | 11 | 1.65 | 92 | 400 | |
| H20AVG1200Z | 0.20 | 12 | 1.66 | 94 | 410 | |
| H25AVG1250Z | 0.25 | 12.5 | 1.66 | 95 | 410 | |
| H27AVG1300Z | 0.25 | 13 | 1.66 | 95 | 410 | |
| High-Strength & Low-Loss Type | H15AVH1000 | 0.15 | 10 | 1.61 | 96 | 450 |
| H18AVH1100 | 0.18 | 11 | 1.61 | 96 | 450 | |
| H20AVH1200 | 0.20 | 12 | 1.61 | 96.5 | 450 | |
| H25AVH1300 | 0.25 | 13 | 1.62 | 97 | 450 | |
| H27AVH1400 | 0.27 | 14 | 1.62 | 97 | 450 | |
| H30AVH1500 | 0.30 | 15 | 1.63 | 97 | 450 | |
| High-Yield-Strength Type | H35AVQ500 | 0.35 | 30 | 1.62 | 97 | 500 |
| H35AVQ550 | 0.35 | 35 | 1.61 | 97 | 550 | |
| H35AVQ600 | 0.35 | 45 | 1.58 | 97 | 600 | |
| H35AVQ900 | 0.35 | 65 | 1.51 | 97 | 900 |

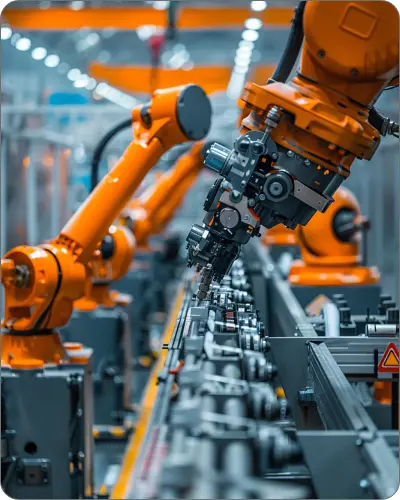

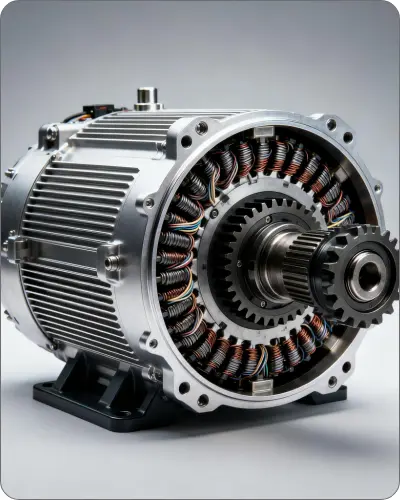

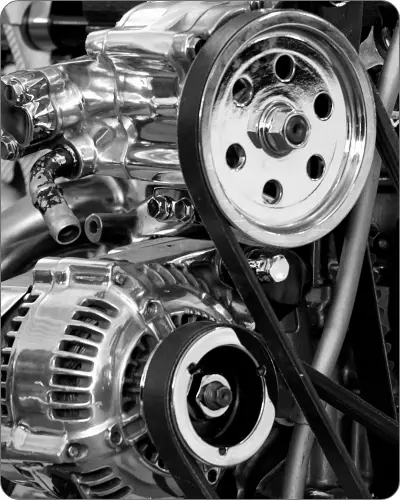

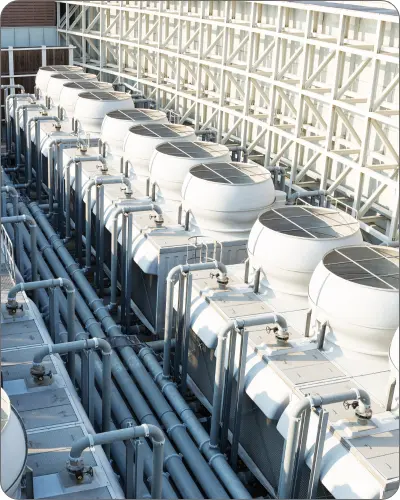

Our Non-Grain Oriented Electrical Steel is used across a wide range of electrical and industrial sectors. With balanced magnetic properties in all directions, NGO electrical steel is the preferred material for rotating machines and motor core applications. It is especially suitable for customers seeking efficiency, durability and manufacturing consistency in electrical equipment production.

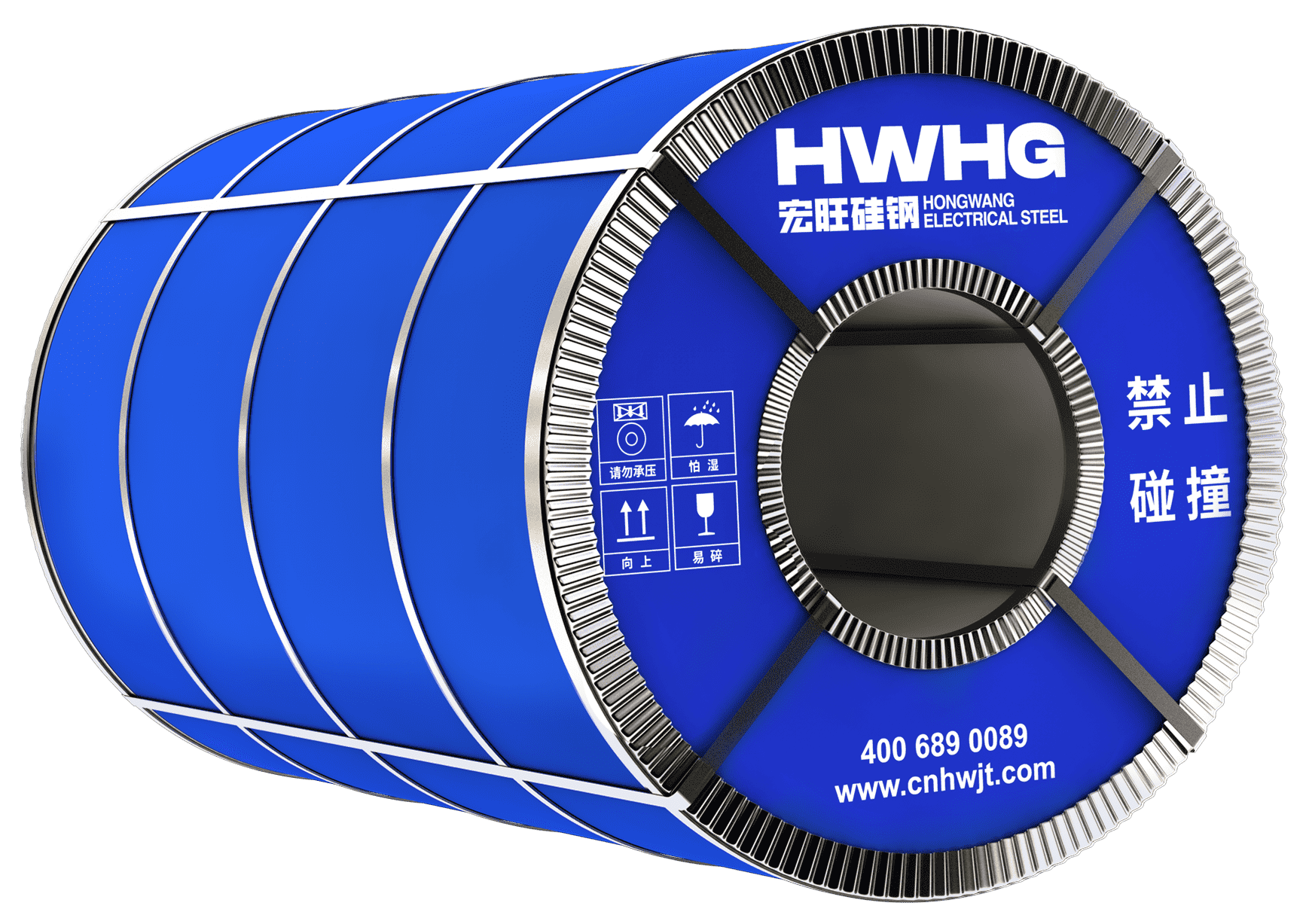

Designed to meet long-distance requirements, ensuring product integrity during transit and storage.
1. Inner & outer VCI (vapor corrosion inhibitor) paper
2. PP film wrapping
3. Inner & outer paper edge protectors
4. Inner & outer PE protective boards
5. PE side protective boards
6. Inner & outer protective corner guards
7. Strapping (4 radial straps, 3 axial straps)

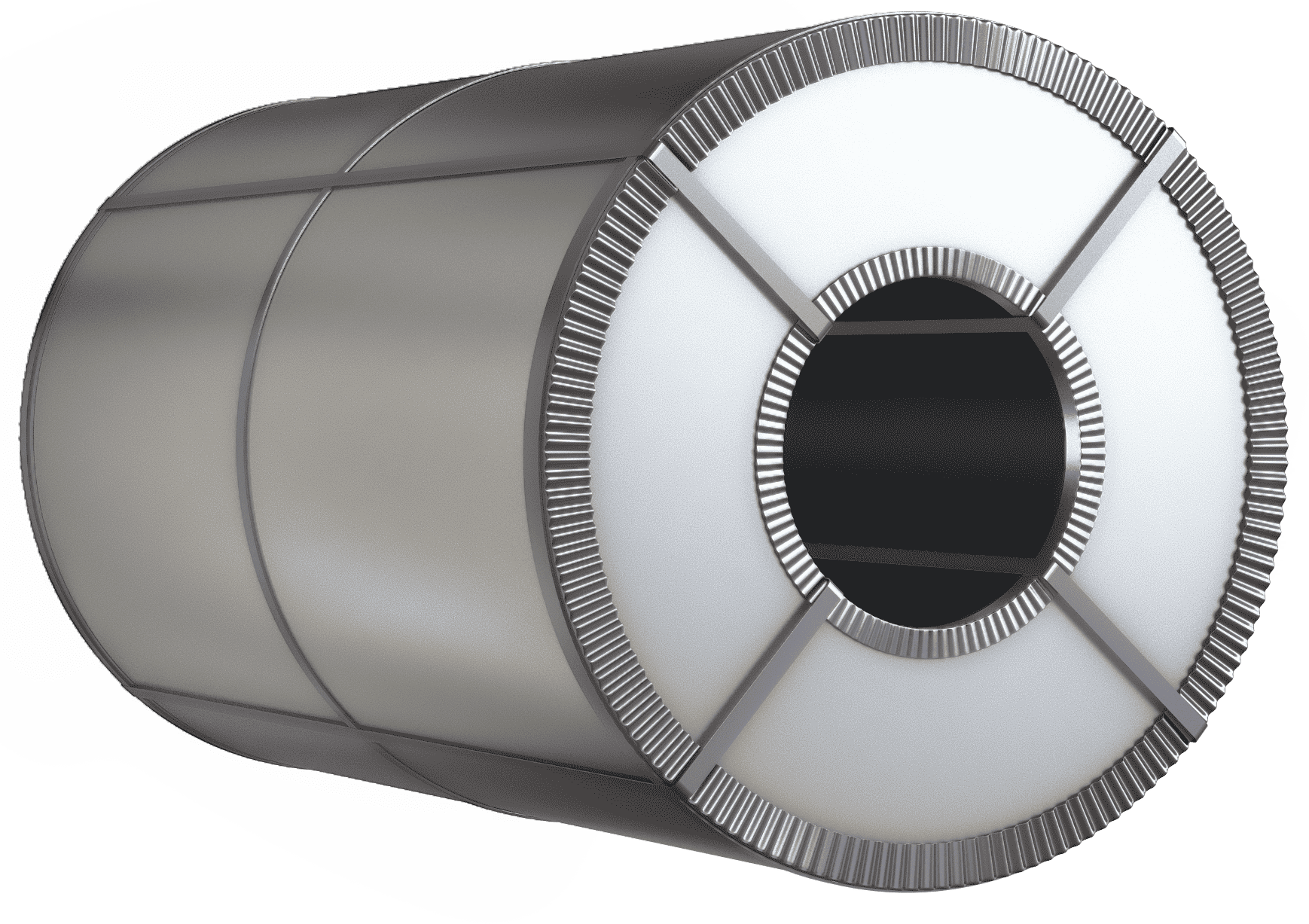

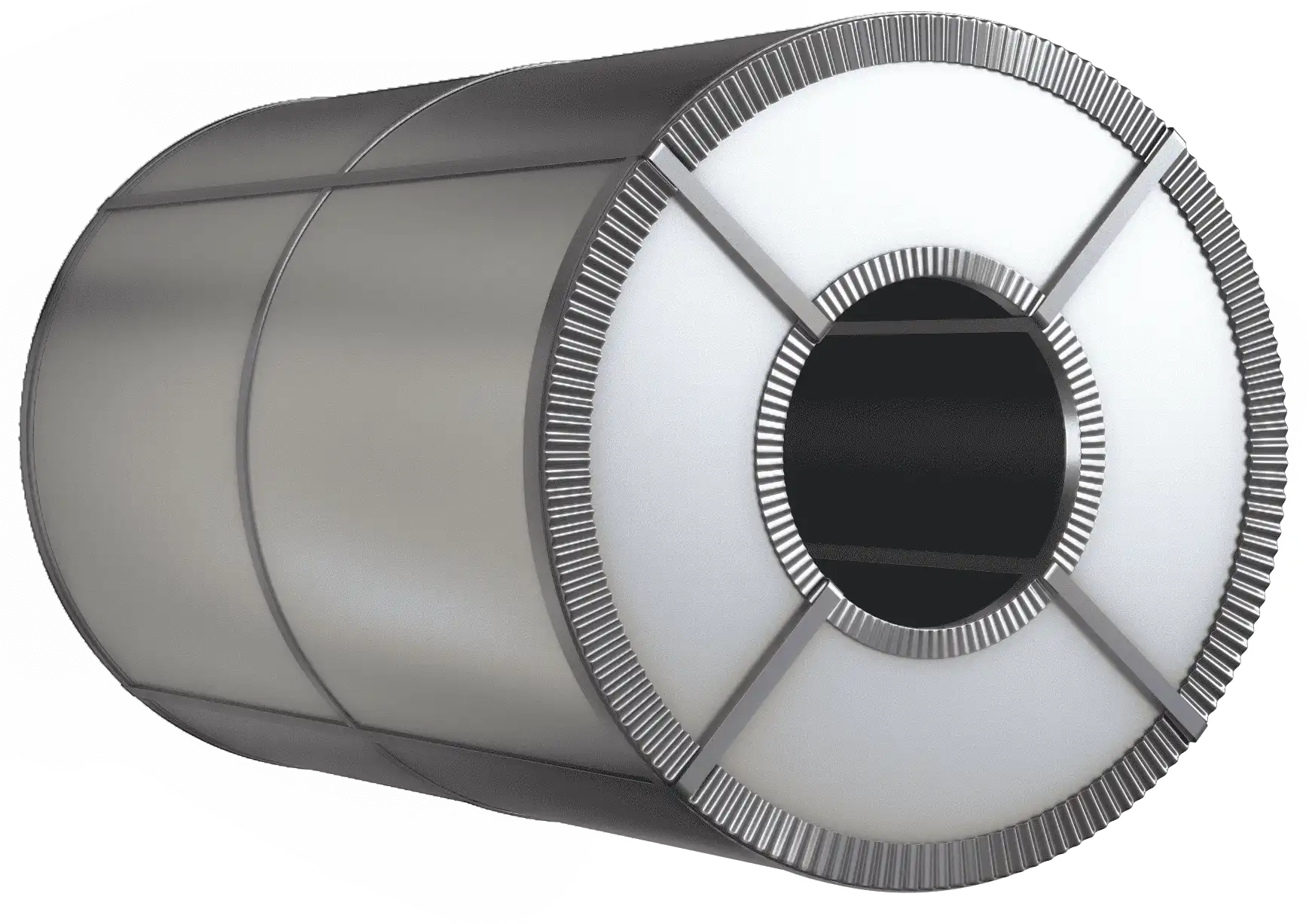

Designed to meet sea freight requirements, ensuring product integrity during transit and storage.
1. Inner & outer VCI (vapor corrosion inhibitor) paper
2. PP film wrapping
3. Inner & outer paper edge protectors
4. Inner & outer PE protective boards
5. PE side protective boards
6. Inner & outer galvanized protective boards
7. Galvanized side protective boards
8. Inner & outer protective corner guards
9. Strapping (4 radial straps, 3 axial straps)
Our Grain Oriented Electrical Steel products can be supplied in accordance with relevant product standards for transformer core materials and cold-rolled grain oriented electrical steel.
Cold-rolled electrical steel delivered in the fully-processed state—Part 1 Non-oriented steel strip (sheet)
Testing support may include evaluation of magnetic properties, mechanical properties, coating characteristics, insulation resistance, hardness and related quality control parameters according to project requirements.
Rules of rounding off for numerical values & expression and judgement of limiting values
Methods of test for the determination of coating insulation resistance and coating adhesion of electrical strip and sheet
General rule of package, mark and certification for steel plates (sheets) and strips
Metallic materials—Tensile testing—Part 1: Method of test at room temperature
Metallic materials—Vickers hardness test—Part 1: Test method
Methods of measurement of the magnetic properties of electrical steel strip and sheet by means of an epstein frame
Reverse bend test method for electrical steel strip and sheet
Methods of measurement of resistivity，density and stacking factor of electrical steel strip and sheet
Cold-rolled non-oriented electrical steel strip（sheet）for electric vehicle driving motor
Quality assurance is integrated into every stage of material supply and processing. We support industrial customers with production-oriented quality control, documentation and traceability for GOES and transformer lamination projects.
Yes. We can support application-based requests related to supply form, packaging and production needs.
Yes. Our NGO electrical steel is suitable for rotor, stator laminations and motor core lamination applications.
Yes. We can supply NGO electrical steel in coil and slit strip depending on your production requirements.
Non-Grain Oriented Electrical Steel is an electrical steel material with magnetic properties distributed in multiple directions, making it suitable for motors, generators and rotating equipment.
Looking for a reliable manufacturer of Non-Grain Oriented Electrical Steel for motors, generators or electric motor laminations? Contact us for grade selection, supply options, packaging details and project support.
