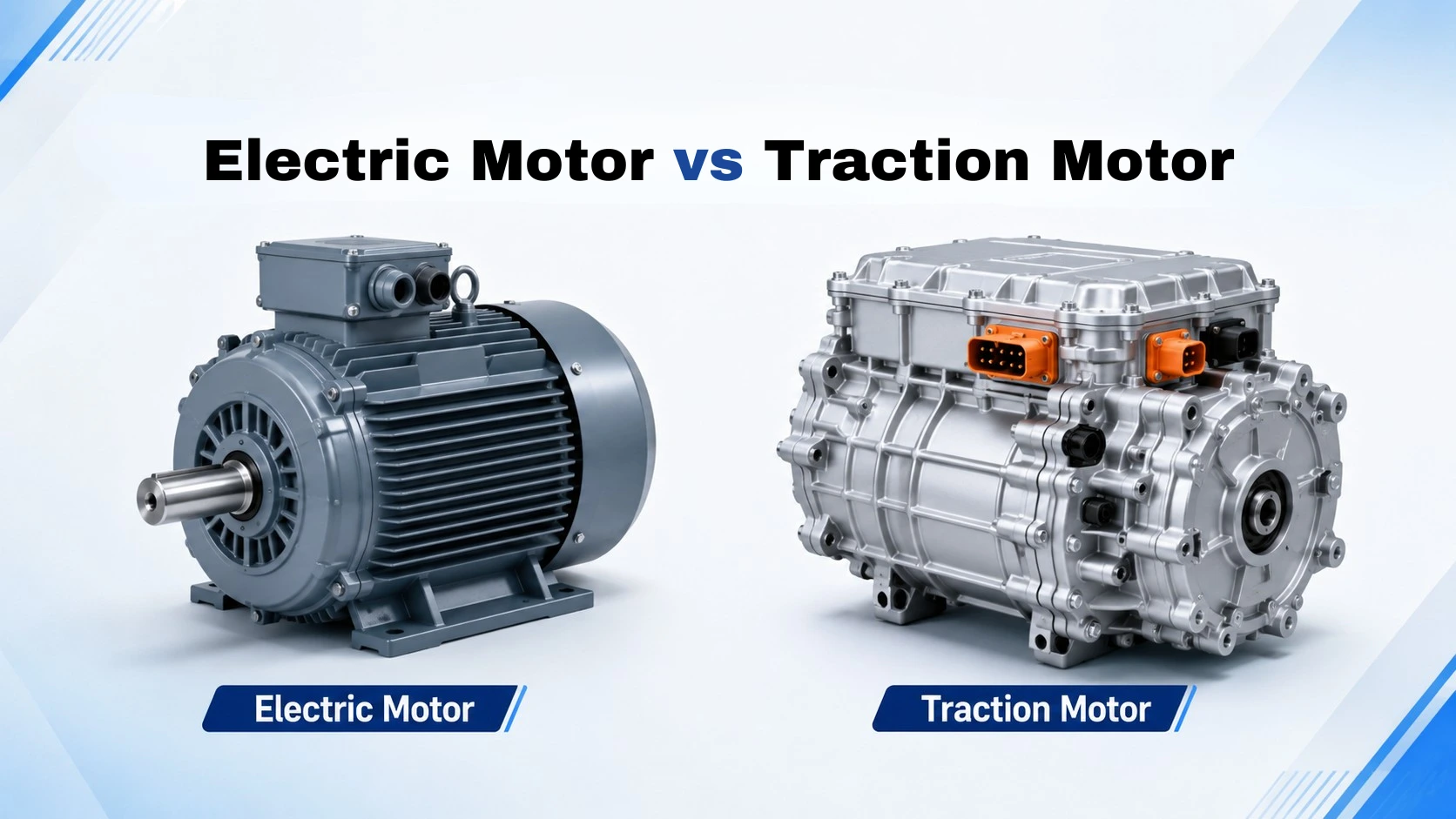

A traction motor is an electric motor built for vehicle propulsion. It follows the same electromagnetic principles as motors used in pumps, fans, and industrial equipment, but it has to work under far more variable conditions.

Key Takeaways

Definition: Every traction motor is an electric motor, but not every electric motor is designed for traction. A traction motor delivers torque to a vehicle drivetrain, while general-purpose motors may drive pumps, fans, compressors, conveyors, or household appliances.
Application: A traction motor may move from repeated starts in city traffic to sustained high-speed operation on a highway within the same trip. Many industrial motors, by comparison, spend most of their operating time near a known speed and load.
Performance: An EV traction motor must produce high torque from zero speed, which places a heavy current load on the inverter and windings during launch. It also has to remain efficient across a wider torque and speed range than a typical fixed-duty industrial motor, making heat removal more difficult.
Materials: EV motor designers use thin electrical-steel laminations, high-fill copper windings, and, in some designs, high-grade rare-earth magnets to reduce losses and increase power density. These materials are not unique to electric vehicles, but traction motors often use them more aggressively because space and weight are limited.

What Makes a Traction Motor Different?

A traction motor does not rely on a separate operating principle. Its design changes because the vehicle continually changes speed, load, and direction of power flow.

General-Purpose Electric Motors

General-purpose electric motors run household appliances as well as pumps, compressors, fans, and conveyors. In many of these applications, engineers already know the expected load, operating speed, and daily duty cycle.

That makes it possible to optimize the motor around a fairly narrow operating range. Reliability, service life, efficiency at the target duty point, and cost usually matter more than maximum power density.

Traction Motors

A traction motor sends torque through the drivetrain to the wheels or axles. The term covers more than passenger EVs; trains, trams, buses, construction vehicles, and electric mining equipment also use traction motors.

How Their Operating Conditions Differ

A pump or fan motor may run for hours near the same speed and load. Engineers can size the windings, cooling system, and bearings around that expected duty point.

An EV motor does not get that level of consistency. It may launch the vehicle from rest, respond to a sudden acceleration request, cruise at high motor speed, and then hold a heavy load while climbing a long gradient.

During deceleration, the same machine may operate as a generator, with the traction inverter controlling regenerative braking and returning energy to the battery.

1785737892028-02-Fixed-Duty Electric Motor vs EV Traction Motor.webp

Difference between EV traction motor and fixed-duty industrial motor operating conditions

Common operating conditions include:

Repeated starts in urban traffic
Fast torque changes during merging or overtaking
Long periods at higher motor speeds
Sustained torque on steep gradients
Regenerative braking during deceleration

Torque Range, Motor Speed, and Heat

A traction motor needs strong launch torque at zero or low speed, good efficiency during steady cruising, and enough high-speed capability to avoid an oversized gearbox.

1785737904414-EV Traction Motor Torque Speed and Heat Control.webp

EV traction motor torque speed range and thermal management challenges

Some EV traction motors run near or above 20,000 rpm. The usable limit depends on the rotor design, bearings, inverter, gearbox, and vehicle platform.

A higher maximum speed can reduce motor size, but it also raises rotor stress, bearing demands, switching losses, and core losses. Maximum rpm alone is therefore not a useful measure of motor quality.

Heat becomes a limiting factor during repeated acceleration and sustained high-load operation. High current increases copper loss in the windings, while higher electrical frequency raises losses in the steel core. Bearings, magnets, and the rotor can also face additional thermal stress at high speed.

For this reason, many high-output traction motors use water-glycol jackets, direct oil cooling, or oil-cooled windings. An external fan works well for many industrial motors, but it may not remove heat quickly enough from a tightly packaged EV drive unit.

Feature	Typical EV Traction Motor	Typical Fixed-Duty Industrial Motor
Primary goal	Propulsion under changing speed and load	Reliable operation near a defined duty point
Low-speed torque	High torque from standstill	Depends on the application and drive system
Speed range	Wide, sometimes reaching very high rpm	Often narrower, though variable-speed designs are common
Power density	High because weight and space are limited	Usually a lower design priority
Cooling	Often liquid- or oil-cooled	Air cooling is common
Duty profile	Frequent changes in load, speed, and power flow	Often continuous or based on a defined operating cycle

Why EV Motors Use Different Material Grades

Most materials used in EV motors also appear in other electric machines. For motor cores, HWHG supplies non-grain-oriented electrical steel in thin, low-loss and higher-strength grades for EV stator and rotor laminations.


HWHG non-oriented electrical steel grades for EV traction motor stator and rotor laminations

Permanent-magnet traction motors often use neodymium-iron-boron magnets because their magnetic strength supports a compact, power-dense rotor. Induction motors and switched-reluctance motors do not require permanent magnets, but they involve different trade-offs in efficiency, control, noise, and rotor design.

EV motors also commonly use high-slot-fill copper windings and thin electrical-steel laminations. More copper in the available slot area reduces winding resistance, while thinner insulated laminations limit eddy-current losses at higher electrical frequencies.

Conclusion

When comparing motors for a vehicle, do not judge them only by peak power or maximum rpm. Check the full torque-speed curve, continuous rating, cooling method, inverter limits, efficiency map, and expected duty cycle. A motor that looks strong on a specification sheet may still overheat or lose efficiency if those conditions do not match the vehicle.
