Two EVs with similar battery capacities and power figures may still feel different in everyday use. One may use less energy during city commuting, while another may feel more comfortable delivering power at highway speeds.

Motor design is part of the reason. It shapes how efficiently the drive system uses energy and how the car delivers power in different driving conditions.

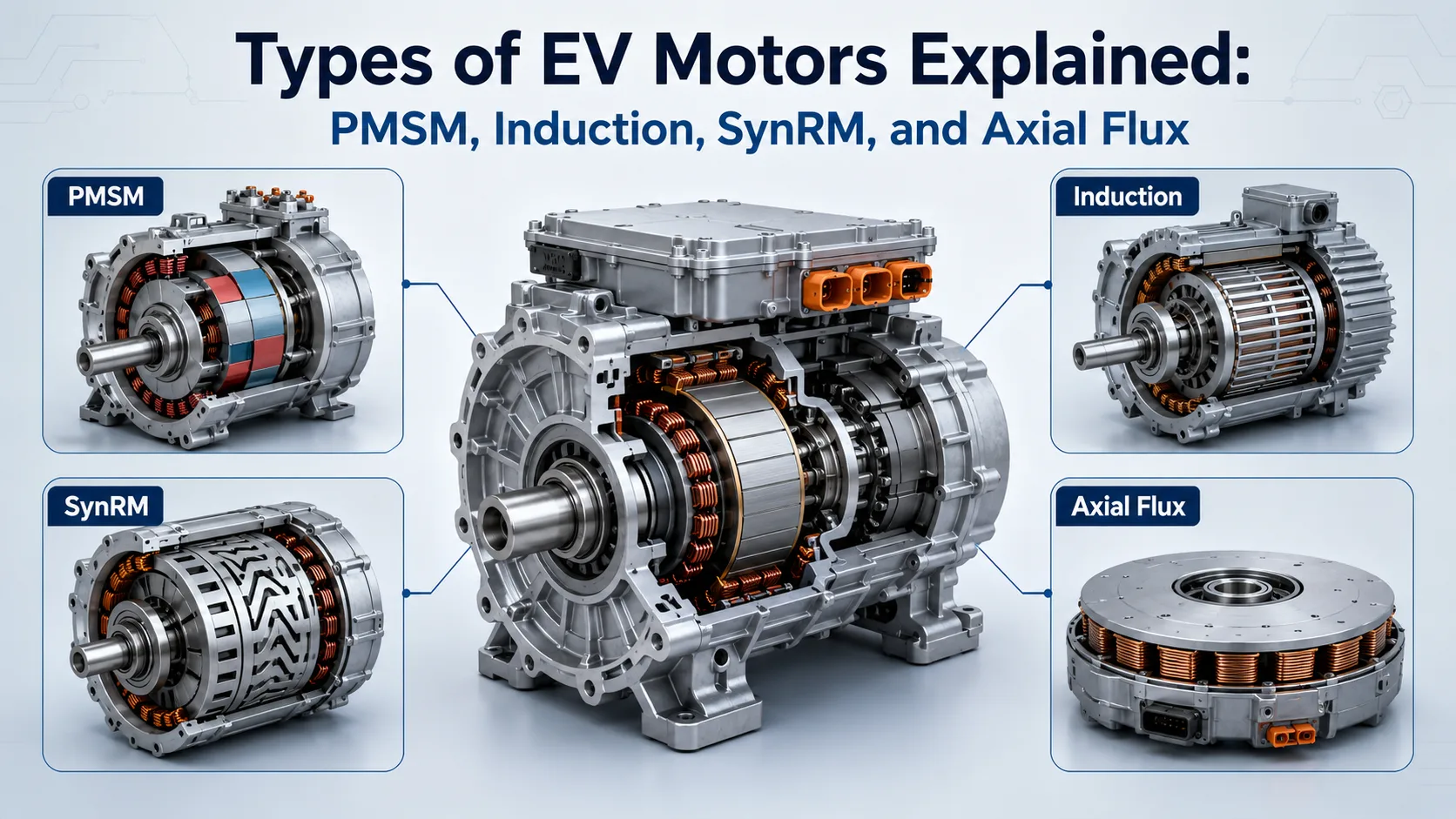

The main EV motor types are permanent magnet synchronous motors, AC induction motors, synchronous reluctance motors, and axial flux motors. Each uses a different approach to produce torque, with its own advantages and trade-offs.

Quick Answer

A permanent magnet synchronous motor, or PMSM, is widely used because it combines high efficiency with strong power density. It can produce substantial power from a compact package, although it usually depends on permanent magnets that may contain costly rare-earth materials.

An AC induction motor does not need permanent magnets. Its rotor is relatively simple and mechanically robust, but it can produce more rotor heat and may be less efficient than a well-designed PMSM during light-load driving.

A synchronous reluctance motor, or SynRM, can also operate without rotor magnets. It offers good efficiency potential, but rotor design, control software, vibration, and noise require careful engineering.

An axial flux motor uses a short, disc-shaped layout that can deliver high torque and power density. Its compact shape is attractive for performance vehicles, but manufacturing, cooling, and cost still limit widespread use.

Motor type	Main strength	Main limitation
PMSM	High efficiency and compact size	Magnet cost and supply exposure
AC induction	No permanent magnets; proven design	Higher rotor losses in some conditions
SynRM	Magnet-free rotor and good efficiency potential	Complex control and noise management
Axial flux	High torque density in a short package	Manufacturing and cooling challenges

1785737525148-EV Motor Type Comparison.webp

Comparison of PMSM induction SynRM and axial flux electric motor advantages and limitations

Permanent Magnet Synchronous Motors

A permanent magnet synchronous motor uses magnets in or on the rotor. The inverter sends AC through the stator windings, creating a rotating magnetic field. The rotor turns at the same speed as that field, which is why the motor is called “synchronous.”

Because the magnets already provide the rotor field, a PMSM does not need to induce current in the rotor to create its main magnetic field. Compared with an induction motor, this removes an important source of rotor loss and helps improve efficiency during everyday driving.

The same design can also deliver substantial output from a relatively compact drive unit. Packaging space is limited in an EV, where the motor must fit around the battery, suspension, crash structure, and passenger compartment.

The main drawback lies in the magnet system. High-performance magnets increase material costs, often rely on rare-earth elements, and can lose performance if rotor temperatures are not properly controlled.

Many automotive PMSMs use an internal permanent magnet layout, with the magnets embedded inside shaped sections of the rotor. The rotor geometry can produce reluctance torque alongside magnet torque.

Tesla also provides a practical example of mixing motor types within one vehicle. Some Model 3 and Model Y all-wheel-drive configurations use a permanent magnet motor at the rear and an induction motor at the front. Such a layout gives the control system more flexibility to balance efficient driving with additional traction and power when needed.

AC Induction Motors

AC induction motors are less common as the sole drive motor in efficiency-focused EVs, but they still have a useful role in dual-motor systems.

Instead of permanent magnets, the rotor usually contains aluminum or copper bars arranged in a squirrel-cage structure. The stator creates a rotating magnetic field, which induces current in those bars. The resulting rotor field interacts with the stator field to produce torque.

For induction to continue, the rotor must turn slightly slower than the rotating stator field. This speed difference is known as slip.

The magnet-free rotor is mechanically robust and avoids the cost and supply risks associated with rare-earth materials. The design is also well established, with decades of use in industrial equipment and a long history in production EVs.

Its main efficiency penalty comes from the current induced in the rotor. That current generates heat, while the stator must continue supplying the magnetic field needed for torque. The difference is most noticeable during steady, low-load driving, when the vehicle needs relatively little power.

This is one reason induction motors often work better as secondary drive units than as the primary motor in an efficiency-focused EV. The Audi Q6 e-tron quattro, for example, uses a permanent magnet motor at the rear and an induction motor at the front. The rear motor handles most routine driving, while the front unit adds traction and power when required.

For a broader comparison of these two motor types in automotive applications, see SAE International’s overview of permanent-magnet and induction traction motors.

Synchronous Reluctance Motors

SynRM is attractive when manufacturers want to reduce or eliminate permanent magnets without accepting the rotor losses of an induction motor. The difficulty is turning that material advantage into a quiet, durable automotive drive unit.

In a pure synchronous reluctance motor, the rotor contains no permanent magnets, windings, or squirrel cage. It consists mainly of laminated steel shaped with carefully positioned air barriers.

Magnetic flux passes more easily through steel than through air. As the stator field rotates, the rotor aligns itself with the path of lowest magnetic resistance and remains synchronized with the field. Torque is produced without induced rotor current or a permanent magnet field.

This removes rotor copper losses and reduces exposure to rare-earth material costs. In practice, however, the rotor geometry leaves little room for error.

Small changes in the width, angle, or position of the flux barriers can affect torque, efficiency, mechanical strength, and noise. A geometry that increases torque may also increase torque ripple, which can be felt as vibration or heard as a higher-pitched motor tone.

For automotive use, this is the main engineering challenge. A SynRM is not valuable simply because it is magnet-free; it must also maintain acceptable noise, durability, and performance across a wide speed range.

Some designs add small permanent magnets to improve torque and extend the usable operating range. These permanent-magnet-assisted SynRMs reduce magnet content, but they are not fully magnet-free.

Axial Flux Motors

Most EVs still use radial flux motors, where magnetic flux moves inward or outward around the shaft. Axial flux motors turn that layout sideways. Their rotors and stators look more like discs than cylinders, producing a motor that is wide but unusually short.

That shape is where much of the interest comes from. With torque produced farther from the center of rotation, an axial flux motor can deliver strong output without taking up much depth. In some designs, shorter winding paths also reduce copper use and make it easier to remove heat from the windings.

The compact shape does not make the motor simple to build. Keeping a precise air gap across a wide disc is difficult, especially once heat, vibration, and high rotational speed enter the picture. Manufacturing methods developed for conventional radial motors do not always transfer neatly.

E-Mobility Engineering’s detailed feature on axial flux motors examines the design choices, cooling requirements, packaging benefits, and integration challenges in greater depth.

YASA has pushed the design furthest into automotive use. Mercedes-Benz acquired the company in 2021 for its high-performance electric programs, where a thinner, lighter motor can free up space without giving up power density.

1785737528515-EV Motor Architecture Comparison.webp

Internal structure comparison of PMSM induction SynRM and axial flux EV motors

Why the Complete Drive Unit Matters

The motor determines how torque is produced, but the complete drive unit determines how that torque is delivered and sustained.

Inverter calibration controls how current reaches the motor. Cooling limits how long the system can maintain high output, while the reduction gear affects the speed and torque delivered to the wheels. Vehicle weight, tire choice, aerodynamics, and software calibration add further differences.

As a result, two PMSMs with similar peak-power ratings may perform differently after several hard accelerations. One may reduce output earlier because of thermal limits, even though both vehicles advertise similar headline figures.

How EV Drive Systems Are Changing

Motor development is moving in several directions at once. Manufacturers and suppliers are reducing rare-earth content, testing magnet-free designs, and developing ways to recover magnetic materials from used motors.

The motor architecture may change, but most EV traction designs still need a stable magnetic core to carry changing magnetic flux and keep core losses under control. This is where non-grain-oriented electrical steel becomes important. HWHG’s NGOES grades are developed for motor laminations and EV drive applications.

HWHG NGOES for EV Motor Cores

HWHG non-oriented electrical steel for EV motor stator and rotor laminations

The hardware around the motor is changing too. An 800-volt architecture can deliver the same power with less current than a 400-volt system, reducing some electrical losses and allowing lighter cabling. It does not make the motor itself efficient by default.

Integrated e-axles bring the motor, inverter, and reduction gear into one compact drive unit. Instead of optimizing each component separately, engineers can design the packaging, cooling, and controls around the unit as a whole.

What EV Buyers Should Check

For most buyers, the motor type should come after the vehicle-level results.

Start with tested energy consumption, usable battery capacity, real-world range, charging performance, and warranty coverage. These figures show how the complete vehicle performs, rather than how one component works in theory.

Next, confirm the exact trim. Rear-wheel-drive and all-wheel-drive versions may use different motor combinations, and manufacturers sometimes change suppliers or drive-unit configurations during a model’s production cycle.

Performance buyers should look beyond peak power. Continuous output, thermal behavior, and repeated-acceleration tests show whether the drive unit can maintain its performance after heat begins to build.

The practical order is simple: compare the vehicle’s tested results first, confirm the hardware used in the specific trim, and then use the motor type to understand why it behaves that way.

For motor designers and manufacturers, material selection is another part of the efficiency equation. Explore HWHG NGOES to review available grades for motor laminations and discuss the magnetic, thickness, coating, and processing requirements of your application.
