Lower core loss usually comes at a price. A transformer may use a higher-grade electrical steel, an amorphous core, or a more demanding core design, all of which can increase the initial quotation. The question is whether the reduction in no-load loss will save enough electricity to recover that extra cost during the transformer’s service life.

The comparison should be based on guaranteed no-load and load-loss values, together with the site’s energized hours, electricity tariff, and load profile. A material name or efficiency label alone does not show which option will cost less over time.

Quick Answer

The higher price is easier to justify when the transformer:

Remains energized for most of the year
Runs at a low or variable average load
Operates at a site with a relatively high electricity tariff
Will stay in service beyond the expected payback period

Start with a simple payback check:

Simple payback period = Additional purchase cost ÷ Annual energy-cost savings

If the payback period is longer than the expected ownership period, the premium is difficult to justify. For fleet purchases or high-value units, run an NPV calculation before approval.

Why Low-Core-Loss Transformers Cost More

Much of the added cost comes from the core material and the extra handling required during manufacturing.

Many standard transformers use grain-oriented electrical steel. Some low-loss designs use amorphous metal, which can reduce no-load loss but is thinner, more brittle, and more difficult to handle during production.

HWHG supplies both grain-oriented electrical steel and amorphous ribbon, allowing transformer manufacturers to compare the two material routes against the required loss target, dimensions, and processing method.

Do not assume that an amorphous-metal core automatically means lower lifetime cost. Compare the guaranteed loss figures in the quotation.

A lower no-load-loss figure may come with a larger enclosure, higher shipping weight, different sound performance, or a longer lead time. Check the temperature rise and impedance first, then confirm that the size, weight, and lead time still work for the project.

Core Loss and Load Loss

Core loss is present whenever the transformer is energized, while load loss increases as current flows through the windings. ENERGY STAR’s discussion of distribution transformer energy waste also notes that the savings from lower-loss designs depend on the transformer’s load factor and output power.

Feature	Core Loss, or No-Load Loss	Load Loss
When it occurs	Whenever the transformer is energized	When the transformer carries load
Relationship to load	Largely independent of load	Rises approximately with the square of current
Main cause	Magnetic losses in the core	Winding resistance, plus stray and eddy-current losses
Usually matters more in	Lightly loaded or continuously energized applications	Heavily loaded applications
Reduced mainly by	Core material and magnetic design	Conductor and winding design

1785486891032-Transformer Core Loss vs Load Loss Explained.webp

Difference between transformer core loss and load loss in transformer operation

If the transformer spends most of its time lightly loaded, no-load loss deserves more weight in the comparison. If it operates near rated load for several hours a day, check the load-loss figure before paying extra for a lower-loss core.

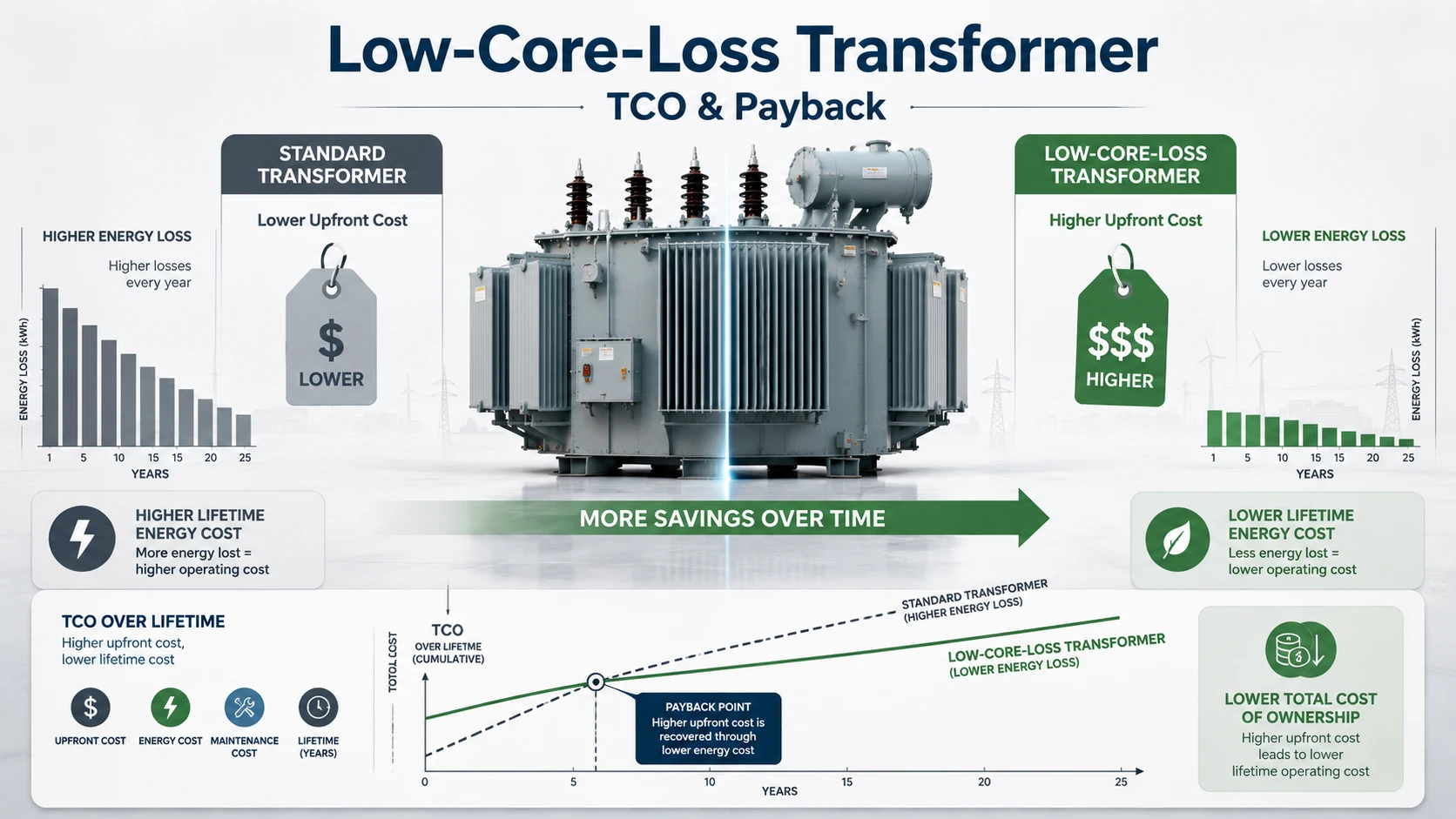

Comparing Total Cost of Ownership

For long-service installations, the bid price tells only part of the cost story. The U.S. The Department of Energy’s guidance on life-cycle costs for acquisition recommends looking beyond the initial purchase price to energy, maintenance, repair, replacement, and disposal costs over the product’s useful life.

For a first quotation comparison, use:

TCO = Purchase price + Lifetime core-loss cost + Lifetime load-loss cost

1785486886474-Transformer TCO and Payback Calculation.webp

Transformer total cost of ownership and payback period calculation diagram

Add installation, financing, maintenance, or site-modification costs when they differ between the options.

Calculate core-loss cost as:

Core-loss cost = Core loss in kW × Annual energized hours × Service life × Electricity price per kWh

A transformer that stays online all year operates for about 8,760 hours.

Do not multiply full-load loss by 8,760 hours unless the unit actually runs near rated load all year. Use interval data or several representative load points where possible.

An average load of 40% is not enough for an accurate calculation. The unit may run steadily at 40%, or sit nearly idle for hours before operating close to full load.

Simple Payback Example

Assume the two transformers have similar load-loss values, so the comparison focuses on no-load loss.

Standard transformer no-load loss: 0.50 kW
Low-loss transformer no-load loss: 0.15 kW
Annual energized hours: 8,760
Electricity price: $0.12 per kWh

No-load-loss difference:

0.50 kW − 0.15 kW = 0.35 kW

Annual energy saving:

0.35 kW × 8,760 hours = 3,066 kWh

Annual cost saving:

3,066 kWh × $0.12 = $367.92

Assume the standard transformer costs $10,000 and the low-loss model costs $11,500.

Price premium:

$11,500 − $10,000 = $1,500

Simple payback:

$1,500 ÷ $367.92 = 4.08 years

At $0.12 per kWh and 8,760 energized hours, the extra $1,500 is recovered in about 4.1 years. If the tariff and operating schedule remain unchanged, the unit saves about $368 in each following year.

When a Low-Core-Loss Transformer Makes Sense

A lower core-loss figure has the greatest financial effect when the transformer stays online for long periods at a light load.

Use the electricity rate actually paid at the installation site, including any peak and off-peak pricing. A general market average may overstate or understate the annual energy savings and produce an inaccurate payback period.

Check whether the transformer will still be in service when the payback point is reached. A five-year payback is reasonable for a unit expected to remain on site for another 20 years, but not for one scheduled for relocation or replacement within four.

For a heavily loaded transformer, a higher load-loss figure can erase the saving from a low-loss core.

Final Procurement Check

Do not approve the premium based on a “high-efficiency” label or core-material description.

Before comparing payback figures, confirm that both suppliers used the same:

Transformer rating and operating conditions
Reference temperature and test standard
Electricity tariff
Annual energized hours
Load profile
Expected service life

Do not use the payback figure to approve the order until the supplier data and calculation assumptions are aligned.

1780048588626-Non-Oriented (NGOES) from HWHG.webp

HWHG grain-oriented electrical steel and amorphous ribbon for low-loss transformer cores

Once the target no-load loss and core requirements are defined, HWHG can provide relevant electrical steel or amorphous ribbon data for comparison. Send the transformer rating, target loss value, core dimensions, and processing requirements to discuss suitable material options.
