When an electric vehicle pulls away from a stop, there is no engine waiting to build revs and no conventional gearbox searching for the right gear. Torque reaches the wheels quickly, so the car moves quietly and with very little delay.

That response comes mainly from the EV traction motor, the component that converts electrical energy into rotational force. The direct driving feel comes from a short, tightly controlled power path: battery, inverter, motor, gearbox, and wheels.

Quick Answer

An EV traction motor is the motor that provides propulsion in an electric vehicle. Working with the inverter and drivetrain, it converts battery energy into controlled torque at the wheels.

In a typical EV drive system, the battery supplies DC power. The inverter converts it into controlled AC power, the motor produces rotation, and the reduction gearbox lowers motor speed while increasing usable wheel torque.

Key points

An EV traction motor is responsible for vehicle propulsion.
The inverter controls motor speed and torque.
The stator and rotor create motion through magnetic interaction.
EV motors can deliver strong low-speed torque.
Motor efficiency affects range, heat control, and energy use.
Core materials such as electrical steel affect core loss, heat buildup, and high-speed motor efficiency.

How an EV Traction Motor Works

An EV traction motor is the drive motor responsible for vehicle propulsion. It converts electrical power into torque and sends that torque through the drivetrain to move the vehicle forward or backward.

The word “traction” refers to how tire force is applied at the road surface. The motor does not create road grip by itself. It provides controlled rotational force, and the tires convert that force into vehicle movement.

When the driver presses the accelerator pedal, the vehicle control system calculates the torque demand. The battery supplies DC power, and the inverter converts it into controlled AC power for the motor. By changing current and frequency, the inverter controls motor speed and torque output.

Because the motor spins much faster than the wheels, a reduction gearbox lowers the output speed and increases usable torque before it reaches the differential, drive shafts, and wheels.

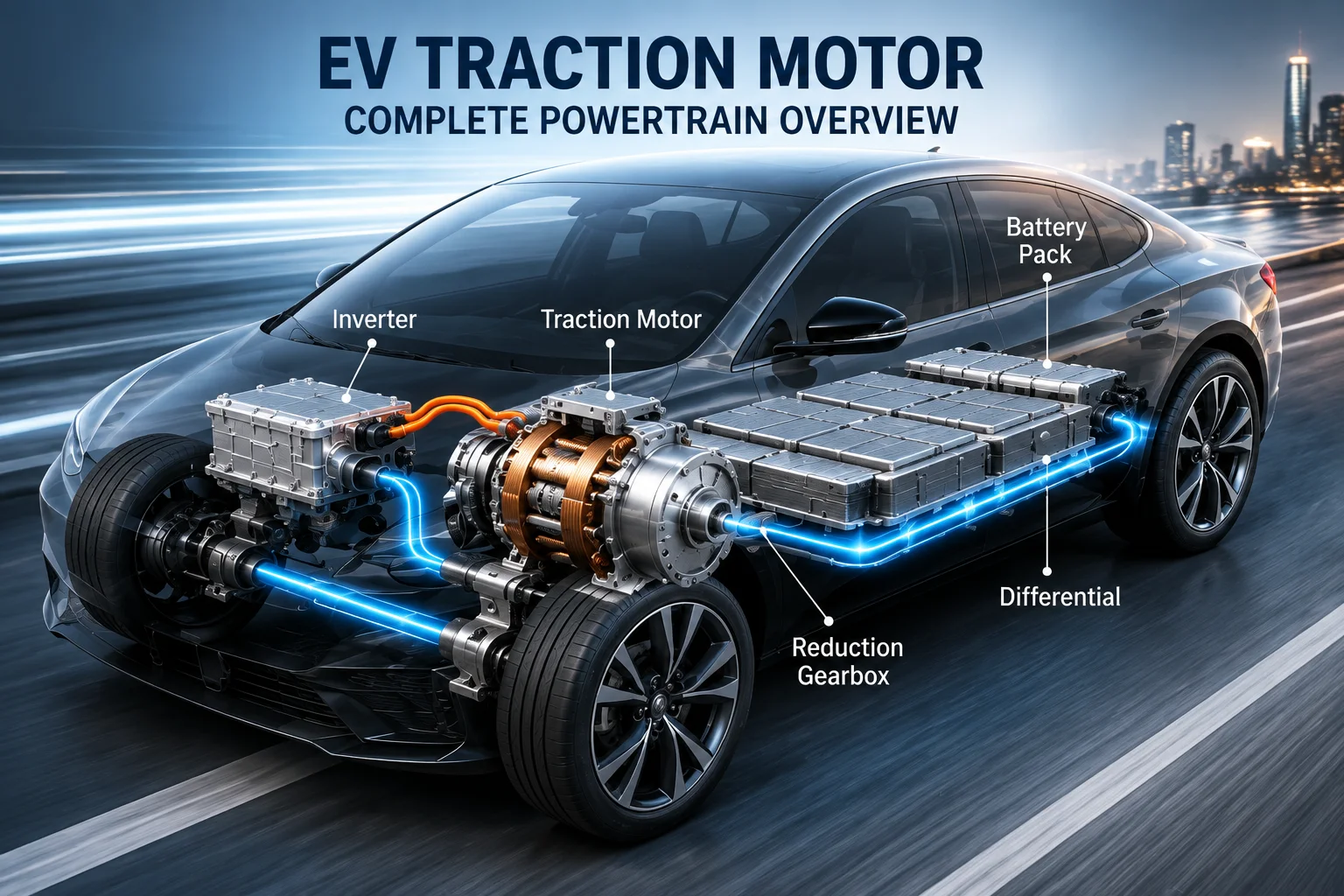

A simplified power path looks like this:

Battery → Inverter → Traction Motor → Reduction Gearbox → Differential → Drive Shafts → Wheels

EV traction motor power flow from battery to wheels and regenerative braking energy back to the battery

Because EV motors can operate across a wide speed range, many EVs can use a single reduction gear instead of a conventional multi-speed gearbox. The gearbox simply matches the motor’s high-speed output to the lower wheel speed needed on the road.

The same motor can also work during deceleration. When the driver lifts off the accelerator or applies the brakes, the wheels can drive the motor instead of being driven by it. At that point, the motor acts as a generator, and the inverter sends part of the recovered energy back to the battery.

This process is regenerative braking. It cannot recover all the energy used during acceleration, but in stop-and-go driving it can reduce wasted energy and ease the load on friction brakes. Hyundai Motor Group also explains regenerative braking as part of how EV components work together during driving and deceleration.

The reason the motor can both drive the vehicle and recover energy starts inside the motor. The two parts to look at first are the stator and the rotor.

Stator and Rotor: The Two Main Motor Parts

EV traction motor cross-section showing stator, rotor, magnetic field, and torque generation

Inside an EV traction motor, torque production starts with two main parts: the stator and the rotor.

The stator is the stationary part of the motor. Its windings create a rotating magnetic field when controlled AC power flows through them.

The rotor design depends on the motor type. It may use permanent magnets, induced magnetic fields, or an electrically excited magnetic field. When the stator’s magnetic field interacts with the rotor, the motor produces torque.

This stator-rotor interaction is what produces motor torque. The shaft then carries that rotation into the drive unit or gearbox.

From there, the drivetrain sends usable torque to the wheels.

The stator and rotor work together, but they do not face the same operating conditions inside the motor. Our guide to stator vs rotor operating conditions explains how those differences affect motor design and material choices.

Why EV Torque Feels So Immediate

Torque is the turning force that gets the vehicle moving. In a combustion vehicle, the engine has to build revs, and the transmission keeps the engine within a useful torque range.

An EV traction motor works differently. It can produce strong torque at very low speed, often from a standstill. This immediate torque is what makes many electric cars feel responsive as soon as the driver presses the accelerator. There is no engine rev build-up, and in many EVs there is no gear shift interrupting acceleration.

The result is a different driving feel: quieter acceleration, smoother power delivery, and fewer of the engine sounds or shift points many drivers expect from a combustion vehicle.

Motor Efficiency, Heat, and Range

Efficiency is the share of battery energy that becomes useful mechanical output at the shaft. The rest is lost mostly as heat in the motor, inverter, gearbox, and cables.

In an EV, those losses are paid for by the battery. More heat means less energy left for driving range.

When the motor and inverter waste less energy, more stored power is available for propulsion. That can improve range from the same battery capacity and reduce the cooling load on the drive unit.

Heat also limits how long the motor can keep delivering power. During highway driving, long climbs, towing, or repeated acceleration, the motor and inverter can build heat quickly. If the system cannot control that heat, the vehicle may reduce power to protect the motor, inverter, or battery.

That is why continuous performance matters, not just peak power. A motor may perform well in a short burst. Its real value shows up when it has to run efficiently across different speeds, loads, and temperatures.

Why Electrical Steel Matters Inside the Motor

Motor losses are closely tied to the core material, especially in the stator.

The stator core is not made from one solid piece of metal. It is built from many thin electrical steel sheets stacked together. These sheets are called laminations, and they help reduce unwanted electrical currents inside the core.

One major reason is eddy current loss. When the magnetic field changes inside the motor, small circulating currents can form in the metal. If the core were a solid block, those currents would have a larger path to circulate, turning more energy into heat instead of useful rotation. Laminations limit the path of those currents, helping the motor waste less energy.

Electrical steel grade, lamination thickness, and processing quality also matter. E-Mobility Engineering’s article on motor materials for electric vehicles also explains how insulation coatings on electrical steel laminations help reduce eddy current losses and improve motor efficiency.

That wide speed range is one reason many EVs do not need a conventional multi-speed gearbox. It affects efficiency, cooling demand, power stability, and how compact the final drive unit can be.

For EV traction motors, the steel inside the core can influence core loss, heat buildup, and high-speed stability. HWHG provides high-performance electrical steel for motor core applications where these factors are critical.

1780380648849-Electrical Steel Coil Applications .webp

HWHG non-oriented electrical steel coils and laminations for EV traction motor core applications

How to Compare Different EV Traction Motor Types

A city EV may care more about smooth low-speed response and cost. A long-range vehicle needs better efficiency across common driving speeds. A heavier SUV or performance EV has to deal with stronger acceleration, higher load, and more heat.

That is why peak horsepower is only a starting point. For engineering or purchasing decisions, the real check is whether the motor fits the vehicle’s operating conditions: how much torque it needs to deliver, how much heat the system can manage, how much space the drive unit allows, and how stable the motor remains as load and temperature change.
