An electric car motor has one basic job: turning electrical energy into motion. The process sounds simple, but the motor does not work alone.

Power starts in the battery, but it has to pass through the inverter before the motor can turn it into usable torque. Inside the motor, the stator, rotor, and core shape how that torque is produced.

A simple way to understand the system is:

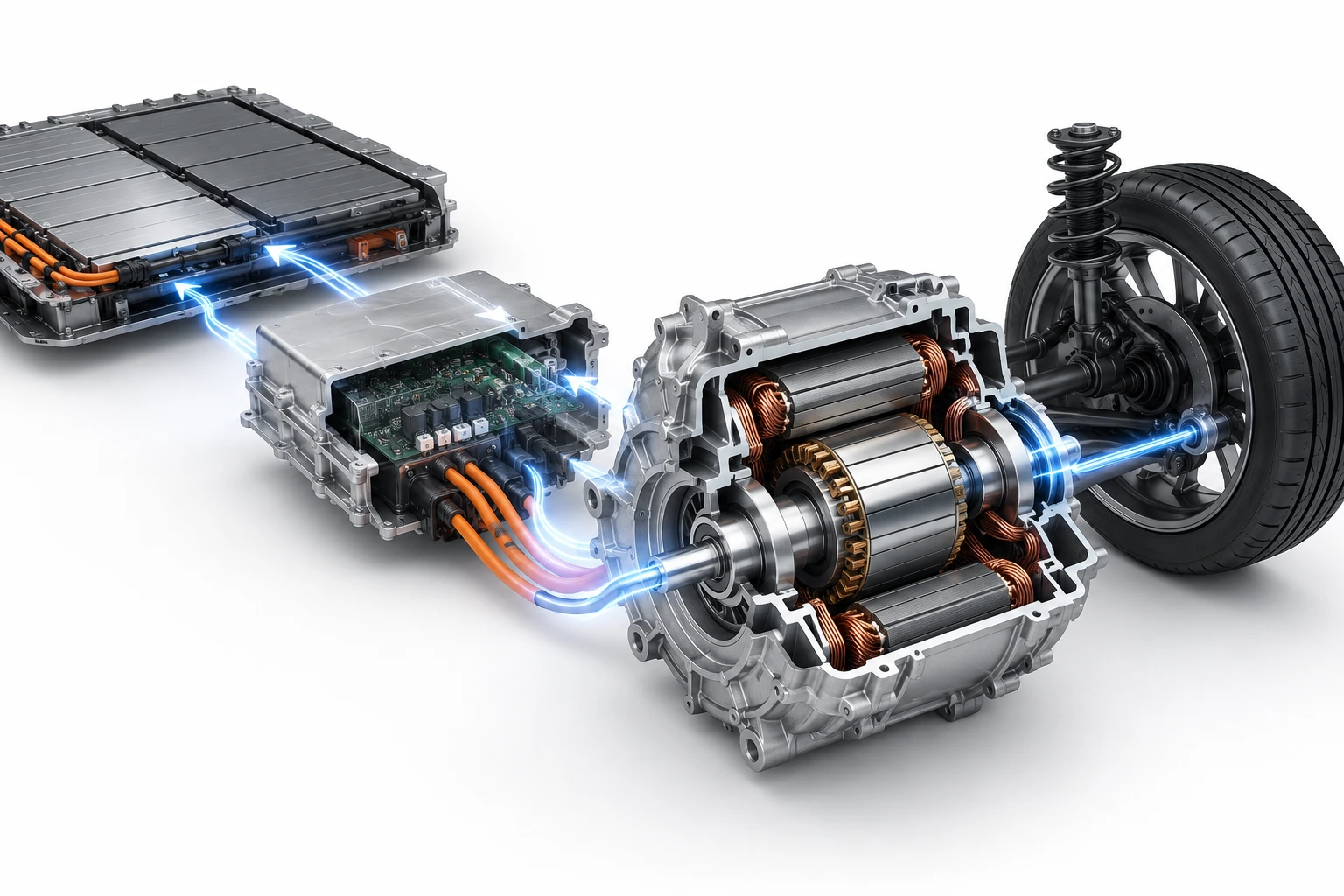

Battery → Inverter → Motor → Wheels

Key Points

An electric car motor turns battery power into torque through controlled magnetic force.
The battery stores energy as high-voltage DC power, but it does not usually drive the motor directly.
The inverter converts battery DC power into controlled three-phase AC power for the motor.
The stator uses that AC current to create a rotating magnetic field inside the motor.
The rotor reacts to the rotating magnetic field and turns the shaft, sending mechanical power toward the drivetrain.
The motor core gives magnetic flux a controlled path to follow and helps reduce energy lost as heat.
Core material shows up in real motor performance: heat, loss, torque density, motor size, and high-speed behavior.

What Is an Electric Car Motor?

The easiest way to notice an electric motor is not by looking at it. It is by pressing the accelerator.

In an electric car, the response starts with electrical control. When the driver asks for acceleration, the inverter takes DC power from the battery and sends controlled three-phase AC current to the motor. This current flows through the stator windings and creates a rotating magnetic field.

The rotor sits inside that field. As it reacts to the changing magnetic force, it begins to turn with the shaft. That turning force is called torque, and it is sent through the drivetrain to move the vehicle.

Different motor types handle the details differently, but the path is similar: controlled current creates magnetic force, and that force turns the rotor.

The Three Main Parts: Battery, Inverter, and Motor

The motor is only the last stage of the power path. Before it produces torque, the battery and inverter have already done part of the work.

EV Battery Inverter Motor Power Flow

EV power flow from battery through inverter and electric motor to the wheels

1. Battery: Where the Energy Starts

The battery pack stores energy as high-voltage DC power. In most EVs, this power does not go directly to the motor. It first goes to the inverter, where the voltage and current are controlled before the motor receives them.

2. Inverter: The Part That Controls the Motor

The inverter converts DC power from the battery into three-phase AC power. It also changes the frequency and current sent to the motor.

Frequency affects motor speed. Current affects torque. When the driver asks for more acceleration, the inverter adjusts the electrical output so the motor can produce more pulling force.

3. Motor: Where Electricity Becomes Torque

After the inverter sends three-phase AC power to the motor, current flows through the stator windings. This creates a rotating magnetic field inside the motor.

The rotor sits within that field and turns with the shaft. From there, mechanical power is sent through the drivetrain toward the wheels.

Stator and Rotor: The Two Main Motor Sections

Inside a typical EV traction motor, the stator stays still and the rotor turns.

The stator is the fixed section of the motor. It usually contains a laminated electrical steel core and copper windings. When three-phase AC current passes through the windings, it creates a rotating magnetic field inside the motor.

The rotor is the rotating section connected to the shaft. Depending on the motor type, it may use permanent magnets or conductive bars. As the stator’s magnetic field changes around it, the rotor reacts to that field and turns the shaft.

EV Motor Stator and Rotor Cross Section

Cross-section of an EV motor showing the stator, rotor, copper windings, laminated core, and magnetic field

A simple comparison:

Part	Position	Main Job	Common Materials
Stator	Stationary section	Creates the rotating magnetic field	Laminated electrical steel core and copper windings
Rotor	Rotating section connected to the shaft	Turns in response to the magnetic field	Laminated steel core with permanent magnets or conductive bars

After the stator and rotor, the next part is the motor core — the structure that gives the magnetic field a path to follow.

Why the Motor Core Matters

The motor core gives the magnetic field a path to follow inside the motor. Without a good magnetic path, the stator and rotor would need more current to produce the same torque, and more of that energy would turn into heat.

In many EV motors, the core is built from laminated electrical steel. The stacked layers help the magnetic field stay on a controlled path.

Those unwanted currents are called eddy currents. They appear when the magnetic field changes quickly, which is common in high-speed EV motors. Thin insulated laminations make it harder for large eddy currents to form, reducing heat loss.

Core material also affects hysteresis loss, which happens as the magnetic state of the material changes again and again during motor operation.

Why EV Motors Use Laminated Cores

EV motor cores are usually built from thin electrical steel sheets instead of one solid block of steel. These stacked sheets, called laminations, help limit eddy currents when the magnetic field changes quickly. E-Mobility Engineering also explains that very thin laminations in electrical machine cores are important because they reduce induced eddy currents, power loss, and waste heat.

In many traction motors, the laminations are made from non-oriented electrical steel. This material suits rotating machines because the magnetic field inside the motor does not stay in one fixed direction.

In actual core production, steel grade and thickness affect stamping, stacking, and magnetic loss. HWHG supplies non-oriented electrical steel coils in different grades and thicknesses for motor core manufacturers working with different lamination and performance requirements.

HWHG Electrical Steel for EV Motor Cores

HWHG non-oriented electrical steel coils and laminated motor core materials for EV motors

Common Motor Core Materials

Core material starts to matter when the motor has to carry magnetic flux at high speed without turning too much energy into heat.

Most EV motor cores still use laminated electrical steel. Amorphous metal and soft magnetic composites usually enter the discussion when the design is trying to reduce loss, change the magnetic path, or make better use of limited space.

Silicon Steel

Silicon steel is the most common choice for EV motor cores. It is a type of electrical steel with silicon added to improve magnetic performance and reduce core loss.

In the motor, the steel is cut into thin sheets and stacked into laminations. These layers help guide magnetic flux while limiting eddy currents inside the core.

That balance is why silicon steel remains common in high-volume EV motors: it performs well enough magnetically and fits existing stamping and stacking processes.

Amorphous Metal

Amorphous metal comes up when the design needs lower core loss and can accept a more difficult production process.

Its non-crystalline structure can reduce magnetic loss, especially when the magnetic field changes quickly.

hwhg-amorphous-ribbon-for-low-loss-magnetic-cores

HWHG amorphous ribbon for low-loss magnetic core applications

The problem is processing. Compared with conventional electrical steel, amorphous metal is harder to cut, shape, and assemble into motor cores.

Soft Magnetic Composites

Soft magnetic composites, or SMCs, are useful when the motor design needs a magnetic path that is not easy to build from flat steel sheets.

They are made from insulated iron powder particles. Because each particle is separated by insulation, eddy currents have less room to circulate.

Shape is where SMCs become more interesting. They can be pressed into three-dimensional forms, which helps in axial-flux motors, compact layouts, and designs with more complex magnetic paths.

What This Means for EV Motor Design

An EV motor is not just a rotor spinning inside a housing. It is a controlled path for energy conversion.

Power starts in the battery, but it does not become useful torque on its own. The inverter shapes the current, the stator builds the rotating magnetic field, and the rotor turns with that field. The motor core supports the same process by keeping the magnetic path controlled and limiting unnecessary heat and loss.

These parts are closely linked in real motor design. A stronger magnet, a thinner lamination, a different core material, or a faster inverter switching strategy can all change how the motor behaves under load.

In EV motor design, peak power is only one number. The harder question is whether the motor can keep turning electrical energy into torque steadily under real driving conditions.
