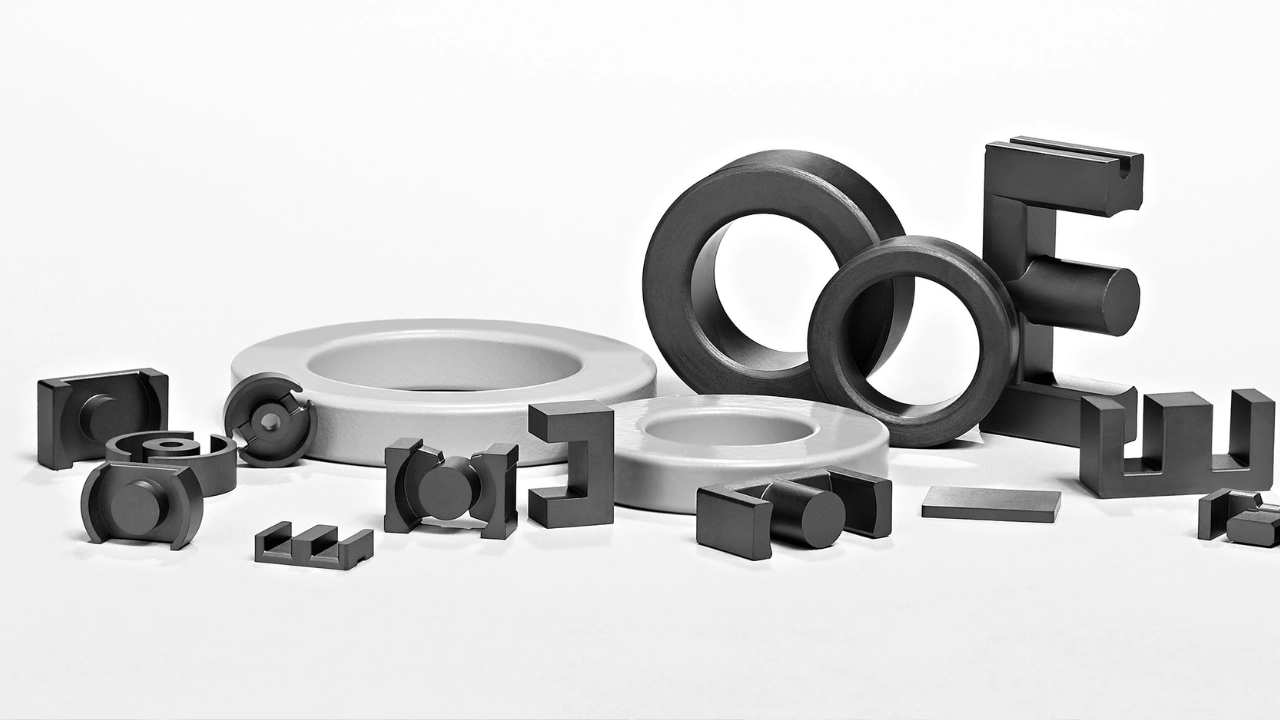

A transformer core may look like a simple piece of steel, but the shape changes how the transformer behaves in real use. It affects the magnetic path, no-load loss, temperature rise, audible hum, leakage flux, winding space, and even the final cost.

That is why EI, UI, toroidal, and step-lap core designs are not interchangeable. A low-cost power supply, a quiet audio transformer, and an industrial control transformer may all need different core structures, even when the rated power looks similar on paper.

Quick Answer

Choose an EI core when the main targets are simple production, stable supply, and controlled unit cost.

Choose a UI core when the winding area, insulation distance, or assembly space needs more flexibility.

Choose a toroidal core when low hum, low leakage flux, and compact size matter more than the lowest manufacturing cost.

Choose a step-lap core when you need lower no-load loss and less audible noise in a laminated EI or UI-style core.

Why Core Shape Matters

The core gives magnetic flux a controlled path between the transformer windings. A shorter and more continuous magnetic path usually helps reduce loss, heat, and audible hum. Gaps, uneven joints, poor stacking, or weak contact between laminations can increase magnetic reluctance and make the transformer less efficient.

In simple terms, core shape can affect:

how hot the transformer gets
how much energy it loses while running
how much hum it makes
how large and heavy it becomes
how difficult it is to build
how much it costs

Core shape also changes how the windings are arranged. In some designs, the windings sit around the core limbs. In others, the core wraps more closely around the windings. This is the basic idea behind core-type and shell-type transformers.

This affects not only performance, but also winding labor, insulation design, and how easy the transformer is to assemble in volume production.With that in mind, let’s look at the common core shapes one by one.

EI Core: The Common “E” and “I” Shape

EI Transformer Core Laminations

An EI core is built from thin steel sheets shaped like the letters “E” and “I.” These sheets are stacked together to form the magnetic core. In transformer manufacturing, these thin sheets are often called laminations.

EI cores are widely used because they are simple to make, easy to assemble, and relatively low in cost. You can find them in many general power supplies, adapters, control transformers, and isolation transformers.

The main limitation is the joint between the E and I laminations. If the joint fit is poor or the air gap is not well controlled, the magnetic path becomes less efficient. This can increase leakage flux, no-load loss, temperature rise, and audible hum.

In many low-cost or general-purpose transformers, this compromise is acceptable. EI cores are often the safer choice when the design target is stable supply and controlled cost, rather than the lowest possible noise or the smallest possible size. For stricter efficiency or noise requirements, the lamination quality, joint fit, stacking method, and material grade need closer review.

UI Core: A Simple Core Shape with More Winding Space

A UI core is made from U-shaped and I-shaped steel laminations. The windings are often placed around the two limbs of the U-shaped part.

This layout leaves more open space around the winding area, which can make the transformer easier to wind, insulate, and assemble. That is why UI cores are sometimes used in designs where winding space or insulation distance needs more attention.

The trade-off is size and material usage. Depending on the design, a UI core may occupy more space than an EI or toroidal core with a similar power rating. It may also be less attractive when the product needs a very compact enclosure or strict material cost control.

Toroidal Core: Low Noise and Compact Size

1780384889627-toroidal transformer core low noise design.webp

Toroidal Transformer Core Low Noise Design

A toroidal core is a ring-shaped transformer core. The magnetic path goes around the ring, so there are no separate E and I pieces meeting at a joint.

This closed magnetic path helps keep flux inside the core. In many designs, toroidal transformers can achieve lower audible hum, lower stray magnetic field, and a more compact size than traditional laminated EI cores. This matters when the transformer is placed near audio circuits, medical equipment, measuring instruments, or other sensitive electronics.

The trade-off is manufacturing cost. Toroidal winding is more difficult because the wire has to pass through the center hole repeatedly. It often requires dedicated winding equipment and more controlled production. Design changes can also be less convenient once the winding process is fixed.

Toroidal cores make sense when low hum, low leakage flux, and compact size are part of the design requirement. They are usually less suitable when the main target is the lowest unit cost, simple winding, or fast design adjustment.

Step-Lap Joint: Improving Laminated Core Performance

EI and UI cores are built from many thin steel sheets stacked together. Where these sheets meet, the magnetic path is not as smooth as it is in a closed ring-shaped core.

A step-lap joint makes this meeting point less abrupt. The laminations overlap in small steps, so the magnetic flux does not hit one straight joint all at once. This can help reduce energy loss, heat, and transformer hum.

Step-lap is not a separate core shape like EI, UI, or toroidal. It is a way to improve laminated cores. In simple words, step-lap makes a laminated EI or UI core quieter and more efficient by improving the way the steel sheets meet.

A Simple Way to Compare Core Shapes

There is no single “best” transformer core shape. Each design has its own strength. The right choice depends on what the transformer needs most: lower cost, lower noise, smaller size, easier winding, or lower loss.

Core Type	Main Advantage	Main Limitation	Better Choice When...
EI Core	Low cost, easy sourcing, simple assembly	Joint gaps may increase leakage flux, loss, and hum	The design needs stable supply, controlled cost, and standard production
UI Core	More winding space and easier insulation access	May require more space and material	The winding needs more clearance, thicker wire, or easier manual assembly
Toroidal Core	Low hum, low leakage flux, compact size	Higher winding difficulty and higher unit cost	Noise, stray magnetic field, and size are more important than lowest cost
Step-Lap Core	Lower no-load loss and reduced hum in laminated cores	Requires more accurate cutting, stacking, and assembly	The design needs better laminated-core performance without changing to toroidal

Final Selection Tip

Core shape is only one part of transformer design. EI, UI, toroidal, and step-lap cores each have their own use, but the final performance also depends on the core material and processing quality.

For example, grain-oriented electrical steel, non-oriented electrical steel, amorphous alloy, and the way the core is cut, stacked, and annealed can all affect loss, heat, noise, and long-term stability.

Before ordering transformer cores or core materials, it is worth confirming a few basic details with the supplier:

Rated power and frequency
Core shape and size
EElectrical steel or amorphous material grade
Expected core loss or no-load loss
Temperature rise
Noise requirement
Insulation class or coating requirement
Winding structure
Certification or testing requirement
Delivery form, such as coil, strip, lamination, or finished core

The right core is not just the one with the right shape. It should also match the transformer’s working condition, loss target, production method, and cost requirement.
