When a transformer or inductor uses GOES steel, the core shape matters more than it may seem. A cut core and a wound core do not behave the same way. They can affect energy loss, noise, assembly, and how well the core handles DC bias.

Quick Answer

A wound core gives the magnetic flux a smoother path, so it is often used when low loss and low noise are important.

A cut core is easier to assemble with a pre-made coil. It also creates a small air gap, which helps the core handle DC bias better.

So the choice is not about which core is always better. It depends on what the design needs most: lower loss, less noise, easier assembly, better DC bias tolerance, smaller size, or lower production cost.

Why GOES Matters in Both Core Types

Both cut cores and wound cores can use grain-oriented electrical steel, or GOES. The point is not only the material itself, but how well the core shape lets the magnetic flux follow the grain direction.

GOES is made to work best in one direction: the rolling direction of the steel. Arnold Magnetic Technologies explains that this grain orientation gives GOES higher permeability and lower core loss in the rolling direction, which is why flux direction matters so much in transformer core design.

Magnetic flux moves more easily along this direction than across it. When the flux follows the grain direction, the core usually has lower loss and higher permeability. When the flux path is interrupted, or forced across a less favorable direction, the core may need more magnetizing current and may generate more heat or noise.

For readers who are new to electrical steel, Xometry gives a simple overview of the difference between GOES and non-oriented electrical steel. GOES is more suitable when magnetic flux mainly follows one direction, while non-oriented steel is used more often when the magnetic field changes direction, such as in motors.

This is why core design matters. The shape of the core decides how smoothly the flux can move through the steel. A wound core keeps this path more continuous, while a cut core interrupts the path at the cut faces but gives the designer more control over assembly and air gap.

What a Wound Core Does Well

A wound core is made by winding a continuous strip of GOES into a closed shape, often toroidal or rectangular. Because the strip is continuous, the grain direction follows the magnetic path around the core, so the flux path stays smooth and almost uninterrupted.

This gives wound cores several advantages:

lower no-load loss
higher effective permeability
lower magnetizing current
lower stray magnetic field, especially in toroidal cores
lower audible noise when the core and winding are properly built

These advantages matter most in designs that stay energized for long hours, or in equipment where heat, hum, and leakage flux must be kept under control. That is why wound cores are often used in power transformers, audio transformers, medical equipment, and compact AC power supplies, where efficiency, low hum, or limited space can matter.

If the main target is low no-load loss and quiet AC operation, a wound core is usually the safer starting point.

The limitation is assembly. Because the core is already closed, the coil usually has to be wound around the core itself. This may require special winding equipment and can slow production, especially for larger cores or custom designs.

Coil winding around a closed wound core using specialized winding equipment

What a Cut Core Does Differently

A cut core is usually made from a wound core. The core is first wound into shape, and then it is cut into two matching parts. These two parts are often called C-core halves.

The benefit is that the coil can be made first. After the coil is ready, the two core halves can be placed around it. This is often easier than trying to wind the coil around a closed core.

This is useful for larger cores, custom designs, or products where the coil is made on a bobbin first.

But cutting the core also changes how it works. Where the two core halves meet, there is a very small air gap. This gap makes the core a little less efficient than a fully closed wound core. It may need more magnetizing current, and the loss can be slightly higher.

At the same time, this small gap has one important advantage. It helps the core avoid saturating too quickly when DC current is present. In simple words, the core has a little more “room” before it gets overloaded magnetically.

That is why cut cores are often used in inductors, chokes, output transformers, PFC parts, and converter designs. These parts may need to handle both AC and DC current, so the air gap becomes useful.

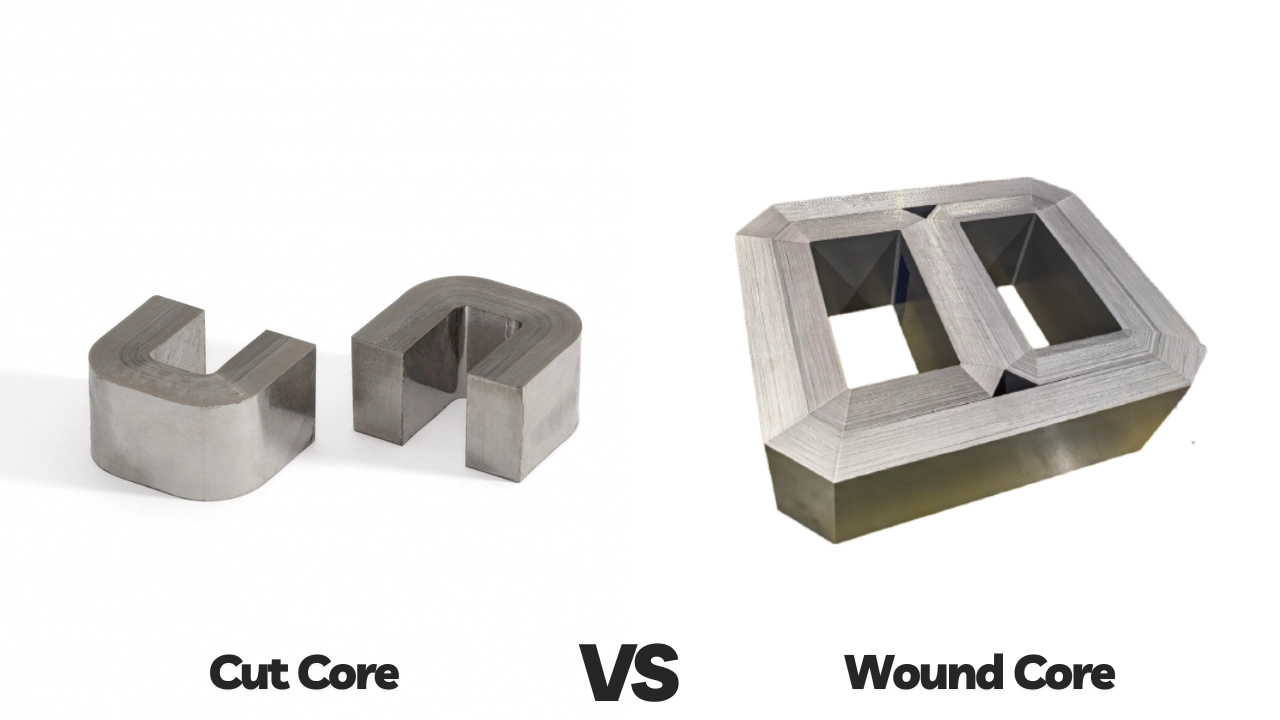

Cut Core vs. Wound Core: Main Differences

Factor	Wound Core	Cut Core
Magnetic path	Continuous, with minimal interruption	Interrupted at the cut faces
GOES utilization	Very strong grain alignment	Good, but disrupted at the mating surfaces
Air gap	Usually gapless	Controlled gap at the cut faces
Core loss	Usually lower	Slightly higher because of the gap
Permeability	Higher	Lower due to the air gap
DC bias tolerance	Poor; can saturate quickly	Better because the gap adds magnetic headroom
Assembly	More difficult for closed-core designs	Easier with pre-wound coils
Noise	Often lower when properly built	Depends on gap control and clamping
Typical use	AC transformers, low-noise designs, compact power supplies	Inductors, chokes, custom transformers, DC-biased circuits

The important trade-off is simple: a wound core protects magnetic efficiency, while a cut core gives the designer more control over assembly and DC bias behavior.

How to Choose Between a Wound Core and a Cut Core

Choose a wound core when the transformer mainly works with AC current, and the main target is low loss, low noise, and a compact magnetic path.

It is usually the better choice when the design needs:

lower no-load loss
quieter operation
lower stray magnetic field
better use of limited space
no deliberate air gap

A toroidal transformer is a common example. Its closed magnetic path helps reduce leakage flux and audible hum. The trade-off is assembly: because the core is closed, the coil usually has to be wound around the core itself, which can require more specialized winding equipment.

Choose a cut core when the design needs easier coil assembly or better tolerance to DC current.

It is usually the better choice when:

the circuit includes a DC component
the core must avoid early saturation
the coil is made on a bobbin first
the transformer is large or custom-shaped
production needs easier coil-core assembly

A cut core is not a lower-grade choice. It solves a different problem. The air gap helps with DC bias, but it also needs to be controlled. If the gap changes too much from one unit to another, the final performance may also vary.

In one AskElectronics thread about a switching power supply design, users discussed why a closed magnetic path can be more vulnerable to saturation when DC is involved, and why an opening or gap in the core may be needed in some inductor designs. This is not a replacement for datasheet-based design, but it shows why DC bias and core saturation are common real-world concerns.

Final Selection

For a low-loss AC transformer, start with a wound core.

For an inductor, choke, or transformer that sees DC bias, start with a cut core.

For production, do not look only at magnetic performance. Also check how the coil will be made. A wound core may give better magnetic efficiency, but it can be harder or slower to wind. A cut core may be easier to assemble, but it may need tighter gap control or a larger core to reach the same electrical target.

A simple way to decide is this: if the main concern is loss, noise, and leakage flux, choose a wound core first. If the main concern is DC bias, saturation, or assembly, choose a cut core first.
