If you are choosing electrical steel for motor laminations, the first question is usually simple: which grade should we use?

But in real motor production, grades alone are rarely enough.

A steel that looks suitable on paper can still cause problems later if the thickness is not stable, the core loss does not match the operating frequency, or the strip surface creates trouble during stamping and stacking. These issues may not show up when the coil arrives. They often appear later — in stacking height, air-gap control, slot fill, temperature rise, or the final core-loss test.

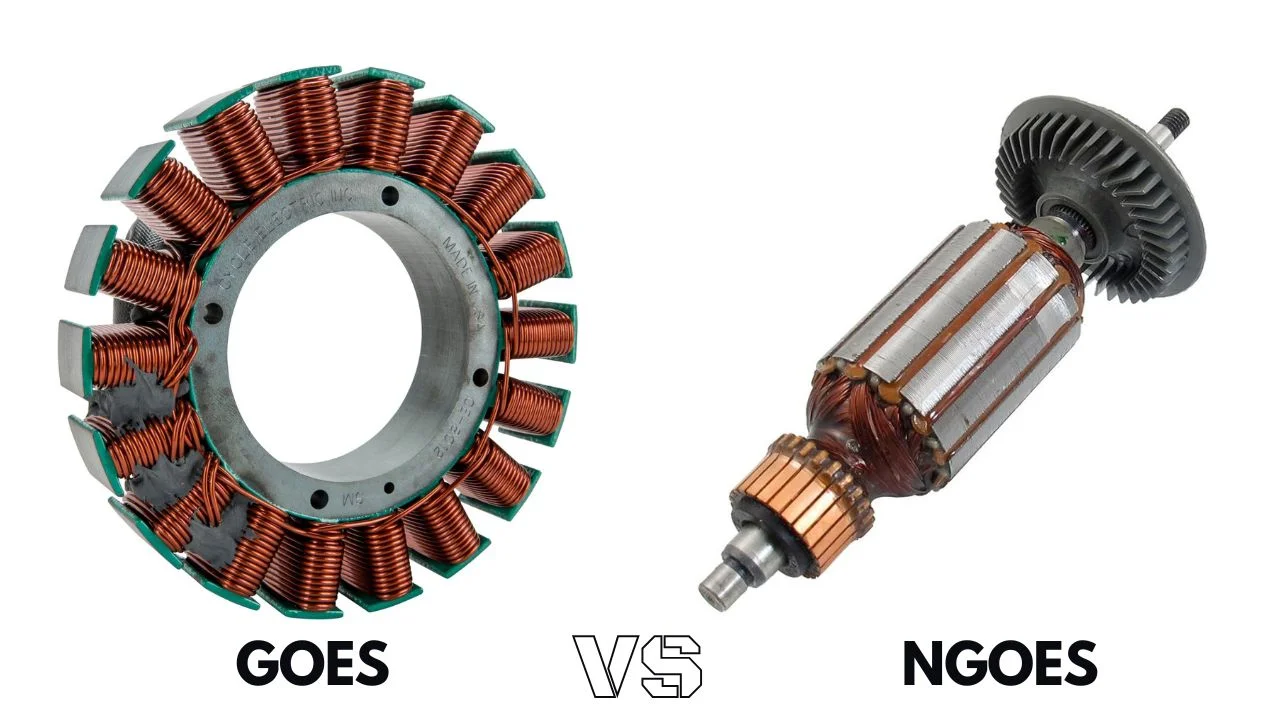

Stator and rotor laminations are a useful way to understand how non-oriented electrical steel should be specified, because the two stacks sit in the same motor but do not place the same magnetic, thermal, or mechanical demands on the material. The point is not to choose the “best” steel in general, but to match the specification to the motor’s frequency, efficiency target, production process, and cost limit.

Quick Answer

When choosing electrical steel for motor laminations, start with the motor’s actual operating conditions, not just the grade name.

For the stator, core loss is usually the first concern because the steel carries the main alternating magnetic field. Lower-loss grades and thinner laminations may be worth the cost in high-speed or high-frequency motors.

For the rotor, magnetic performance still matters, but speed, centrifugal stress, heat, and cost often carry more weight. In many induction motors, rotor core frequency is linked to slip and stays relatively low during normal running, so a more economical grade may be enough.

Lamination thickness should also match the operating frequency. Thin gauges such as 0.20–0.35 mm can help reduce eddy-current loss in high-frequency applications. For many 50/60 Hz industrial motors, 0.50 mm electrical steel may still offer a better cost-performance balance.

Production consistency is just as important as the nominal specification. If thickness varies too much across the strip width or from batch to batch, problems can appear later in stacking height, slot fill, air-gap control, and final core-loss testing.

Why Stator and Rotor Need Different Electrical Steel Priorities

The stator and rotor sit in the same magnetic circuit, but they do not see the same working conditions.

Using the same electrical steel for both stacks can work in some motor designs. In others, it adds cost where the motor does not need it and still misses the real limit, whether that limit is heat, speed, strength, or production consistency.

The better question is not which grade looks best on paper. It is where the motor is most likely to lose efficiency, build heat, or create manufacturing risk.

Why Core Loss Usually Matters More in the Stator

The stator does not move, but it carries much of the magnetic workload. Current in the stator windings creates the rotating magnetic field, and the laminated core has to carry that flux efficiently.

In many induction motors, the stator core sees the full supply frequency, usually 50 or 60 Hz. In inverter-driven spindles, compressors, traction motors, or other high-speed designs, the electrical frequency can be much higher.

That is where a better stator grade starts to make sense. Lower-loss steel can help reduce heat and keep the motor closer to its efficiency target, especially in continuous-duty applications.

For a motor that runs long hours, the cost of a better stator material may be easier to justify than it looks from the material price alone.

Rotor Requirements Are Often Different from the Stator

The rotor turns the magnetic field into torque. In an induction motor, rotor core frequency is tied to slip. Once the motor reaches normal running speed, that frequency is much lower than the stator supply frequency.

So the rotor does not always need the same low-loss material as the stator.

That does not make rotor material unimportant. The risk simply moves somewhere else. A rotor may run at high speed, heat up under load, and carry centrifugal stress. In that case, strength, balance, thermal behavior, and manufacturing cost can matter more than choosing the lowest-loss grade available.

Component	Main Role	What Matters Most
Stator	Carries the main alternating magnetic field	Core loss, efficiency, temperature rise, magnetic permeability
Rotor	Interacts with the stator field to produce torque	Strength, speed, heat, cost, magnetic performance
Both	Form the motor’s magnetic path	Thickness stability, surface quality, insulation coating, stacking consistency

Permanent Magnet Synchronous Motor Rotor in New Energy Vehicles

How Steel Grade Changes Between Stator and Rotor Applications

Most stator and rotor laminations are made from electrical steel, but the selection logic is not the same for every part of the motor.

For the stator, a lower-loss grade can reduce heat and improve efficiency over long operating hours. For the rotor, a more economical grade may be acceptable when rotor frequency stays low, as long as the part still meets the required strength, flux, and temperature limits.

Why Silicon Steel Is Still the Standard

For most commercial and industrial motors, silicon steel remains the standard material for stator and rotor laminations. Its controlled silicon content increases electrical resistivity, helping reduce core loss while still allowing the steel to carry magnetic flux effectively.

It also offers a practical balance of magnetic performance, availability, processing stability, and cost. The material can be rolled into consistent thin gauges, coated for insulation, and stamped at scale, which helps explain why motor designers still rely on NGOES across a wide range of motor applications.

That does not mean the same grade is suitable for every component. Stators may justify lower-loss steel, while rotors may place more emphasis on strength, speed, heat, and cost.

Cobalt-iron and nickel-iron alloys are usually reserved for specialized designs where higher power density, compact size, or specific magnetic performance is valuable enough to justify the added material and processing cost.


Strip Annealing and Coating Line (SACL) in HWHG Factory

Common Electrical Steel Grades for Motor Laminations

Grade labels such as M19, M27, or M43 are only starting points. Electrical steel grades should be compared using the same core-loss test conditions, thickness, and processing state.

Material	Key Properties	Typical Use
M19 Silicon Steel	Lower core loss at 60 Hz, good permeability, moderate cost	High-efficiency stators, general-purpose motors
M43 Silicon Steel	Higher core loss than M19, lower cost	Rotors, cost-sensitive industrial motors
M27 / M36 Silicon Steel	Practical balance of cost and performance	Industrial motors, pumps, fans, compressors
Cobalt-Iron Alloy	Very high saturation flux density, high cost	Aerospace actuators, high-performance compact motors

Exact properties should be confirmed from the supplier’s specification rather than inferred from the trade name alone.

When Thinner Electrical Steel Actually Helps

At higher electrical frequencies, lamination thickness becomes one of the main levers for controlling eddy-current loss. Thinner insulated sheets shorten the circulating-current paths and can reduce heat, especially in high-speed or inverter-driven motors.

Thin gauges such as 0.20–0.35 mm may therefore be worth considering for:

high-speed spindles
inverter-driven compressors
traction motors
compact servo motors
high power-density designs

But thinner steel is not a free upgrade. It raises material cost and makes stamping, coating, handling, and stacking more demanding. More insulation layers can also reduce stacking factor, leaving less active steel in the same core volume.

Electrical Steel Selection Is Not Only About Magnetic Properties

Not every motor benefits enough from thinner steel to justify the added material and processing cost. In many industrial applications, the engineering target is to meet the required efficiency level while keeping production stable and large-volume manufacturing economical.

That is why 0.50 mm electrical steel remains practical for many 50/60 Hz pumps, fans, compressors, and conveyors. A thinner gauge may reduce some loss, but the improvement may not offset higher coil cost, greater tooling demands, and additional production risk.

In these applications, consistent thickness and processing behavior can be more valuable than selecting the thinnest available grade.

Why Thickness Stability Matters More Than Many Buyers Expect

The nominal thickness on the coil label is only the starting point.

A coil marked as 0.35 mm still needs to stay close to that value across its full width and length. Stable gauge depends heavily on cold rolling precision and regular inspection, because small deviations become more visible after hundreds or thousands of laminations are stacked.

If the gauge varies too much, the problem may not show up immediately. It often appears later in stacking height, slot fill, air-gap control, or final core-loss testing.

For motor manufacturers, this matters because lamination material does not stay as a coil. It has to be slit, stamped, stacked, pressed, and tested. Small thickness deviations become more visible after hundreds or thousands of laminations are stacked together.

Thickness stability can be just as important as nominal thickness.

How Coil Thickness Consistency Affects Lamination Production

For motor manufacturers and lamination stampers, the goal is not only to receive the correct nominal gauge, but to receive coil material that behaves predictably during slitting, stamping, stacking, pressing, and testing.

HWHG treats thickness consistency, surface condition, and regular material inspection as part of the supplied coil specification. These controls do not replace the customer’s lamination process, but they can reduce unexpected variation before the material reaches the stamping line.


Quality Inspection of Electrical Steel Coils

Different Motors Need Different Electrical Steel Priorities

A lamination grade that works well in one motor can be unnecessary, or even wasteful, in another.

High-speed motors often push the material through frequency and heat. Standard industrial motors usually need a practical balance of loss, cost, and supply stability. Torque-focused motors may care more about saturation and magnetic strength.

For high-speed or high-frequency motors, thin low-loss steel may be worth the cost because heat can become a real limit.

For standard industrial motors, a stable and economical grade may be the better choice, especially when the motor runs at 50/60 Hz and the efficiency gain from thinner material is limited.

For high-torque, low-speed motors, the answer may not be thinner steel at all. Permeability, saturation flux density, slot design, cooling, and overall motor geometry may have more influence on performance.

What Motor Manufacturers Should Confirm Before Ordering Electrical Steel

Before ordering, compare the electrical steel coil properties that affect stamping, stacking, and final motor performance:

Operating frequency and motor speed
Stator or rotor application
Required core loss and efficiency target
Lamination thickness and tolerance
Surface quality and insulation coating
Stamping or cutting method
Stacking factor
Temperature rise limit
Production volume and cost target

These requirements should also be checked against the supplier’s electrical steel certificates, especially the reported core loss, thickness, coating, test conditions, and applicable standard. The same grade name can represent different practical performance if those conditions are not consistent.

When sourcing electrical steel coils from HWHG, it is better to share the motor type, operating frequency, target thickness, tolerance requirement, coating requirement, and intended stamping method instead of only sending a grade name. These details make it easier to match the coil specification to the customer’s real processing and performance requirements.

Choosing Electrical Steel Based on Real Motor Conditions

For the stator, the main concern is usually magnetic loss at the operating frequency. For the rotor, magnetic performance still matters, but speed, strength, heat, and cost often carry more influence on the final choice.

Thin low-loss steel can be worth paying for in high-frequency or heat-sensitive motors. Standard gauges can still be the better engineering choice for many industrial motors.

If you are comparing electrical steel coils for stator or rotor lamination production, HWHG can help you check the suitable material direction based on your target grade, thickness, coating requirement, and operating frequency.

FAQs

1. Does the stator always need a better electrical steel grade than the rotor?

Not always. In many induction motors, the stator justifies a lower-loss grade because it sees the main supply frequency. The rotor usually sees a much lower frequency during normal running, so a more economical grade may be enough if it still meets flux, strength, and temperature requirements.

2. Is thinner electrical steel always better?

No. Thinner electrical steel can reduce eddy-current loss, especially in high-frequency motors, but it also increases material and processing cost. It can make stamping, handling, coating, and stacking more difficult. The right thickness depends on frequency, efficiency target, motor size, and production cost.

3. Why does thickness stability matter in motor laminations?

Thickness stability affects stacking height, slot fill, air-gap control, and final core-loss testing. If the gauge varies too much across the coil or from batch to batch, the finished lamination stack may become less consistent, even if the nominal thickness looks correct on paper.

4. What should motor manufacturers confirm before ordering electrical steel?

They should confirm the motor’s operating frequency, speed, stator or rotor application, core-loss target, lamination thickness, coating requirement, stamping method, stacking factor, temperature limit, and production cost target.
