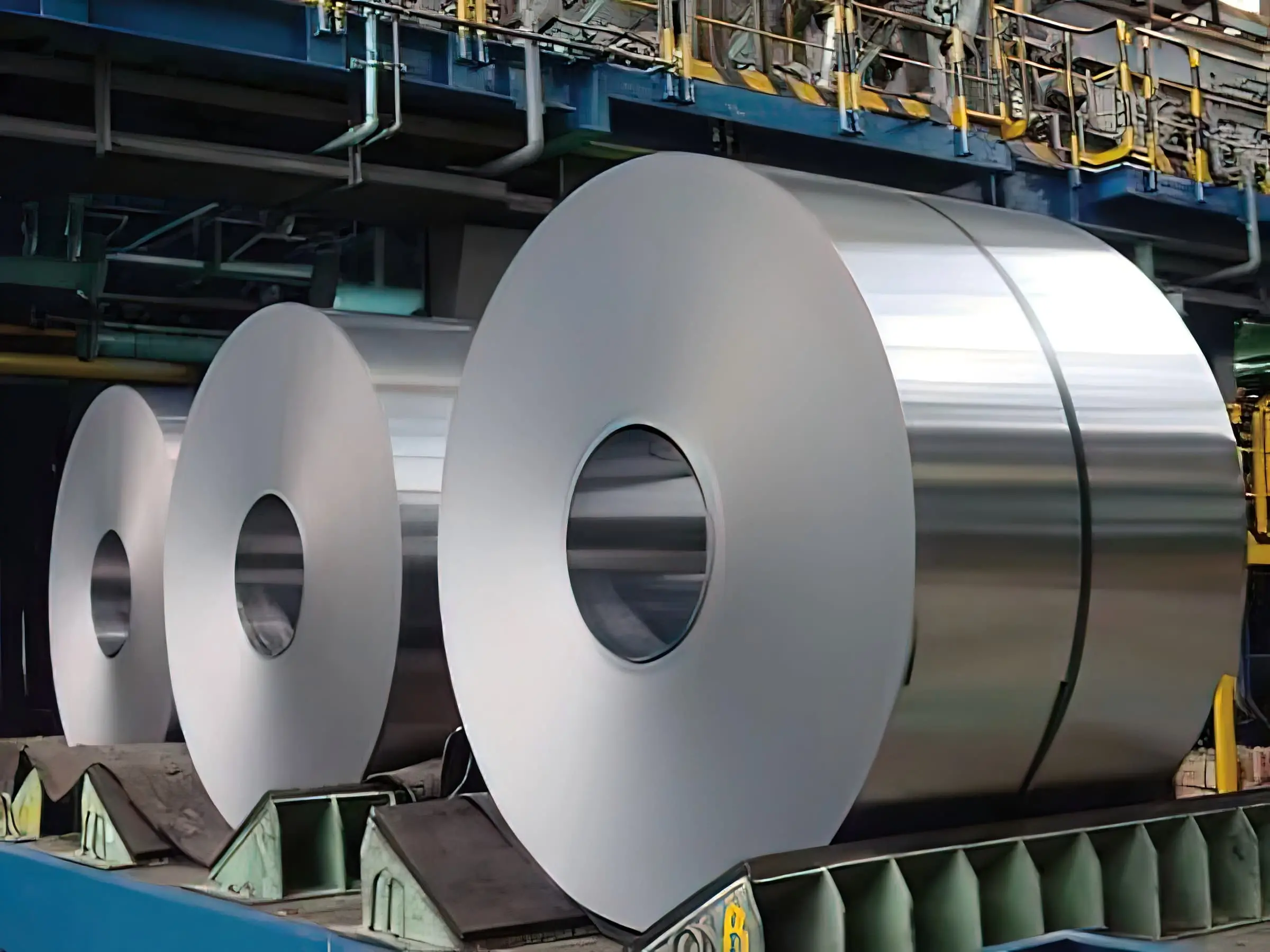

When sourcing electrical steel coils, many buyers start with the grade name. That is useful, but it is not enough.

Two coils with the same nominal grade can still perform differently in core loss, thickness tolerance, coating condition, flatness, and stamping stability. These differences may not be obvious before production, but they can affect transformer core efficiency, motor lamination quality, tooling wear, scrap rate, and long-term operating cost.

For buyers, the goal is not to choose the most expensive grade. It is to choose a coil that matches the application, processing route, and performance target.

This guide explains six electrical steel coil characteristics to check before placing an order.

Quick Answer

For electrical steel coils, buyers should check more than the steel grade.

The most important factors are core loss, magnetic permeability, coil thickness, coating quality, surface and edge condition, mechanical processability, and supplier batch consistency.

For transformer cores, prioritize low core loss, stable magnetic induction, proper insulation coating, and coil consistency.

For motor laminations, pay closer attention to thickness tolerance, punchability, flatness, burr control, and coating durability during high-speed stamping.

1. Magnetic Permeability: How Easily the Core Carries Magnetic Flux

Magnetic permeability tells you how easily magnetic flux can pass through the steel.

Higher permeability allows the core to build the required magnetic field with less excitation energy. In practical terms, this can help improve efficiency and reduce unnecessary energy consumption.

But permeability only matters when it fits the application.

Grain-oriented electrical steel, or GO steel, is designed for strong magnetic performance along the rolling direction. This makes it the standard choice for transformer cores, where magnetic flux mainly follows a fixed direction.

Non-oriented electrical steel, or NO steel, has more balanced magnetic properties in different directions. That makes it more suitable for rotating equipment such as motors and generators, where the magnetic field changes direction during operation.

A distribution transformer and an EV traction motor should not be evaluated with the same material logic. The transformer usually needs strong directional magnetic performance and low no-load loss. The EV motor needs more balanced magnetic behavior, especially under higher-speed and higher-frequency conditions.

This is also why many electrical steel producers separate their product lines into GO steel for transformer-type applications and NO steel for motors, generators, and other rotating equipment.

2. Core Loss: The Cost You Keep Paying After Installation

Core loss is not just a datasheet number. It is the energy a transformer, motor, or generator loses while it runs.

Most of that lost energy turns into heat. For equipment that runs all day, especially transformers, even a small difference in core loss can become meaningful over time.

There are two main reasons this loss happens. One is magnetic loss, caused by the steel being magnetized again and again under alternating current. The other is eddy current loss, caused by small circulating currents inside the steel. These currents do not help the equipment work; they mainly create heat.

That is why electrical steel is made into thin laminated sheets instead of one thick block. Thinner sheets help control eddy current loss, especially in higher-frequency applications such as high-speed motors and EV traction motors.

But lower loss is not always a simple upgrade. Thinner material usually costs more and may be harder to stamp at scale. For buyers, the real question is not “Which grade is better?” but “Does this loss level fit the application and budget?”

For high magnetic induction GOES, HWHG also looks at tested core loss when preparing a quote. Two coils may share the same nominal grade, but their measured loss performance can be different, and that difference may affect pricing.

This gives buyers a more practical comparison point. Instead of judging the coil only by its grade name, they can compare the tested loss data together with price, processing requirements, and the target application.


3. Lamination Thickness: The First Trade-Off After Core Loss

Once buyers understand core loss, the next question is usually practical: what can actually help control it?

One of the first factors to check is lamination thickness.

Electrical steel is made into thin sheets because thinner sheets help limit eddy current loss. In simple terms, they make it harder for waste currents to move around inside the steel and turn into heat.

That is why thinner electrical steel is often used in high-speed motors, EV traction motors, high-efficiency motors, and some high-frequency transformers.

Common electrical steel thicknesses usually range from 0.23 mm to 0.65 mm.

But this is where production starts to matter.

A thinner coil may look better from an efficiency point of view, but it is usually more demanding to process. It can cost more, be harder to punch cleanly, and create more scrap if the stamping line is not well controlled.

For standard 50/60 Hz transformers, the thinnest option is not always necessary. If the efficiency target is moderate, a slightly thicker coil may be easier to process and more stable in production

A simple way to compare it:

Thickness Choice	Where It Usually Makes Sense	What to Watch
Thicker gauge, such as 0.65 mm	Standard applications, easier handling, lower material cost	Higher eddy current loss
Medium gauge, such as 0.35 mm	Balanced cost and performance	Needs to match frequency and efficiency target
Thinner gauge, such as 0.27 mm or below	High-efficiency motors, EV motors, higher-frequency use	Higher cost, harder stamping, stricter processing control

A better thickness choice is usually the one your process can handle consistently, not just the one with the lowest loss on paper.

4. Coating Quality: The Thin Layer That Keeps Laminations Apart

After thickness, the next thing to check is coating.

Thin laminations help control eddy current loss, but only if the sheets stay insulated from each other. The coating is the thin layer that keeps each lamination separated inside the core.

Coating problems are not always easy to catch before production. A coil may look acceptable at incoming inspection, but the coating still needs to hold up during punching, stacking, and later processing.

If it wears, cracks, or becomes uneven, buyers may see poor interlaminar insulation, less stable stacking, higher scrap, or wider variation in tested core loss. On high-volume stamping lines, that kind of variation can quickly affect production rhythm.

Production capability also matters here. When a supplier has large-scale annealing and coating production equipment, coating quality is easier to keep consistent from coil to coil. That consistency matters in later stamping, stacking, and core performance, especially when buyers need stable supply for volume production.

Large-scale electrical steel strip annealing and coating production line (SACL) from HWHG

Common coating types include:

Coating Type	Basic Description	Typical Use
C-3	Enamel or varnish-type coating	General insulation use
C-4	Chemically treated surface	Often used when stress-relief annealing is required
C-5	Organic-based coating	Good insulation and punchability; used in some higher-performance applications
C-6	Inorganic-based coating	Better heat resistance; often used when weldability or high-temperature resistance matters

The right coating depends on the stamping method, annealing requirement, working temperature, storage condition, and whether welding is involved.

5. Mechanical Properties: What the Datasheet Does Not Show Until Production

Magnetic data tells buyers how the steel should perform in the core. It does not always tell them how smoothly the steel will run through production.

That gap shows up quickly on the stamping line.

One coil may punch cleanly and stack without much trouble. Another coil with similar magnetic data may leave more burrs, wear the die faster, or need more frequent adjustment. The material price may be lower, but the line spends more time on tool checks, scrap handling, and quality correction.

That is why mechanical properties should be checked before the order, not after the first production run.

What to Check	Why It Matters
Wear resistance	Helps keep die wear under control during repeated punching.
Formability	Matters when the stator, rotor, or core shape has tighter geometry.
Flatness	Affects how neatly laminations stack and how stable the core size remains.
Burr control	Large burrs can scratch the coating and create problems between laminations.

High-silicon grades are a good example. They can improve magnetic performance, but they may also be harder to punch or form. If the stamping process is not ready for that, the expected efficiency gain may come with lower yield or slower production.

6. Procurement: How to Compare Electrical Steel Without Overpaying

By this point, the question is no longer “Which grade looks better?”

It is whether the coil fits the job.

A grade name can give buyers a starting point. For example, M270-35A usually points to a loss level, 0.35 mm thickness, and non-oriented electrical steel. But the name alone is not enough. Buyers still need to check the test condition, coating, tolerance, and whether the supplier uses the same naming standard.

The application should come next. A high-speed EV motor, a standard transformer, and a small industrial motor do not need the same steel. Higher frequency usually asks for thinner material and lower loss. Standard 50/60 Hz equipment may not need the most advanced grade if the efficiency target is moderate.

This is where overpaying often happens. Buyers choose a higher grade because it looks safer, but the extra performance may not be used. Or the material may be harder to stamp, which adds cost somewhere else.

In real sourcing discussions, buyers are often not only asking which grade is best. They also need to know whether the required thickness, quantity, and processing support are actually available.

Consistency matters too. One good coil does not guarantee stable production. Thickness, flatness, coating condition, core loss, and punching behavior need to stay controlled from batch to batch.

So compare more than price per kilogram. Look at the tested data, the processing risk, the expected scrap, and the operating condition.

If you are comparing electrical steel coils for transformers, motors, generators, or magnetic cores, HWHG can help check the grade, thickness, coating, tested core loss, and processing requirements before you place an order.

Contact HWHG with your application, target grade, thickness, coating requirement, and processing route, and the team can help you narrow down a suitable coil option.

FAQ

When should buyers choose GO steel instead of NO steel?

Use GO steel for transformer cores, where magnetic flux mainly runs in one direction.
Use NO steel for motors and generators, where magnetic flux changes direction during rotation.

Why does higher silicon content improve efficiency?

Silicon helps reduce eddy current loss, so the core wastes less energy as heat.
But too much silicon can make the steel brittle and harder to process.

When is stress-relief annealing needed?

It is used after punching or stamping when processing stress may affect magnetic performance.
This is common for parts with strict core loss requirements or more demanding shapes.

Does welding affect electrical steel cores?

Yes. Welding can damage the coating or change magnetic properties near the heated area.
If welding is required, check the coating type and heat resistance first.

How should buyers compare grade numbers?

Do not compare grade names alone.
Check the tested core loss, thickness, coating type, tolerance, and test conditions.
