Nearly every transformer and electric motor works through magnetic fields — from grid transformers and factory equipment to EV drivetrains and phone chargers. To make that magnetic field useful, the equipment needs a core material that can carry flux efficiently and keep energy loss under control. In most transformer and motor cores, that material is electrical steel, also known as magnetic core steel.

The material itself is not hard to describe. What matters in real use is how well it carries magnetic flux, how much energy it loses as heat, and why the core is built from thin laminated sheets instead of a solid block.

Key Takeaways

Core Function: Electrical steel gives magnetic flux a controlled path inside motors, transformers, and generators.
Key Properties: Good electrical steel has high magnetic permeability and low core loss. In plain terms, it carries magnetic flux well and wastes less energy as heat.
Why Lamination Matters: Electrical steel cores are built from thin insulated sheets, not solid blocks.
Primary Applications: The most important electrical steel uses are in magnetic cores. This is where they are fitted in transformers, electric motors, and generators. Thus, they enhance the performance and power of these devices.

The Core Function: What a Magnetic Core Does

A magnetic core gives magnetic flux a controlled path, keeping it concentrated instead of letting it leak into the surrounding air.

In a transformer, the core directs the magnetic field from the primary coil to the secondary coil. Without that core, the connection between the two coils would be much weaker, and a lot more energy would be wasted.

Think of it like water flowing through a pipe. The pipe keeps the flow moving in the right direction instead of spilling everywhere. A magnetic core does something similar for magnetism: it gives the magnetic field a path to follow.

The "Why": Two Key Properties of Electrical Steel

Electrical steel is commonly used in magnetic cores because it offers a useful balance of high magnetic permeability and low core loss. High permeability helps guide magnetic flux through the core, while low core loss reduces the energy wasted as heat. This balance is what makes electrical steel suitable for transformers, motors, and generators.

High Magnetic Permeability: Providing an Efficient Flux Path

Magnetic permeability describes how easily a material carries magnetic flux. Higher permeability allows the core to guide flux more efficiently, helping motors and transformers maintain strong magnetic coupling with less energy loss.

Ordinary carbon steel may conduct magnetic flux to some extent, but it is not optimized for repeated magnetization in AC motors and transformers. Electrical steel is produced with controlled chemistry and processing, so it can carry magnetic flux more efficiently while keeping magnetic losses lower.

Electrical Steel Property Research from HWHG

Electrical Steel Property Research from HWHG

Low Core Loss: Minimizing Wasted Energy as Heat

In AC equipment, the magnetic field reverses direction again and again. Each reversal creates some energy loss inside the core, and most of that lost energy appears as heat. For motor and transformer cores, reducing this heat is one of the main design goals.

Core loss mainly comes from two sources:

Hysteresis Loss:

As the magnetic field reverses, magnetic domains inside the steel have to realign again and again. That repeated realignment takes energy, and the lost energy turns into heat. Electrical steel uses controlled silicon content and heat treatment to make this repeated magnetization easier, which helps reduce hysteresis loss.

Eddy Current Loss:

A changing magnetic field can also induce small circulating currents inside the steel itself. These are called eddy currents. They do no useful work; they only create additional heat. Silicon helps increase the steel’s electrical resistivity, which limits these currents. Lamination reduces them further by splitting the core into thin, insulated sheets, so large circulating current paths cannot form.

In practice, core loss is not just a number on a datasheet. Lower loss usually means less heat inside the core, which can affect cooling, noise, and core size. For motor, transformer, and generator core production, that makes electrical steel grade and coil quality worth checking early.

Why Lamination Matters: From Electrical Steel Coil to Core Stack

A transformer or motor core may look like one solid piece from the outside, but it is usually not built that way. Inside, it is made from many thin layers of electrical steel. Those layers are stacked together to form the final core.

This is not just a manufacturing habit. It is there to control eddy current loss.

When the magnetic field changes, small currents can form inside the steel. In a solid block, these currents can travel in larger loops, which means more heat and more wasted energy. Thin layers make those loops much harder to form. The current path is broken into smaller sections, so the core loses less energy and runs cooler.

That is also why electrical steel is normally supplied first as coil or strip. The material needs to be thin, consistent, and easy to process before it can become a laminated core. Depending on the grade and application, the steel is often rolled to around 0.20 mm to 0.65 mm thick. It is then slit, stamped, cut, and stacked into the required shape for a motor, transformer, or generator core.

The insulation coating between layers is just as important as the steel itself. A thin oxide or varnish coating separates each sheet from the next, so eddy currents cannot move freely across the whole stack. If the coating is uneven, damaged, or poorly suited to the process, the finished core may lose more energy than expected.

This is also a common concern in real motor core discussions. In one r/Motors thread about damaged AC motor laminations, users pointed out that dents may break the insulation between laminations and increase eddy current loss — a useful reminder that coating quality and handling both matter in core production.

For companies producing motor, transformer, or generator cores, coil quality matters before the steel reaches the stamping line. Thickness consistency, coating quality, and flatness can all affect processing and final core performance.

HWHG supplies electrical steel coils in different grades and thicknesses, helping manufacturers match the material to their core design, processing method, and performance requirements.

Without lamination, AC motors and transformers would have a much harder time controlling heat and energy loss.

Application Examples

Electrical steel is widely used across the power grid, industrial equipment, EV motors, and generators. Here are the main examples:

Transformers (Power Grid to Phone Chargers)

Large transformers run continuously, so even small reductions in core loss improve long-term efficiency. Electrical steel balances high magnetic performance with low loss. For large power transformers, Grain-Oriented (GO) electrical steel is used, optimized to carry flux efficiently in one direction along the magnetic field.

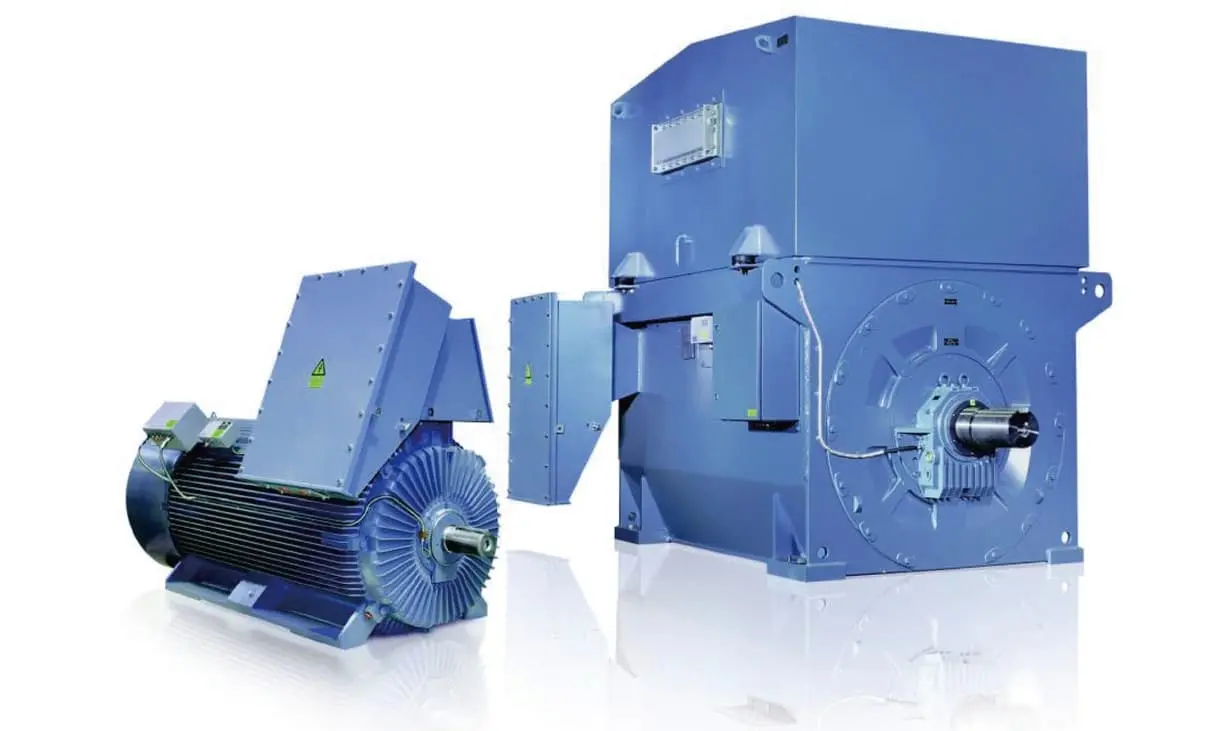

Electric Motors and Generators (EVs, Industrial Machinery, Wind Turbines)

Motors convert electricity into motion, and generators do the reverse. Both use rotating magnetic fields, so cores need low energy loss in all directions. Non-Oriented (NO) electrical steel provides uniform magnetic properties, supporting cooler operation, higher efficiency, and lower noise in practice.

By selecting the appropriate grade and quality of electrical steel, designers can optimize performance across a wide range of electrical machines without excessive heat or energy loss.


Conclusion: The Indispensable Material for a Magnetic World

There are other magnetic materials out there, but electrical steel is still the default choice for most transformers and motors. Mostly because the balance still makes sense: performance, cost, efficiency, and manufacturing scale.

Most end users never notice electrical steel directly, but its performance has a major impact on the efficiency and thermal behavior of electrical equipment.

FAQ

What's the difference between electrical steel and regular carbon steel?

Electrical steel is a special iron-silicon alloy that has been developed for its magnetic properties, like high permeability and low energy loss. Regular carbon steel is developed for mechanical strength and does not possess these magnetic qualities. Using it for a magnetic core would be totally impractical and very inefficient.

Why is silicon added to electrical steel?

Silicon is an important and key element. It markedly increases the steel's electrical resistance. This higher resistance is the major way eddy current losses are decreased. In addition to this, silicon also helps to lower hysteresis loss, further reducing wasted energy.

Can you use a solid iron core instead of laminated electrical steel?

A solid core can be used for a simple DC electromagnet where the field stays constant. Nevertheless, for an AC device such as a motor or transformer, a solid core would be a big mistake. Eddy current loss would increase sharply, leading to excessive heating and poor efficiency.

What are Grain-Oriented (GO) and Non-Oriented (NO) electrical steels?

Grain-Oriented (GO) steel is treated in a way that maximizes its magnetic properties in one direction. As a result, it is the best choice for transformers, where the magnetic field flows in a predictable path. Non-Oriented (NO) steel has uniform magnetic properties in all directions. This feature makes it best for the rotating fields in motors and generators. Engineers can choose the correct material for different electrical steel applications due to the distinction between grain-oriented and non-oriented grades.

Is electrical steel magnetic on its own?

Electrical steel is a "soft" magnetic material. This means that an electric current can easily magnetize it; however, it loses its magnetism almost instantly when the current is turned off. This property is indispensable for AC devices where the magnetic field must reverse direction thousands of times a second.
