Titanium is known for its high strength-to-weight ratio and excellent corrosion resistance, but producing usable titanium involves a much more complex manufacturing process than most common metals.

Unlike steel or aluminum, titanium cannot simply be melted and shaped from readily available metal. It must first be extracted from mineral ores and converted through chemical and metallurgical processes before becoming a usable engineering material.

So how does titanium go from mineral sands to the sheets, plates, and coils used in aerospace, chemical processing, and medical applications?

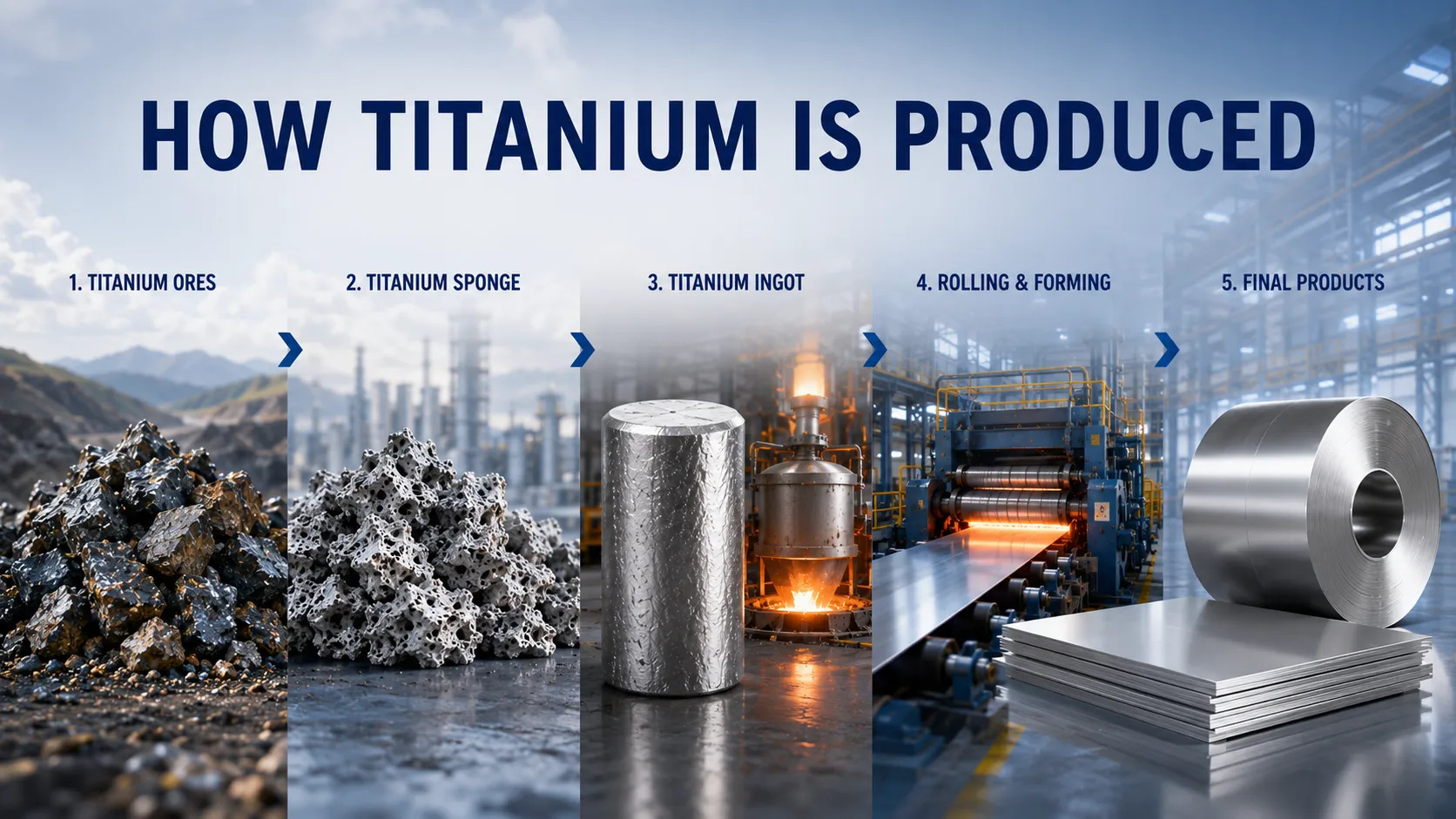

This guide explains the key stages behind titanium production, from mineral processing and titanium sponge production to melting and rolling.

Quick Answer

Titanium production starts with minerals such as ilmenite and rutile. These materials go through chemical processing before being converted into titanium sponge through the Kroll process. The sponge is then melted, alloyed, and formed into products such as titanium sheets, plates, and coils.

Titanium costs more than common metals because its production requires specialized extraction, contamination control, melting, and forming processes. Final product performance depends not only on alloy chemistry, but also on melting quality, forming methods, and quality control during production.

From Titanium Ore to Titanium Sponge

Titanium production begins with mineral ores such as ilmenite and rutile. Through chemical processing, these titanium-bearing materials are converted into titanium sponge, which is later melted and processed into sheets, plates, coils, and other mill products.

1. Processing Titanium-Bearing Minerals into Concentrate

Commercial titanium production begins with titanium-bearing minerals, not ready-made metal. Although titanium is one of the more abundant elements in the Earth's crust, it is usually found combined with other elements in minerals such as ilmenite and rutile. These compounds must be chemically processed before titanium can be converted into metallic form.

The main commercial sources of titanium are ilmenite (FeTiO₃) and rutile (TiO₂). These minerals are often recovered from heavy mineral sands, where they are separated from other non-titanium materials before further refining.

After extraction, the ore goes through crushing, washing, and separation processes to remove unwanted minerals and increase titanium concentration. Gravity separation and magnetic separation are commonly used because titanium-bearing minerals have different density and magnetic properties compared with surrounding materials. The resulting concentrate is then sent for chemical processing.

2. Producing Titanium Sponge Through the Kroll Process

1786700815610-Kroll Process for Titanium Sponge Production .webp

Kroll process converting titanium-bearing materials into titanium sponge

The Kroll process is the main industrial method used to produce metallic titanium today. Instead of producing finished products directly, it creates titanium sponge, a porous material that must be melted and consolidated before further processing.

Compared with steelmaking, titanium production is much less continuous. After each batch, the reactor must be cooled, opened, and prepared for the next production cycle. This handling time reduces productivity compared with continuous metal production methods.

2.1 Chlorination: Preparing Titanium Tetrachloride for Reduction

The first stage of the Kroll process is chlorination. Purified titanium dioxide (TiO₂) is reacted with carbon material, typically petroleum coke, and chlorine gas inside a fluidized-bed reactor to produce titanium tetrachloride (TiCl₄).

The reaction takes place at approximately 900–1000°C and produces titanium tetrachloride (TiCl₄). Before reduction, the TiCl₄ must be purified by distillation to remove unwanted metal chlorides and improve the quality of the intermediate material.

2.2 Reduction: Converting Titanium Tetrachloride into Titanium Sponge

After purification, TiCl₄ is transferred into a sealed reactor containing an inert atmosphere, typically argon. Maintaining this environment is critical because titanium reacts readily with oxygen and nitrogen at elevated temperatures. Even small amounts of contamination can affect the quality of the final metal.

Inside the reactor, molten magnesium removes chlorine from TiCl₄ and leaves behind metallic titanium. The reaction also produces magnesium chloride (MgCl₂), which must be separated during later processing.

The titanium produced at this stage has a porous structure and irregular appearance. It must then go through melting and consolidation before becoming usable mill products.

3. Turning Titanium Sponge into Usable Mill Products

Titanium sponge from the Kroll process cannot be used directly in industrial applications. It must first be compacted, melted, and processed into a dense metal structure before it can be formed into finished titanium products.

Producing Titanium Ingots Through Vacuum Arc Remelting (VAR)

The titanium sponge is first crushed and mixed with alloying elements when a specific grade is required. For example, aluminum and vanadium are added to produce Ti-6Al-4V (Grade 5 titanium), a widely used alloy for aerospace and high-strength applications. The mixture is then compacted into an electrode for melting.

Vacuum Arc Remelting (VAR) melts the titanium electrode under vacuum conditions and produces a more uniform ingot with consistent chemical composition. The process helps reduce impurities, improve material consistency, and prepare the ingot for subsequent forging and rolling operations.

For titanium suppliers, maintaining stable production control throughout these stages is essential. HWHG applies controlled manufacturing procedures to ensure consistent titanium product quality.

1786700818898-HWHG Titanium Coil Production Equipment (1).webp

HWHG titanium production equipment used for processing titanium coil

Processing Titanium Ingots into Sheets, Plates, and Coils

Titanium ingots are reheated and forged into intermediate forms such as slabs and billets. These semi-finished shapes are then passed through rolling mills, where repeated rolling passes gradually reduce thickness and produce titanium sheets, plates, or strip products according to customer specifications.

Finished titanium mill products are used in applications that require low weight, corrosion resistance, and reliable long-term performance. Common examples include aerospace components, chemical processing equipment, heat exchangers, and medical devices.

Why Titanium Production Costs More Than Common Metals

The higher price of titanium is mainly related to its production requirements. Compared with steel and aluminum, titanium requires more specialized extraction, melting, and processing methods.

Why Titanium Requires Controlled Processing Conditions

Titanium has a strong tendency to react with oxygen and nitrogen when heated. To avoid contamination, critical stages such as reduction and melting must be performed in vacuum or inert gas environments. These requirements add equipment costs and make titanium processing more demanding than conventional metals.

Carbon Cannot Be Used as a Reducing Agent

Titanium cannot be produced using carbon reduction methods commonly used in ironmaking. When carbon reacts with titanium, it forms titanium carbide, which can negatively affect the material’s properties and limit its suitability for aerospace and other demanding applications.

Batch Processing Limitations

The Kroll process operates in batches instead of continuous production systems used for metals such as steel. Each batch requires individual processing, cooling, and handling time, which reduces throughput and increases production lead times.

High Energy Requirements

Titanium production requires high-temperature reactions, vacuum processing, and multiple melting stages. These energy-intensive steps add to production costs and are one reason titanium products are priced higher than many conventional metals.

4. Forming Titanium into Final Sheets, Plates, and Coils

After melting and consolidation, titanium ingots undergo a series of thermal and mechanical processing steps to achieve the thickness, shape, and mechanical properties required for different applications.

Forging Titanium Ingots into Workable Intermediate Forms

Titanium ingots are reheated and forged using large presses or forging equipment. This step helps break down the original cast structure, improves material uniformity, and converts the ingot into intermediate forms such as slabs or billets for rolling and further processing.

Rolling Titanium into Flat Products

For flat titanium products, forged slabs are reheated and processed through rolling mills. During rolling, manufacturers monitor surface condition and thickness control because defects introduced at this stage can affect later fabrication.

Depending on the application, the final products can be produced as thick plates, thinner sheets, or long strips that are later formed into coils. For titanium coil supply, factors such as surface quality, material traceability, and compliance with customer specifications are important when evaluating a supplier. HWHG applies controlled manufacturing processes in titanium coil production to maintain consistent quality and meet customer specifications.

1786700812438-Titanium Coil Manufacturing and Finished Product .webp

Finished titanium coil produced through rolling and controlled processing

Other titanium mill products, including bars and rods, are produced through additional forming operations such as extrusion and forging.

What Titanium Buyers Should Consider

Titanium buyers usually evaluate more than material grade and price. Production capability, inspection procedures, and delivery reliability can directly affect product consistency and project schedules. When comparing suppliers, it is important to review alloy capability, manufacturing experience, and the ability to meet required specifications.
