One of the biggest differences between an EV and a gasoline vehicle is how power reaches the wheels. Instead of generating power through combustion and transferring it through a complex mechanical system, an EV uses an electrically controlled powertrain to deliver torque more directly.

This simpler approach is why EVs can respond quickly and operate with fewer mechanical parts. However, the energy conversion process still depends on several key components, each affecting the vehicle’s overall efficiency.

Highlights

An EV powertrain transfers electrical energy from the battery into wheel torque through four main stages: energy storage, power control, electrical-to-mechanical conversion, and speed reduction.
The battery pack stores energy, the inverter regulates power delivery, the traction motor produces torque, and the reducer adjusts motor speed before power reaches the wheels.
The inverter is critical for controlling motor response because it determines how quickly and accurately electrical power changes with driver demand.
EV powertrains are efficient, but losses still occur through battery resistance, inverter switching, motor heat generation, magnetic losses, and mechanical friction.

What Is an EV Powertrain?

An EV powertrain is the system responsible for delivering energy from the battery to the wheels. Its job is not simply to provide electricity, but to control and convert that energy into usable torque for driving.

The basic energy path looks like this:

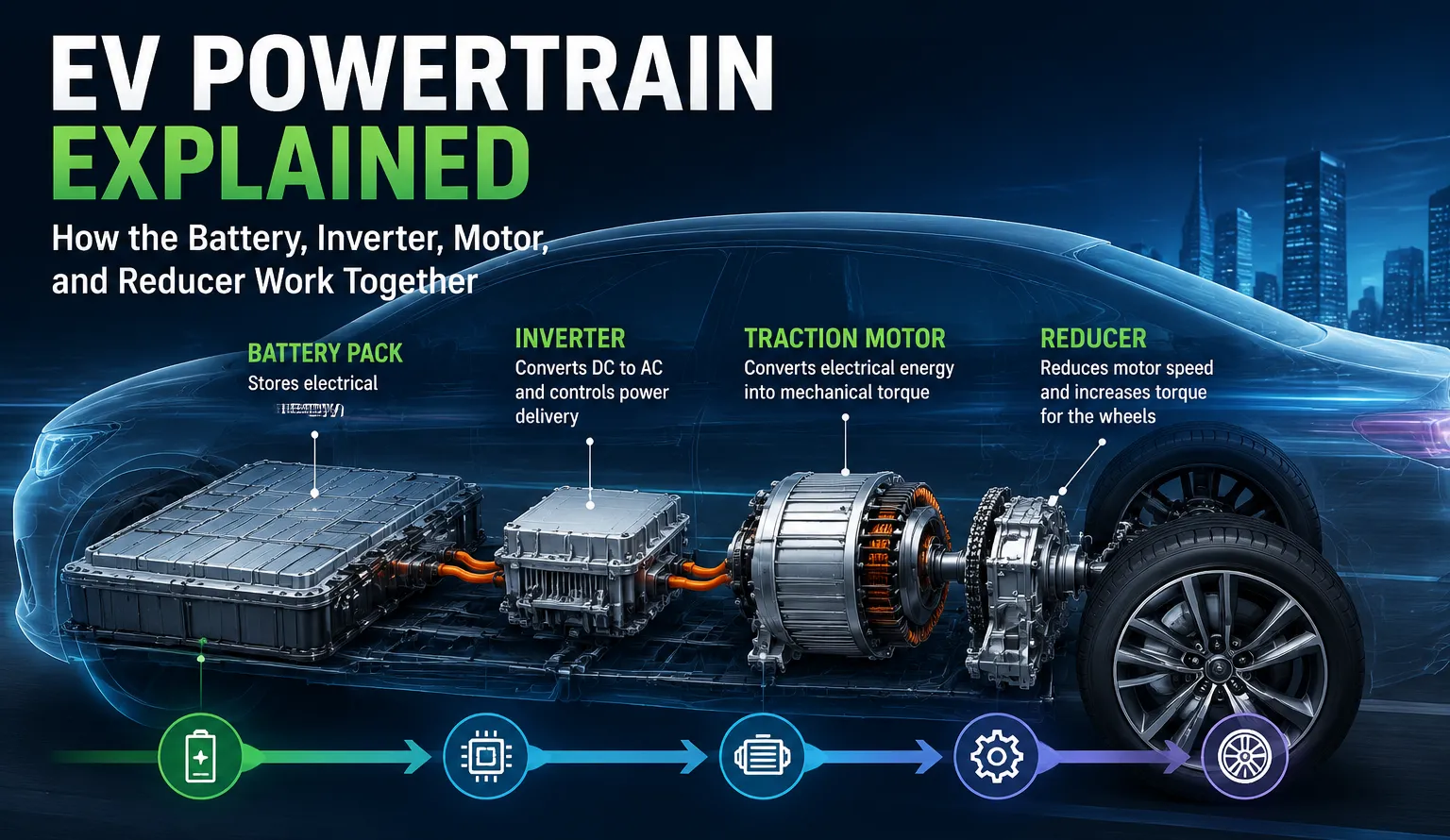

Battery → Inverter → Motor → Reducer/Gearbox → Wheels

1786001536973-How EV Powertrain Energy Flows from Battery to Wheels.webp

EV powertrain energy flow diagram showing battery, inverter, electric motor, reducer, and wheel power transmission

Each part handles a different step in that process. The battery stores the energy, the inverter controls how it is delivered, the motor turns it into torque, and the reducer or gearbox adapts that torque for the wheels.

Looking at these four components one by one makes it easier to see how the whole EV drive system works.

The Four Main Components of an EV Drive System

1. Battery Pack: Where the Energy Is Stored

The high-voltage battery pack is one of the largest components in an EV and serves as the vehicle’s primary energy source. It stores electrical energy and delivers DC power to the rest of the powertrain when the vehicle needs to move.

Most EV battery packs are built from lithium-ion cells grouped into modules and packs. Battery capacity is measured in kilowatt-hours (kWh), which indicates the amount of electrical energy available for driving.

A larger battery can increase driving range, but capacity is only one factor. Real-world range is also affected by vehicle weight, aerodynamic design, drivetrain efficiency, temperature conditions, and driving habits.

In the powertrain, the battery is only the beginning of the energy conversion process. The electrical output cannot be sent directly to the motor without adjustment, which is why the inverter is required.

2. Inverter: Controlling and Converting Power

The battery provides DC power, but the traction motor requires carefully controlled electrical input. The inverter acts as the link between the battery and motor by converting DC power into AC power and adjusting the current and voltage according to driving demand.

When the driver requests acceleration, the vehicle control system calculates the required torque and sends instructions to the inverter. The inverter then adjusts electrical output to the motor, allowing torque delivery to change almost instantly with driver input.

This rapid control of electrical power is one reason EVs can respond quickly to driver input. The motor also contributes to this behavior because electric motors can generate high torque at low speeds without waiting for engine RPM to build.

During regenerative braking, the inverter manages the reversed power flow and controls how recovered electrical energy is sent back to the battery. Unlike conventional vehicles that dissipate braking energy mainly as heat, EVs can recover part of the vehicle’s kinetic energy by operating the motor as a generator.

3. Traction Motor: Turning Electricity Into Motion

The traction motor is the component that converts electrical energy into mechanical torque. The motor shaft produces rotational force, which is then transferred to the wheels through the reducer.

Compared with an internal combustion engine, a traction motor does not rely on pistons, combustion cycles, or a crankshaft to create motion. Instead, electromagnetic force generates rotation directly inside the motor.

Electric traction motors can generate high output force from very low speed and operate across a wide speed range. These characteristics allow EVs to deliver strong acceleration from low speeds without waiting for gear changes.

The traction motor also supports regenerative braking. During deceleration, the motor switches into generator mode and converts part of the vehicle’s kinetic energy into electrical energy, which can then be stored back in the battery.

The motor output is then transferred to the reducer, which adapts speed and torque before power reaches the wheels.

4. Reducer or Gearbox: Matching Motor Speed to the Wheels

EV traction motors usually rotate at speeds much higher than the wheels. The reducer, commonly known as a single-speed gearbox in passenger EVs, converts this high-speed output into lower-speed, higher-torque rotation suitable for driving the wheels.

Because electric motors can deliver usable torque across a broad speed range, most passenger EVs can use a single-speed reduction system instead of a traditional multi-speed transmission. This reduces mechanical complexity and eliminates the need for frequent gear changes.

Once the reducer adapts the motor output for the wheels, the energy conversion path from battery to vehicle movement is complete.

How the EV Powertrain Works Together

When the driver requests acceleration, the battery, inverter, motor, and reducer operate together as a coordinated system.

a. The vehicle control system determines the required torque.

Based on accelerator input, the control system calculates the requested torque output for the motor.

b. The inverter regulates electrical power delivery.

It converts DC power from the battery into controlled AC power and adjusts the output according to motor demand.

c. The motor generates mechanical torque.

It converts electrical energy into rotational force that drives the vehicle

d. The reducer adapts the motor output for the wheels.

It reduces rotational speed, increases usable torque, and transfers mechanical power through the drivetrain.

The motor produces torque.
The motor converts that electrical power into rotation.
The reducer sends that torque to the wheels.
It lowers motor speed, increases wheel torque, and transfers the output through the drivetrain.

This process is continuously adjusted as driving conditions change, including acceleration, cruising, and deceleration. In simplified form, the power flow can be represented as:

Battery → Inverter → Motor → Reducer → Wheels

Where Does an EV Powertrain Lose Energy?

The energy stored in an EV battery does not reach the wheels without losses. As power moves through the battery, inverter, motor, and reducer, some of it is converted into heat through electrical resistance, switching, magnetic losses, and mechanical friction.

1786001532854-Where EV Powertrain Energy Losses Occur Battery, Inverter, Motor, and Reducer.webp

EV powertrain energy loss analysis showing battery resistance, inverter losses, motor copper losses, iron losses, and reducer friction

The battery generates heat because of internal resistance. In the inverter, energy is lost during switching and conduction. The reducer is usually more efficient than the electrical parts of the system, although gears and bearings still add friction.

Inside the traction motor, current flowing through the windings creates copper losses. The changing magnetic field in the stator and rotor core produces iron losses, mainly hysteresis and eddy-current losses.

These core losses become more noticeable as motor speed and electrical frequency increase. Lamination thickness, resistivity, magnetic grade, and flux density all affect how much energy is lost in the core.

Electrical steel remains the standard material for most traction motor cores because it combines suitable magnetic performance with mechanical strength and established manufacturing processes. In designs where high-frequency losses become a larger concern, thinner electrical steel grades or alternative soft magnetic materials may be considered.

Why Small Efficiency Improvements Matter

Reducing powertrain losses, even by a small amount, allows more battery energy to be converted into useful wheel output. Lower losses also reduce heat generation, which can reduce the workload required from the vehicle’s thermal management system.

Efficiency improvements in individual components may appear minor, but together they can have a measurable impact on vehicle range and energy consumption.

For EV manufacturers, improving efficiency is not only about increasing peak performance. It is about reducing losses throughout the powertrain so that more of the battery’s energy can be used for actual driving.
