Ferrite and electrical steel are both soft magnetic materials, but they are suited to very different operating conditions.

Electrical steel is commonly used in mains transformers, motors, and generators, while ferrite is more often found in switch-mode power supplies, high-frequency inductors, RF circuits, and EMI filters. Frequency usually narrows the choice quickly, but it does not select the material grade for you.

For most projects, the choice starts with three questions:

What is the operating frequency and waveform ?
How much magnetic flux or DC bias must the core handle?
How much core loss and temperature rise can the design tolerate?

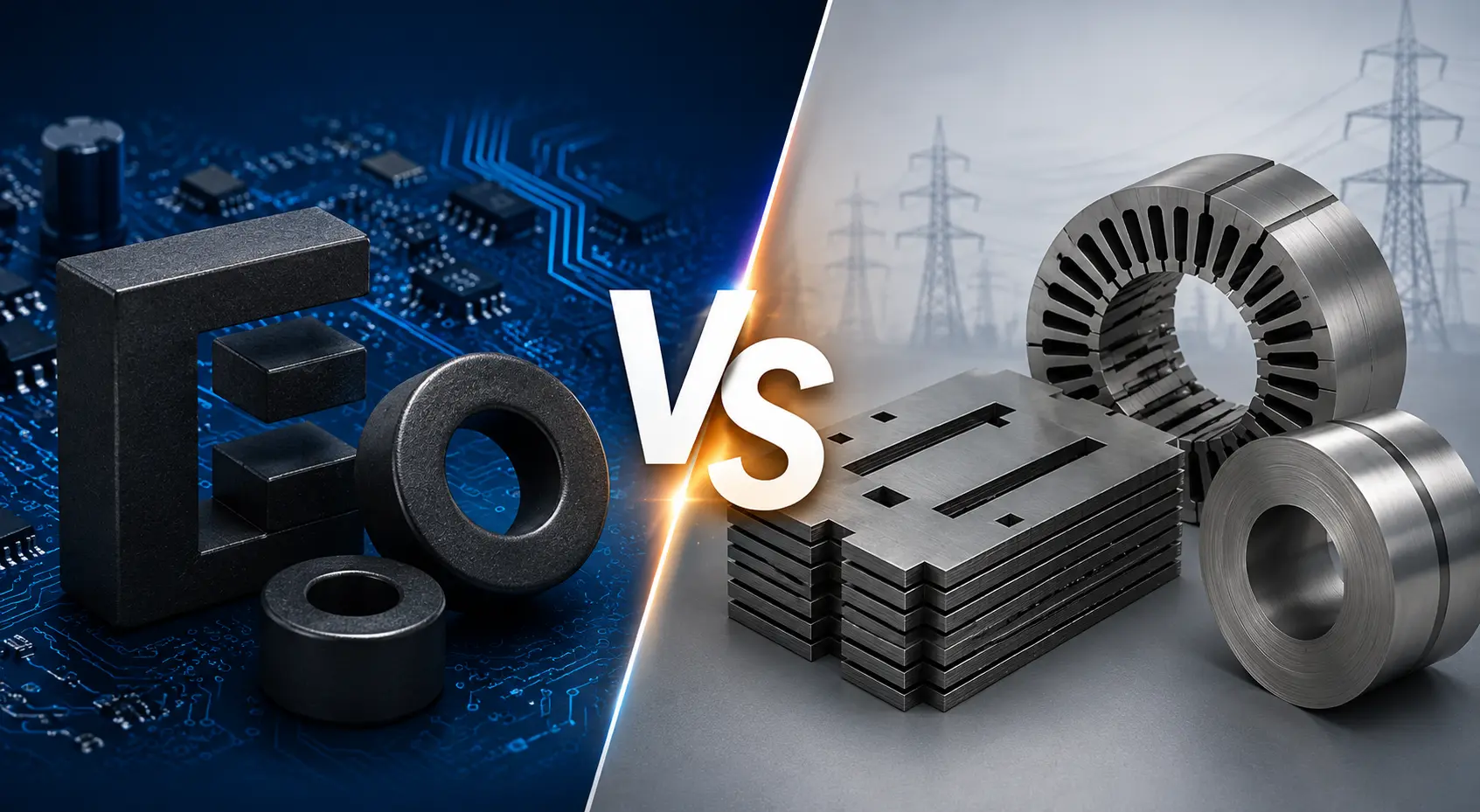

1782975477329-Ferrite cores and laminated electrical steel cores comparison .webp

Ferrite cores and laminated electrical steel cores comparison

Quick Answer

Application	Typical Choice	Main Reason
50/60 Hz transformer	Grain-oriented electrical steel	High saturation flux density and low line-frequency loss
Motor or generator	Non-oriented electrical steel	Suitable for magnetic fields that change direction
SMPS transformer	Power ferrite	Lower loss at tens or hundreds of kilohertz
High-frequency inductor	Ferrite or powder core	High-frequency performance and available core shapes
EMI filter or common-mode choke	Ferrite	Useful impedance and loss at noise frequencies

Use the table to choose the material family. Then use the supplier’s loss, saturation, bias, and temperature data to select the actual grade.

Why Ferrite and Electrical Steel Behave Differently

The difference starts with how the two materials are built. Electrical steel is a conductive iron–silicon alloy, while ferrite is a high-resistivity ceramic.

Because electrical steel conducts electricity, it is formed into thin, insulated laminations to control eddy-current loss. Grain-oriented electrical steel, or GOES, is used mainly in transformers, while non-oriented electrical steel, or NOES, is more common in motors and generators.

Ferrite limits eddy currents through the material itself. Its high electrical resistivity makes it better suited to high-frequency operation, but the tradeoff is lower saturation flux density and a more brittle structure. Common soft-ferrite families include MnZn and NiZn.

The practical differences are easier to see side by side:

Property	Electrical Steel	Ferrite
Material structure	Conductive iron–silicon alloy	High-resistivity iron-oxide ceramic
Eddy-current control	Thin, insulated laminations	Inherently high electrical resistivity
Typical saturation flux density at room temperature	Approximately 1.8–2.0 T	Approximately 0.3–0.5 T, grade-dependent
Main magnetic advantage	Higher flux-handling capability	Lower high-frequency eddy-current loss
Mechanical behavior	Tougher and suitable for stamping and stacking	Hard, brittle, and vulnerable to chipping or cracking
Typical construction	Laminated or wound steel core	Pressed and sintered core

How Engineers Choose Between Ferrite and Electrical Steel

In practice, three limits drive the choice: operating frequency, usable flux swing, and core temperature. A material can perform well in one area and still fail the design in another.

1. Operating Frequency: The First Filter

A core material that works efficiently in a 50 Hz transformer can generate excessive heat in a high-frequency converter. Frequency is therefore the fastest way to eliminate unsuitable material families.

At 50 or 60 Hz, laminated electrical steel is normally the better fit. It can operate at a relatively high flux density without making the core unnecessarily large.

As switching frequency rises, eddy-current loss becomes harder to control. Thinner laminations can help, but for transformers and inductors operating at tens or hundreds of kilohertz, ferrite is usually the more practical starting point.

1782975483659-Frequency range comparison between electrical steel and ferrite cores .webp

Frequency range comparison between electrical steel and ferrite cores

Do not use a fixed frequency as a universal crossover point. Thin electrical-steel laminations operated at low flux may remain workable above line frequency, while a poorly selected ferrite grade can overheat within its nominal frequency range. Flux swing, waveform, temperature, lamination thickness, and core geometry can move the practical boundary.

2. How Much Flux Can the Core Carry?

1782975486934-Saturation flux density comparison between ferrite and electrical steel .webp

Saturation flux density comparison between ferrite and electrical steel

A core that handles high frequency well may still be the wrong choice if it cannot carry the required magnetic flux without saturating.

Electrical steel has a clear advantage in flux capacity. At room temperature, its saturation flux density is typically around 1.8–2.0 T, compared with roughly 0.3–0.5 T for many power ferrites. In low-frequency transformers, motors, and generators, that difference can reduce the core cross-section needed for a given design.

Ferrite operates at a much lower flux density, but the penalty is easier to manage in high-frequency converters. At a given voltage and duty ratio, the shorter switching period reduces the volt-seconds applied in each cycle. The magnetic component can therefore remain compact even with a smaller flux swing.

As the core approaches saturation, magnetizing current rises sharply, increasing heat and stress on the winding and switching devices.

This is where a first-pass material choice can become expensive: the core may survive, but the winding, MOSFETs, or protection circuit may not.

3. Will the Core Run Too Hot?

A core can stay below saturation and still fail thermally. Core loss becomes heat, and that heat may set the usable operating point before Bsat does.

Core loss depends strongly on frequency, flux swing, waveform, temperature, and material grade. A ferrite that performs well at 100 kHz may run too hot at 500 kHz—or at the same frequency with a larger flux swing.

Do not select a material from the headline loss figure on the first page of a datasheet. That value may have been measured with a sinusoidal waveform, a convenient temperature, and no DC bias. Check the loss curves under conditions close to the actual design. When the published test waveform differs from the converter waveform, use the supplier’s calculation method and confirm the result on a wound prototype.

Which Core Material Fits Each Application?

Mains Power Transformers

Start with: Grain-oriented electrical steel

At 50 or 60 Hz, grain-oriented electrical steel (GOES) combines high flux capacity with low loss along the rolling direction. Transformer cores are arranged so that most of the magnetic path follows this direction. For engineers comparing several GOES grades, HWHG’s product data provides a useful reference for thickness, core loss, and test conditions.

1780384596857-HWHG Electrical Steel Label.webp

Example of an HWHG Electrical Steel Test Certificate

Ferrite gains little from its high electrical resistivity at line frequency. Its lower saturation flux density would also require a larger core for the same power rating.

For this application, the main risk is usually not choosing between ferrite and steel. It is choosing the wrong GOES grade, joint design, lamination thickness, or operating flux density.

Motors and Generators

Most motor and generator stators start with non-oriented electrical steel.

Motors and generators need magnetic properties that remain relatively consistent in different in-plane directions. This makes non-oriented electrical steel (NOES) a practical choice for stamped and stacked stator and rotor laminations.

In inverter-driven motors, the grade should not be selected from 50 or 60 Hz loss data alone. Switching harmonics can add higher-frequency loss, making thinner laminations or lower-loss grades worth considering. High-speed rotors may also require additional mechanical strength.

Switch-Mode Transformers and Inductors

For an SMPS transformer, power ferrite is normally the default candidate. Energy-storage inductors require a separate comparison between gapped ferrite and powder cores.

Power ferrite is commonly used in switch-mode transformers because it keeps eddy-current loss manageable at switching frequencies where conventional electrical steel would generate excessive heat.

For inductors carrying significant DC current, a gapped ferrite core may work well. A powder core with a distributed air gap may provide a more gradual change in inductance under DC bias, depending on the material.

Choose gapped ferrite when controlled inductance and relatively low AC loss are the priorities. A powder core is often easier to manage when the inductor carries substantial DC current and some gradual inductance roll-off is acceptable.

EMI Filters and Common-Mode Chokes

Select a ferrite whose impedance range overlaps the noise that must be suppressed.

Ferrite serves a different purpose in an EMI component than in a power transformer. Depending on frequency, noise suppression may come from inductive impedance, magnetic loss, or both.

MnZn ferrites are widely used in lower-frequency and high-permeability suppression applications, while NiZn ferrites are more common as the target frequency moves higher.

For EMI work, initial permeability is not enough. Check the supplier’s impedance-versus-frequency curve for the actual core shape and turn count.

Final Check

Choosing ferrite or electrical steel is not enough. The exact grade must also match the operating frequency, flux density, temperature, and manufacturing process.

Before ordering, engineers can review the required grade, thickness, coating, and application conditions with HWHG to reduce the risk of a material mismatch.

Check the supplier’s data first, then test the finished component under real operating conditions. The wrong grade or assembly method can still cause overheating, inductance changes, or early failure.

FAQ

Can ferrite crack during assembly?

Yes. Ferrite is hard but brittle, so excessive winding pressure, clamping force, or rough handling can chip or crack the core. Damage may change the effective magnetic path, shift inductance, or affect the air gap.

What should engineers check when specifying electrical steel?

Check whether the design requires GOES or NOES, then confirm lamination thickness, loss at the specified frequency and flux density, coating type, cutting or stamping requirements, and whether stress-relief annealing is needed.

What should engineers check when specifying ferrite?

Check core loss at the intended frequency, flux swing, and temperature, along with saturation flux density at the highest operating temperature. Also confirm permeability or AL value, core dimensions, air-gap tolerance, and handling limits.
