A magnetic shield is only as effective as the material behind it.

In many projects, shielding problems are not caused by poor fabrication or installation. They occur because the selected material cannot handle the magnetic environment in which it operates.

Choosing the right shielding material requires understanding the magnetic environment in which the shield will operate.

magnetic-shielding-materials-comparison

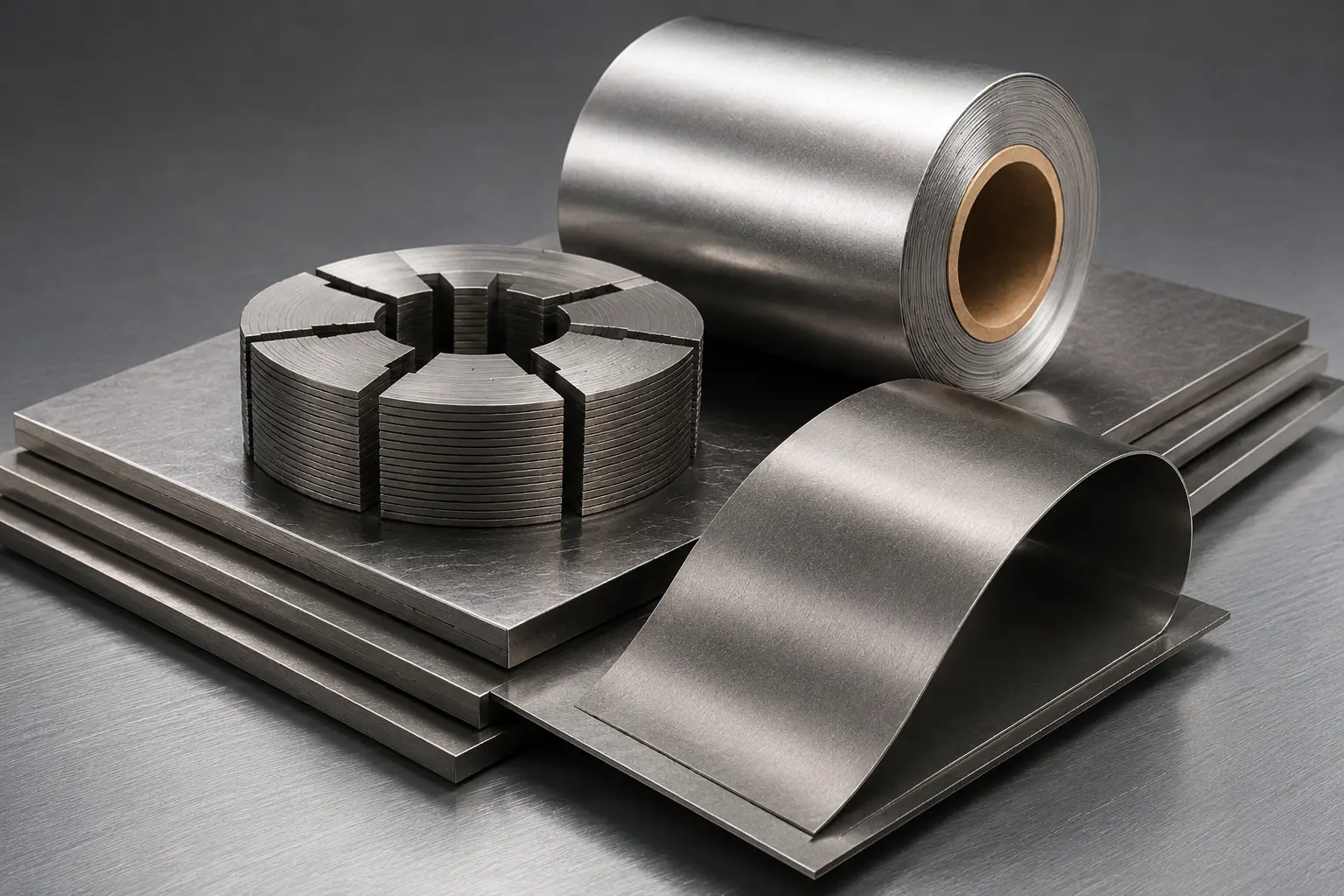

Common magnetic shielding materials including mu-metal, nickel-iron alloy, silicon steel, and low-carbon steel

Key Takeaways

Start with the magnetic field, not the material. Field strength is often the factor that determines which shielding materials are worth considering.
Use Mu-metal when shielding weak magnetic fields around sensors, scientific instruments, and other highly sensitive equipment.
Consider nickel-iron alloys when Mu-metal may be at risk of saturation but steel-based materials are not yet necessary.
Use silicon steel or low-carbon steel for transformers, motors, generators, high-current conductors, and other strong-field applications.
Consider a multi-layer design when both high attenuation and strong saturation resistance are required.
The most common shielding mistake is choosing a material based on permeability alone without considering saturation.

What Is Magnetic Shielding?

Magnetic shielding controls how magnetic flux moves through a system.

Rather than blocking a magnetic field, a shield provides a path that encourages magnetic flux to travel through the shielding material instead of the area being protected.

This approach is commonly used to:

Protect sensitive electronics and sensors from external magnetic interference.
Contain magnetic fields generated by equipment so they do not affect nearby systems.

Applications range from laboratory instruments and medical equipment to industrial systems, telecommunications infrastructure, and electric vehicles.

Permeability vs. Saturation: Why Both Matter

Magnetic permeability shows how easily a material can carry magnetic flux. For shielding, higher permeability usually means the material can draw more of the field away from the protected area.

That is why nickel-iron alloys are often used around precision sensors, scientific instruments, medical electronics, navigation systems, and measurement equipment. When the magnetic field is weak, a high-permeability material can deliver strong attenuation without adding much thickness.

The problem is that permeability does not stay useful under every condition.

Each magnetic material can carry only a certain amount of flux. Once that limit is reached, the material saturates. After saturation, permeability drops, and the shield loses much of its ability to redirect the field.

This is where material selection often goes wrong. A high-permeability alloy may work well near a low-level magnetic source but lose effectiveness near a transformer, motor, or high-current conductor. In that environment, a material with lower permeability but higher saturation capability may give better real-world shielding performance.

This is why permeability and saturation should always be considered together during material selection.

magnetic-permeability-vs-saturation-curve

Magnetic permeability and saturation behavior of shielding materials

How Engineers Select Magnetic Shielding Materials

Most material selection decisions can be narrowed down quickly once the magnetic environment is understood.

When evaluating a magnetic shielding application, engineers usually consider:

How strong is the magnetic field?
Is the material likely to saturate?
How much attenuation is required?
Are cost, weight, fabrication, or space constraints important?

The answers to these questions often narrow the material options quickly.

Application Requirement	Common Material Choice
Weak magnetic fields and maximum attenuation	Mu-metal
Moderate field strength with balanced performance	50% Nickel-Iron Alloy
Strong magnetic fields from motors, generators, or transformers	Silicon Steel
Strong fields with cost-sensitive requirements	Low-Carbon Steel
High attenuation and strong saturation resistance	Multi-layer shielding system

Comparing Common Magnetic Shielding Materials

The best shielding material depends less on the material itself and more on the magnetic environment it is expected to handle. Some perform exceptionally well in weak magnetic fields, while others are better suited to handling stronger magnetic flux without saturating.

Material	Relative Permeability	Saturation Capability	Typical Applications
Mu-metal	Very High	Low	Precision electronics, sensors, scientific instruments
50% Nickel-Iron Alloy	High	Medium	Industrial electronics, moderate-field environments
Silicon Steel	Medium	High	Transformers, motors, generators
Low-Carbon Steel	Low	Very High	Strong-field shielding, large enclosures, outer shielding layers

For Weak Magnetic Fields: Mu-metal

Mu-metal is typically selected when shielding performance is the highest priority. Its extremely high permeability makes it effective for sensors, scientific instruments, medical electronics, and other low-field applications where even small amounts of magnetic interference can be problematic.

Its weakness is saturation under strong magnetic fields. When stronger magnetic forces are involved, other materials may provide more reliable performance.

For Moderate Magnetic Fields: Nickel-Iron Alloys

When field strength exceeds the comfort zone of Mu-metal, nickel-iron alloys often provide a better balance between attenuation and saturation resistance.

They fill the gap between high-permeability Mu-metal and high-saturation steel-based materials.

For Strong Magnetic Fields: Silicon Steel and Low-Carbon Steel

Strong magnetic fields require a different design approach.

Although silicon steel is best known for transformer and motor cores, it is also used in magnetic shielding applications where saturation resistance is more important than maximum permeability. Manufacturers such as HWHG supply electrical steel coils for transformers, motors, generators, and other magnetic systems where high magnetic flux density and saturation resistance are important design considerations.

Low-carbon steel offers even greater saturation capability and lower cost, making it suitable for large shielding structures and industrial installations.

In many strong-field applications, avoiding saturation is more important than maximizing permeability.

Silicon steel used in transformer cores for high magnetic flux applications

When One Material Is Not Enough

Many high-performance shielding systems combine multiple materials.

A common design strategy is to place a high-saturation material such as low-carbon steel on the outside and a higher-permeability material on the inside. The outer layer handles most of the magnetic flux, while the inner layer provides additional attenuation.

When both strong-field performance and high attenuation are required, multi-layer shielding often delivers the best results. This approach is commonly used in precision instrumentation, medical equipment, and other applications where a single material cannot meet all performance requirements.

Other Factors That Can Change the Material Choice

Permeability and saturation can point you toward the right material family, but they do not finish the selection process. A material that looks suitable on paper can still underperform if the operating conditions are ignored.

Frequency

Start with the type of field you are trying to control. A DC magnetic field, a low-frequency AC field, and broader electromagnetic interference may require different shielding strategies. Before choosing a material, confirm whether the problem is mainly magnetic shielding, EMI shielding, or a mix of both.

Fabrication Stress

High-permeability alloys can lose shielding performance after bending, welding, stamping, or improper forming. This matters when the shield needs to be drawn into a complex shape, assembled into an enclosure, or installed in a tight space.

For precision shields, the fabrication process is not separate from the material choice. It is part of the shielding design.

Temperature

A shield installed near motors, transformers, power electronics, or industrial equipment may face elevated temperatures during operation. If the material’s magnetic properties shift under heat, the shield may not perform the same way in the field as it did under room-temperature assumptions.

Size, Cost, and Production Reality

The highest-performing alloy is not always practical for a large enclosure, a cost-sensitive product, or a design with tight lead-time requirements. Material availability, forming difficulty, heat treatment, installation method, and maintenance all affect the final decision.

For large industrial projects, engineers must also consider supplier capability, material consistency, lead times, and long-term availability. Companies such as HWHG provide electrical steel coil solutions for power equipment and industrial applications where reliable supply can be just as important as magnetic performance.

1780284495311-steel wqg .webp

Electrical steel coils supplied for transformer and motor applications from HWHG

Final Thoughts

There is no universal best material for magnetic shielding.

The same material can perform exceptionally well in one application and poorly in another, depending on field strength, saturation risk, operating conditions, and design constraints.

Successful shielding designs come from matching the material to the magnetic environment—not from choosing the material with the highest permeability.

That is where most shielding decisions are made — not in the material table, but in the actual conditions the shield has to survive.
