Electrical steel coatings provide electrical insulation between laminations, helping reduce eddy-current loss in motors, transformers, and generators.

Depending on the coating type, they can also influence corrosion protection and downstream processing.

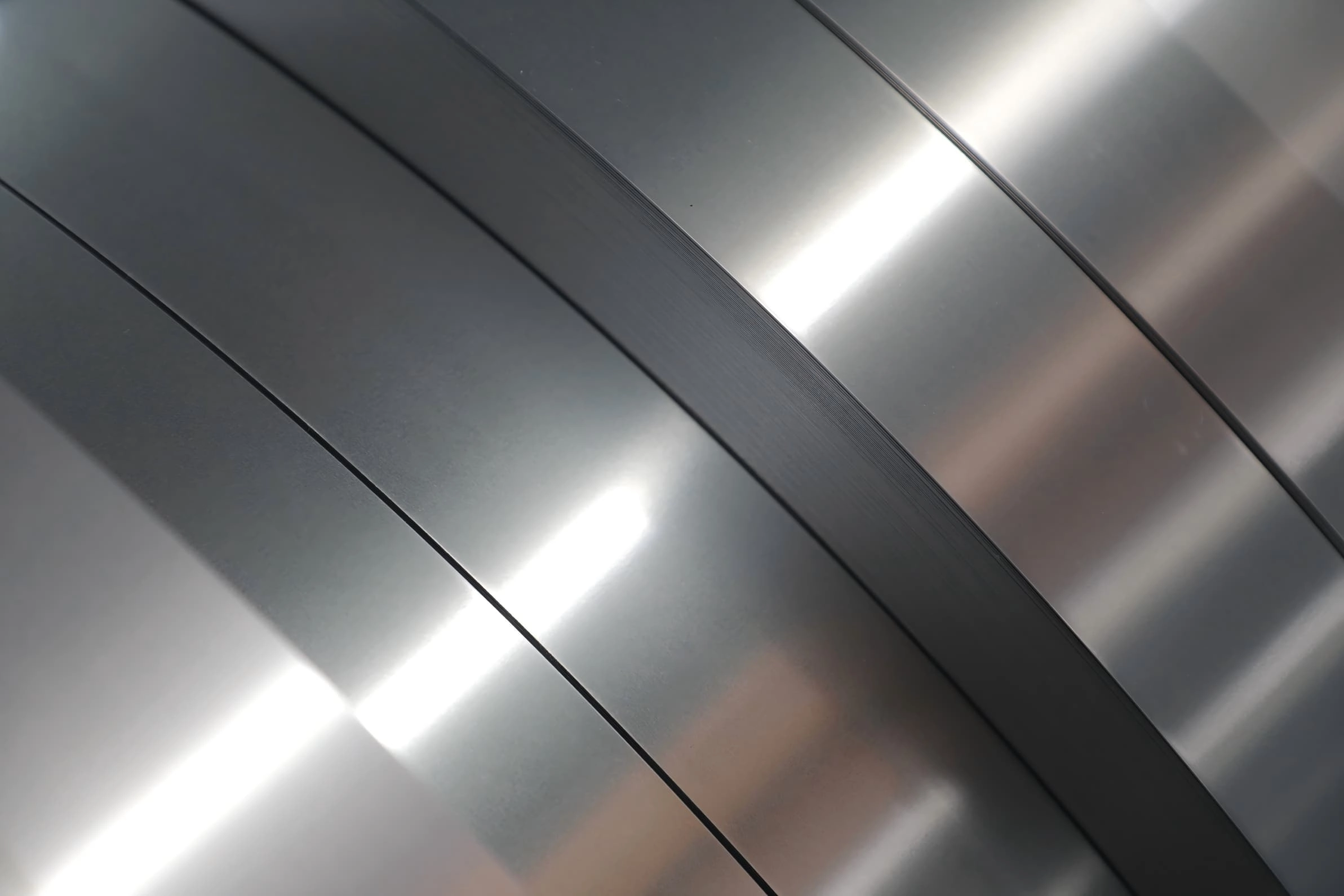

Electrical steel coating creating insulation between laminations to reduce eddy current loss

Key Points

Electrical steel coatings electrically isolate adjacent laminations, helping reduce eddy-current loss.

Coating classes such as C3, C4, C5, and C6 differ in insulation performance, heat resistance, and processing characteristics.

C5 is commonly used where high interlaminar resistance or post-punch annealing is required, while C6 offers a balance of insulation and processability.

Bonding varnish differs from standard insulation coatings because it also bonds laminations together during core assembly.

Why Electrical Steel Needs an Insulation Coating

In laminated magnetic cores, the coating works together with the thin sheet geometry to restrict current flow between adjacent laminations.

Reducing Eddy Current Losses

Electrical steel cores are built from thin laminations to restrict eddy-current paths. Insulation between adjacent sheets increases interlaminar resistance, helping reduce eddy-current loss and associated heat.

Corrosion Protection

Many electrical steel coatings also provide some protection against moisture and surface contamination during storage, handling, and service.

Manufacturing and Punchability

Some coatings can improve punchability and reduce friction during stamping. This can support cleaner edges, lower tool wear, and more consistent lamination production.

Uniform coating application also depends on consistent strip geometry and surface condition before coating. At HWHG, a Six-stand Tandem Mill is used to maintain gauge control and strip flatness before coating.

Six-stand tandem mill used for electrical steel strip thickness control

Types of Electrical Steel Coatings

Electrical steel coatings are commonly identified by coating classes such as C0, C3, C4, C5, and C6. These designations describe different coating systems and processing characteristics.

C0 Electrical Steel Coating

C0 is not an intentionally applied coating. It refers to the thin oxide layer that naturally forms on the steel surface during processing.

Its insulation capability is limited, so it is generally used only where interlaminar insulation is not a major requirement.

C3 Electrical Steel Coating

C3 coatings are generally organic coating systems. They provide electrical insulation but have lower heat resistance than inorganic coating types.

C4 Electrical Steel Coating

C4 coatings are chemically treated coating systems that provide electrical insulation with improved heat resistance compared with basic organic coatings.

C5 Electrical Steel Coating

C5 is an inorganic insulation coating commonly used where high interlaminar resistance and heat resistance are required. It can also be suitable for electrical steel that undergoes stress-relief annealing after lamination processing.

C6 Electrical Steel Coating

C6 coatings combine organic and inorganic components to balance electrical insulation with punchability and processing flexibility.

What Is Bonding Varnish for Electrical Steel?

Bonding varnish is used when electrical steel laminations need to be bonded together during core assembly. In addition to providing electrical separation between laminations, the bonding layer can reduce the need for welding or other mechanical joining methods in some core designs.

The bonding process typically uses heat and pressure, so the varnish system must be compatible with the electrical steel grade and the downstream manufacturing process.

Unlike a standard insulation coating, bonding varnish serves both as an insulating layer and as a bonding medium between laminations.

How to Choose an Electrical Steel Coating

Coating selection depends on how the laminations will be processed and what electrical and manufacturing performance the core requires.

Will the Laminations Be Annealed?

If stress-relief annealing is required after punching, the coating must maintain its insulating properties at elevated temperatures. In most cases, this points toward inorganic coatings such as C5.

Annealing conditions must also be controlled so the coating retains stable insulation performance. HWHG's Strip Annealing and Coating Line (SACL) combines continuous annealing and coating processes to help maintain coating consistency and magnetic property stability across production batches.

1780382941109-Decarburization & Nitriding Line.webp

HWHG's Strip Annealing and Coating Line combines continuous annealing and coating processes to improve coating consistency and magnetic property stability.

Is Interlaminar Resistance the Priority?

C5 is commonly used where high interlaminar resistance and heat resistance are required. C6 is more suitable when insulation performance must be balanced with punchability and processing flexibility.

Coating requirements can also differ between transformer-grade GOES and motor-grade NGOES.

How Important Is Manufacturing Efficiency?

In high-volume lamination production, punchability and tool wear can have a larger effect on production efficiency. C6 is often used when easier processing is a priority.


Coated electrical steel coil used for motors transformers and generators

For coated electrical steel coils, HWHG can support coating selection based on grade, annealing process, and downstream manufacturing requirements.

FAQ

What is an electrical steel insulation coating?

It is a thin insulating layer applied to electrical steel strip or sheet before the material is assembled into a laminated magnetic core.

What is C5 coating on electrical steel?

C5 is an inorganic electrical steel insulation coating used where high interlaminar resistance and heat resistance are required.

What is the difference between C5 and C6 electrical steel coatings?

C5 is primarily an inorganic coating with strong heat resistance, while C6 combines organic and inorganic components to provide a balance of insulation and processability.

What is electrical steel bonding varnish?

Bonding varnish provides electrical insulation while also allowing laminations to be bonded together during core assembly.

Can electrical steel coating withstand annealing?

Some coating systems are designed to retain insulation performance after stress-relief annealing. The required coating depends on the annealing temperature and process.
