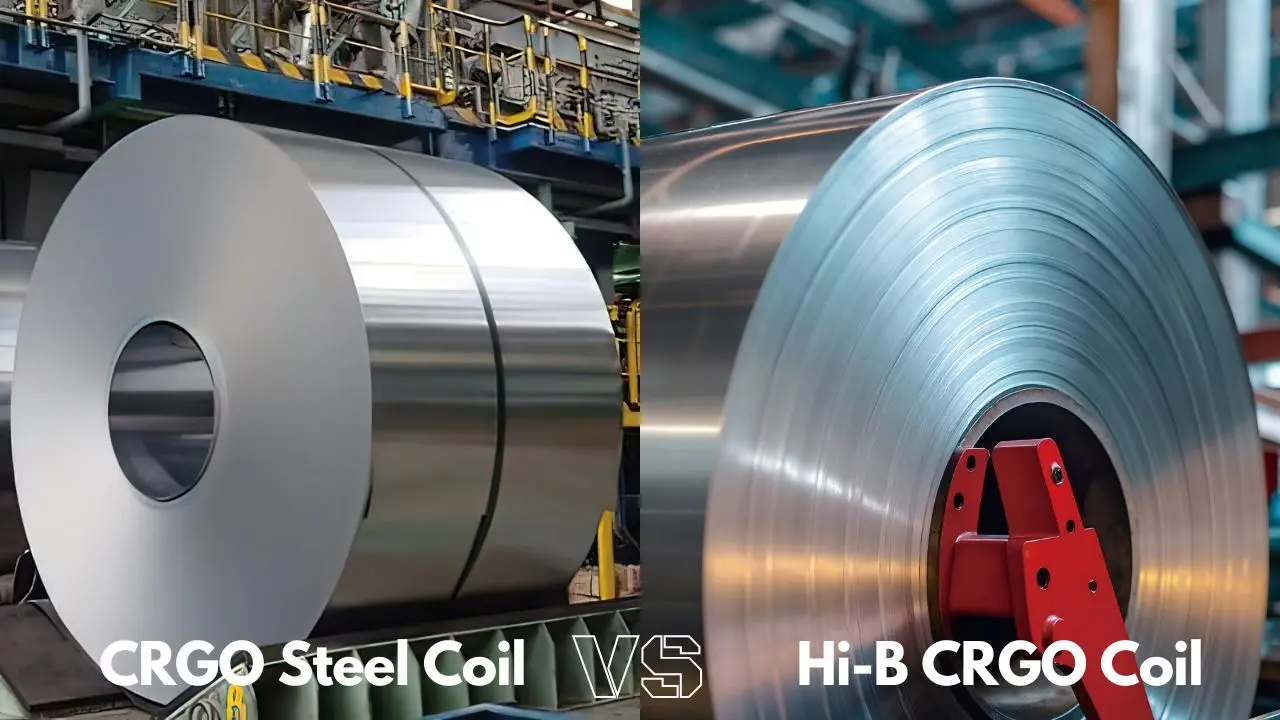

For most transformer core projects, the CRGO vs. Hi-B choice comes down to this: lower upfront steel cost, or lower no-load loss over decades of operation.

Standard CRGO coil works well when the project is cost-sensitive. Hi-B CRGO coil costs more, but it can help transformer core manufacturers reduce core loss, improve permeability, and meet stricter efficiency targets in continuously energized transformers.

Quick Answer

Hi-B is a high-permeability CRGO grade. Its tighter grain orientation helps reduce core loss and improve magnetic performance.
No-load loss is the main difference. Hi-B usually has lower core loss at the same flux density, which matters most in transformers that stay energized 24/7.
Standard CRGO still has a place. It is often the better choice for smaller, cost-sensitive, or lower-duty transformers.
Hi-B is easier to justify in larger transformers. The higher steel cost can be offset by lower no-load loss over 20–30 years of operation.
The final choice should be based on TCO. Steel price, flux density, guaranteed losses, noise limits, efficiency standards, and loss capitalization values all affect the real cost.

What Is Conventional CRGO Steel?

CRGO is the cold-rolled form of grain-oriented electrical steel, designed mainly for transformer cores where magnetic flux follows a predictable path. Its aligned grain structure allows magnetic flux to move more efficiently along the rolling direction.

In simple terms, CRGO works best when the magnetic flux follows the grain direction. This helps reduce magnetization loss compared with non-oriented electrical steel.

Conventional CRGO grades, such as M4, M5, and M6, are still widely used in distribution transformers where cost, availability, and standard loss requirements matter more than achieving the lowest possible no-load loss.

What Makes Hi-B Different?

Hi-B CRGO Coil From HWHG

Hi-B CRGO Coil From HWHG

Hi-B is a high-permeability type of CRGO, or grain-oriented electrical steel. Compared with conventional CRGO, its grain orientation is more tightly controlled, which helps the material carry magnetic flux more efficiently.

In transformer design, Hi-B is mainly chosen to reduce no-load loss. At the same design flux density, it usually has lower core loss than conventional CRGO, so the manufacturer has more room to meet stricter loss targets without simply increasing the core cross-section.

But Hi-B is not a simple drop-in replacement. The transformer manufacturer still needs to check the final core design, noise level, temperature rise, and guaranteed loss values.

Typical Hi-B designations include 23ZH90 and 27ZH95. Because electrical steel grades can follow different manufacturer and regional naming systems, these codes should always be read together with the stated thickness, loss class, and test condition. In 23ZH90, for example, “23” usually indicates a nominal thickness of 0.23 mm. The remaining letters and numbers usually indicate the product series and guaranteed core-loss class under specified test conditions.

Where Hi-B CRGO Coil Performs Better

For transformer designers, the difference between standard CRGO and Hi-B usually appears in four areas: core loss, design flux density, permeability, and noise behavior.

Parameter	Conventional CRGO	Hi-B Steel	Impact on Transformer Design
Core loss	Higher at the same flux density	Lower at the same flux density	Helps reduce no-load loss and long-term energy cost
Design flux density	Usually more conservative	Allows more room for higher flux-density design	May help reduce core size, but loss and noise limits still need checking
Permeability	Good	Higher	Helps reduce excitation current and improve no-load performance
Magnetostriction	Standard	Usually lower	Can support lower-noise design, but assembly quality still matters

Core Loss and No-Load Loss

Core loss is the energy lost in the transformer core whenever the transformer is energized, even with no load connected. For utility and industrial transformers that stay energized year-round, this loss continues every hour.

Hi-B steel is mainly used because it can reduce this no-load loss. Under common 1.7 T / 50 Hz test conditions, high-permeability GOES grades usually have lower core loss than conventional CRGO grades of similar thickness. A grade such as 23ZH90 is typically associated with a low-loss class around 0.90 W/kg, although the exact value depends on the manufacturer, thickness, coating, and test standard.

At the same loss class, lamination thickness still affects eddy-current loss, handling difficulty, and processing cost, so similar-looking grades are not always interchangeable.

Magnetic Induction and Permeability

Permeability describes how easily the core material carries magnetic flux. Higher permeability helps reduce magnetizing current.

Compared with conventional CRGO, Hi-B usually performs better at the same design flux density. It may also let the transformer manufacturer use a higher flux density while still meeting the required no-load loss value.

That can help reduce core loss, control core weight, or meet stricter guaranteed loss targets. But flux density cannot be pushed only for size reduction. Noise limits, temperature rise, clamping pressure, core assembly quality, and loss guarantees still need to be checked together.

Magnetostriction and Transformer Noise

Magnetostriction is one of the reasons transformers produce audible hum. When the magnetic field changes, the core laminations expand and contract slightly, and that vibration can transfer through the core frame and tank.

Hi-B steel usually has lower magnetostriction than conventional CRGO, which can help support a lower-noise transformer design. Material choice does not solve noise by itself. Step-lap core design, clamping pressure, assembly quality, tank structure, and operating flux density also affect the final sound level.

This matters most in urban substations, indoor transformer rooms, commercial buildings, and other projects with stricter sound limits. Transformer noise is also something end users notice quickly. In Reddit discussions about transformer hum, people often describe it as a low buzzing or humming sound related to vibration in the steel core. This matters most in urban substations, indoor transformer rooms, commercial buildings, and other projects with stricter sound limits.

When Standard CRGO Coil Still Makes Sense

Standard CRGO is still a practical choice when the project is cost-sensitive and the no-load loss requirement is not especially strict.

It is often used for smaller distribution transformers, lower-duty applications, or projects where upfront cost matters more than lifetime energy cost. It can also make sense in markets where transformer losses are not heavily penalized.

In these cases, the lower material cost of conventional CRGO may be more important than the extra loss reduction offered by Hi-B steel.

When to Choose Hi-B CRGO Coil

Hi-B CRGO coil is easier to justify when the finished transformer will stay energized for most of its service life.

It is commonly used in large power transformers, generator step-up transformers, high-efficiency distribution transformers, data center projects, renewable energy systems, EV charging infrastructure, and urban or indoor installations with stricter sound limits.

In these applications, the higher steel cost may be offset by lower no-load loss, better loss-margin control, and easier compliance with efficiency or sound requirements.

A Note on Advanced Hi-B Grades

Some designs use domain-refined or laser-scribed GOES to reduce core loss further. These materials are usually considered only when no-load loss targets are very tight or loss capitalization values are high.

They cost more and require tighter processing control, so the transformer manufacturer should confirm whether the extra loss reduction is worth it.

The Cost Balance: Coil Price vs. Lifetime Loss Value

Hi-B CRGO coil usually costs more per ton than conventional CRGO coil. The premium comes from tighter grain-orientation control, lower core-loss grades, and more demanding production requirements.

For steel buyers, however, the lowest coil price is not always the lowest-cost choice. If the transformer will operate continuously, lower no-load loss can create long-term savings that outweigh the higher material cost.

For a simple comparison, the no-load loss cost can be estimated as:

No-load loss cost = no-load loss in kW × operating hours per year × service life × electricity cost per kWh

This is why utilities and transformer manufacturers often evaluate core materials by total cost, not coil price alone. Standard CRGO coil may be the better choice for cost-sensitive projects. Hi-B CRGO coil becomes easier to justify when the transformer is large, energized year-round, or subject to strict loss capitalization rules.

What to Confirm Before Buying CRGO or Hi-B CRGO Coil

Before selecting a CRGO or Hi-B grade, buyers should compare more than the grade designation and price per ton. The main electrical steel coil properties to confirm include:

Required thickness, such as 0.23 mm, 0.27 mm, or 0.30 mm
Core-loss class and test condition
Coil width and tolerance
Coating type and insulation requirement
Slitting or cutting process
Target transformer type
Applicable standard or customer specification

These specifications should be verified against the supplier’s electrical steel certificates, especially the stated test frequency, flux density, thickness tolerance, coating, and batch data. Together, they show whether the quoted coil actually matches the transformer’s loss target, manufacturing process, and cost requirement.

If you are comparing standard CRGO coil and Hi-B CRGO coil for transformer core production, HWHG can help review the required thickness, loss class, coating, width tolerance, and target application before quotation.

FAQ

Why do utilities increasingly specify Hi-B steel?

Because no-load loss runs whenever the transformer is energized. For large transformers operating year-round, even a small reduction in core loss can create meaningful savings over 20–30 years.

Can Hi-B steel directly replace standard CRGO in an existing design?

Usually not directly. Flux density, core geometry, noise level, and guaranteed no-load loss are tied to the selected steel grade, so the transformer manufacturer often needs to re-check or optimize the core design.

What does a grade like 23ZH90 actually mean?

In many naming systems, “23” refers to a 0.23 mm thickness. The remaining letters and numbers usually indicate the product series and core-loss class under specified test conditions, such as 1.7 T and 50 Hz.

Is Hi-B the highest-performance GOES available today?

Not always. Domain-refined or laser-scribed GOES can reduce core loss further, but it usually costs more and requires tighter processing control.

How does steel thickness affect performance?

Thinner laminations, such as 0.23 mm instead of 0.30 mm, help reduce eddy current loss. That is why many high-efficiency CRGO and Hi-B grades are supplied in thinner gauges.
