Choosing a transformer core material sounds straightforward at first, but in actual projects, it tends to show up later in two places — how much you pay upfront, and how much you keep paying over time.

Most teams start with purchase price. That’s normal. But once the transformer is running, energy loss becomes the part that’s harder to ignore, especially over a 10–20 year span.

Below is a practical look at how silicon steel and amorphous metal compare, not just on paper, but in the kind of trade-offs people actually deal with.

Key Points

Core role: The core carries the magnetic field. Better material means less wasted energy.
Efficiency vs cost: Amorphous cores cut no-load loss quite a bit, while silicon steel keeps initial cost lower.
TCO vs purchase price: Over time, energy loss usually ends up costing more than the equipment itself.
Application matters: In practice, the “better” option depends heavily on how the transformer is used.

The Foundation: Understanding Transformer Core Materials

At a basic level, the core is just there to guide the magnetic field between windings.

Ideally, that happens with minimal loss. In reality, part of that energy always turns into heat — that’s what we call core loss.

The Role of the Core in a Transformer

A transformer core is a magnetic path used to guide the magnetic field from the primary winding to the secondary winding. Ideally, a core should do this without any energy loss. These losses, known as core loss, create heat and waste electricity.

What is Silicon Steel? (GOES & NGOES)

Silicon steel has been the standard choice for decades. It’s basically iron with a bit of silicon added, which helps reduce electrical losses.

Two types show up most often:

GOES: Optimized for one direction of magnetic flow — this is what most transformer cores use
NGOES: Same properties in all directions, so it’s more common in motors than transformers

What is Amorphous Metal?

Amorphous metal (often called metallic glass) is built very differently. Its atoms don’t form the usual crystal structure — they’re arranged more randomly.

That difference makes it easier for the magnetic field to switch direction, which cuts down hysteresis loss. In practical terms, that’s why its no-load loss is much lower.

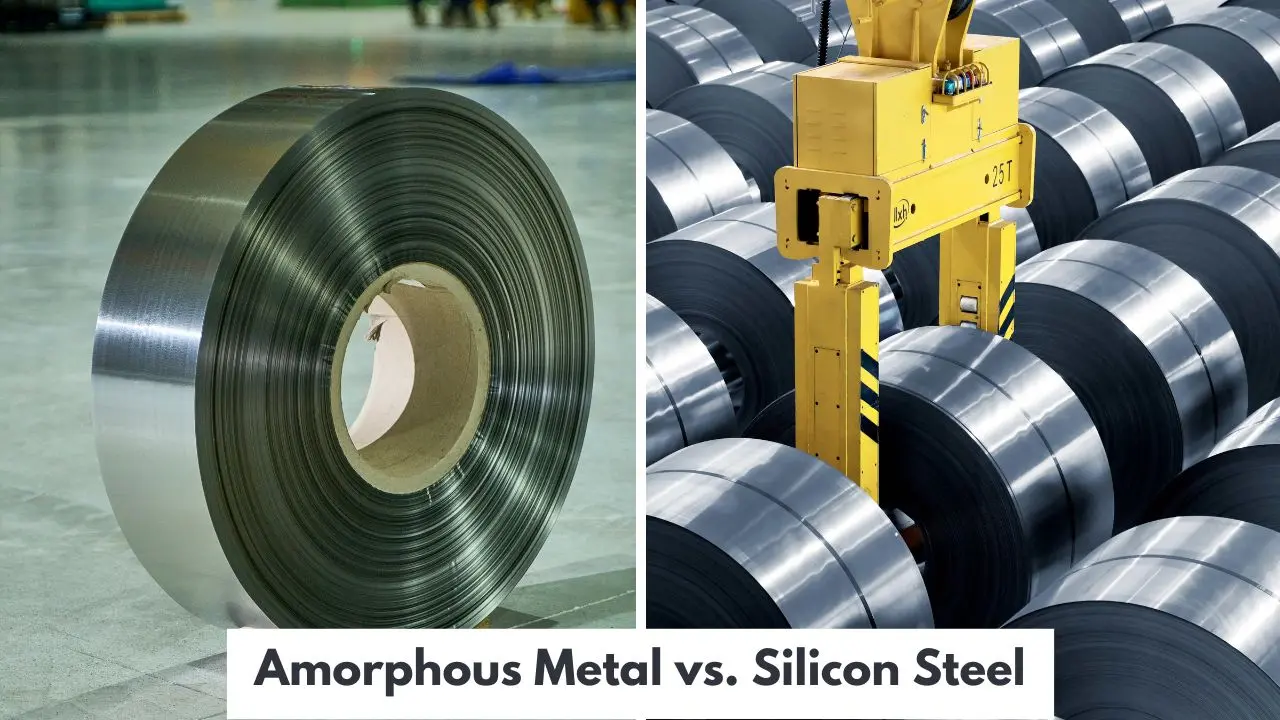

Head-to-Head Comparison: Amorphous Metal vs. Silicon Steel

When you put the two side by side, the trade-offs are fairly straightforward — mostly around efficiency, size, and cost.

Parameter	Amorphous Metal	Silicon Steel (GOES)	Key Takeaway
Core Loss (No-Load Loss)	Very Low (0.2-0.4 W/kg)	Low to Moderate (0.9-1.3 W/kg)	Amorphous metal offers better efficiency. It reduces constant energy waste by 60-80%.
Initial Cost	High	Moderate	Silicon steel has a clear upfront cost advantage, making it attractive for budget-focused projects.
Saturation Flux Density	Lower (~1.5 Tesla)	Higher (~1.8 Tesla)	Silicon steel allows for a smaller, more compact transformer core for the same power rating.
Mechanical Strength	Brittle & Hard	Durable & Tough	Silicon steel is easier to handle and resists physical stress better during manufacturing and installation.
Manufacturing Complexity	Complex & Specialized	Standardized & Mature	The process for making amorphous cores is more difficult and expensive, as noted in this Amorphous Alloy Transformer VS. Silicon Steel Transformer comparison.
Operating Noise	Slightly Higher	Lower	Amorphous transformers can produce a slightly louder hum due to higher magnetostriction.

Beyond Upfront Price: Calculating Total Cost of Ownership (TCO)

Looking only at purchase price can be a bit misleading. Silicon steel usually looks better upfront, but the picture changes once you factor in operating cost.

The main piece here is no-load loss — the energy the transformer uses just by being energized. Since most units run around the clock, this adds up faster than people expect.

Shifting Focus from CapEx to OpEx

Capital expenditure (CapEx) is the initial purchase price. Operational expenditure (OpEx) is the cost to run the equipment. Silicon steel has a lower CapEx, but amorphous metal dramatically lowers OpEx by reducing no load loss.

No load loss is the energy a transformer wastes just by being turned on. This happens 24 hours a day and is a major part of a transformer's lifetime cost.

A Practical TCO Framework

When we evaluate project viability, we model the lifetime cost. A simple but powerful way to compare these materials is by looking at the TCO.

A rough way to look at total cost of ownership (TCO) is:

TCO ≈ Initial Cost + (Annual Energy Loss × Energy Price × Years)

The "Annual Energy Loss" is mostly the core loss figure. A lower core loss directly means a lower TCO over time.

Example: A 500 kVA Transformer

For a rough comparison, take a 500 kVA distribution transformer and assume an electricity price of $0.12/kWh over 20 years:

Parameter	Amorphous Core Transformer	Silicon Steel Core Transformer
Initial Cost	$25,000	$20,000
No-Load Loss	300 Watts	750 Watts
Annual Energy Loss	2,628 kWh	6,570 kWh
Annual Energy Cost	$315	$788
20-Year Energy Cost	$6,300	$15,760
Total Cost of Ownership (20 Yrs)	$31,300	$35,760

In this scenario, the amorphous core transformer costs $5,000 more upfront. However, it saves over $9,400 in energy costs over 20 years. This results in a net TCO savings of over $4,400, proving its long-term financial benefit.

Decision Matrix: Which Core is Right for Your Project?

The technical data is clear, but how does it apply to your specific situation? Use this decision matrix to help you choose the right transformer core material.

Amorphous metal tends to make more sense when:

Energy efficiency is a top concern
The transformer runs at low or variable load
Long-term operating cost matters

Silicon steel is usually the better fit when:

Budget is tight
Space is limited
Mechanical strength matters

Conclusion: Making an Informed and Balanced Decision

There’s no single answer that fits every case.

Amorphous metal is hard to beat on long-term efficiency. Silicon steel, on the other hand, still makes more sense in plenty of projects where cost, size, or durability come first.

Most of the time, the decision just comes down to which side of that trade-off matters more for your project.

Frequently Asked Questions (FAQ)

1. Why is amorphous metal more efficient than silicon steel?

Its random, non-crystalline atomic structure lacks internal boundaries. This makes it much easier for the magnetic field to change direction, which greatly reduces hysteresis loss. This is the main reason for its lower core loss and higher efficiency.

2. Why does amorphous metal have lower losses?

Mainly because of its non-crystalline structure, which makes it easier for the magnetic field to change direction.

3. Can I simply replace a silicon steel core with an amorphous one in my existing transformer?

No, this is not recommended. Amorphous metal is more brittle and has a lower saturation density. A transformer must be completely redesigned, including the core shape and support structure, to properly use an amorphous core and ensure it operates reliably.

4. What is the difference between GOES and NGOES silicon steel?

GOES (Grain-Oriented Electrical Steel) has magnetic properties that are optimized in one direction, making it ideal for transformer cores. NGOES (Non-Grain-Oriented Electrical Steel) has uniform magnetic properties in all directions, so it is used for rotating machines like motors.

5. Is amorphous metal the future for all transformers?

It is a strong and growing trend, especially for distribution transformers where high efficiency is a top priority. However, silicon steel will likely remain the standard for large power transformers and budget-driven projects for years to come due to its lower cost, strength, and mature manufacturing.
