Electrical steel coil, also called silicon steel, is a soft magnetic steel used in transformer cores, motors, and generators. It is supplied in coil form, then slit, stamped, and stacked into laminations for magnetic core production.

What makes electrical steel different from ordinary steel is its magnetic performance. It is designed to carry magnetic flux efficiently while keeping energy loss relatively low. In practical terms, that means better efficiency, less heat generation, and more stable performance in electrical equipment.

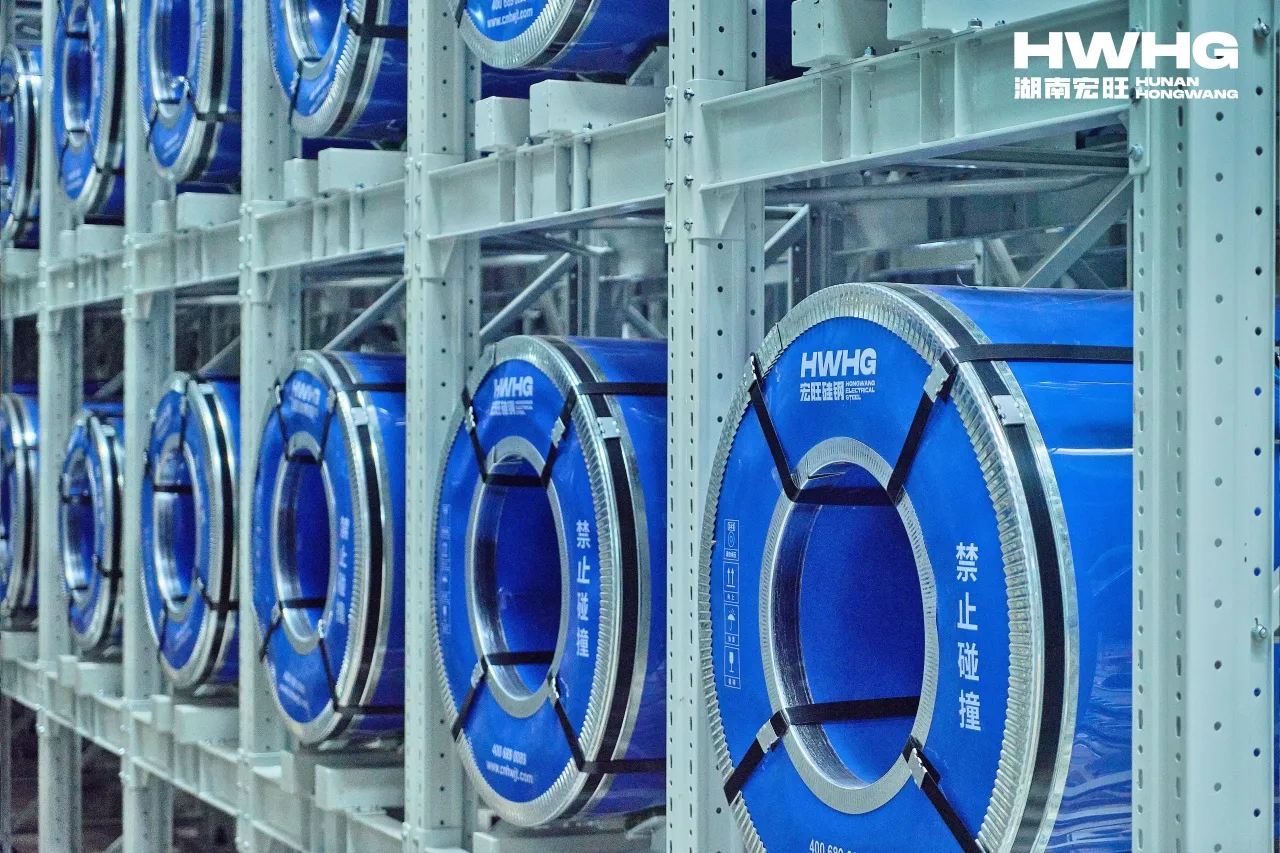

HWHG Electrical Steel Coils

Main Points to Note

Definition: Electrical steel is an iron-silicon alloy developed for magnetic core applications that require low loss and stable magnetic performance.
Types: It is commonly supplied as grain-oriented (GO) electrical steel for transformer cores and non-grain-oriented (NGO) electrical steel for motors and generators.
Main Benefit: Its main value lies in improving energy efficiency, reducing heat generation, and supporting more stable equipment performance.
Processing: Coils are slit, stamped, and assembled into laminations that form transformer or motor cores.
Core Loss: Core loss is one of the key indicators in electrical steel selection, because lower loss usually means better operating efficiency and lower energy waste.

Roll Material Definition: What Makes Electrical Steel Different

Electrical steel is different from ordinary steel because it is designed for magnetic performance rather than general structural use. By controlling the silicon content, manufacturers can improve resistivity, reduce magnetic loss, and make the material more suitable for transformer, motor, and generator cores.

The Role of Silicon in Electrical Steel

Electrical steel is primarily iron with a controlled addition of silicon, usually in the range of about 1% to 4%. This adjustment improves electrical resistivity, helps reduce eddy current loss, and supports the magnetic performance needed in core applications.

Grain-Oriented (GO) vs. Non-Grain-Oriented (NGO) Electrical Steel

Electrical steel is generally divided into two main types: grain-oriented (GO) and non-grain-oriented (NGO).

Grain-oriented electrical steel is optimized for magnetic performance in one direction. That makes it the standard choice for transformer cores, where magnetic flux follows a predictable path.

Non-grain-oriented electrical steel has more uniform magnetic properties in all directions. It is commonly used in rotating machines such as motors and generators, where the magnetic field changes direction during operation.

In practical terms, GO steel is mainly used in transformers, while NGO steel is more commonly used in rotating electrical equipment.

The comparison below outlines the main differences in structure, magnetic behavior, and end use.

Feature	Grain-Oriented (GO) Steel	Non-Grain-Oriented (NGO) Steel
Grain Structure	Aligned in one direction	Randomly arranged
Magnetic Properties	Excellent in one direction	Uniform in all directions
Primary Use	Transformers (static devices)	Motors, Generators (rotating devices)
Core Loss	Very low in grain direction	Low in all directions

Understanding the Specifications of an Electrical Steel Coil

When procurement teams evaluate electrical steel coil, a few parameters usually carry the most weight. These values directly affect efficiency, core design, and downstream processing stability.

Common Physical and Magnetic Specifications

Physical Properties of Electrical Steel, From https://yijinsolution.com

The most important parameters usually include core loss, magnetic induction, thickness, and insulation coating. Because GO and NGO materials serve different applications, their target values are not the same. In practice, engineering and procurement teams are usually better served by looking beyond broad grade labels and reviewing the actual performance data behind the material.

The table below shows typical reference ranges used for general evaluation.

Parameter	Typical GO Range	Typical NGO Range	Unit
Thickness	0.18 - 0.35	0.35 - 0.65	mm
Width	600 - 1250	800 - 1250	mm
Core Loss	< 1.1 @ 1.7T, 50Hz	< 3.5 @ 1.5T, 50Hz	W/kg
Magnetic Induction	> 1.85	> 1.60	Tesla (T)
Insulation Coating	C5, C6	C5, C6	Type
Standards	ASTM A876, IEC 60404-8-7	ASTM A677, EN 10106	N/A

Why These Specifications Matter for Performance

These specifications influence not only magnetic performance, but also equipment efficiency, thermal behavior, and processing results in the finished core.

Core loss is one of the most important indicators. It represents the energy lost as heat when the magnetic field changes inside the core. Lower core loss usually means better efficiency and lower operating loss.

Magnetic induction also matters because it affects how much magnetic flux the material can carry. Higher induction can support more compact transformer or motor design at the same output level.

Thickness remains important, especially in applications where eddy current loss needs to be controlled more tightly. Thinner laminations generally help reduce that loss.

Insulation coating is just as important as the magnetic values on the data sheet. Without a reliable coating, laminations can short between layers, and that quickly undermines core efficiency.

Why Core Loss Matters in Pricing

In high magnetic induction grain-oriented electrical steel, core loss is more than a technical metric. It also affects how the material is evaluated in commercial terms, especially in transformer applications where small loss differences can influence efficiency targets and total project cost.

Against that background, HWHG applies a pricing approach that reflects verified core loss performance more directly, rather than relying only on conventional grade-based pricing. This makes it easier to distinguish materials that may sit within the same grade range but still perform differently in practice. Even a 0.01 variation in core loss can be meaningful in projects where efficiency requirements are tight.

For procurement teams, this creates a clearer link between price and actual material performance. It also helps engineering, sourcing, and project teams make more precise material decisions while keeping cost planning closer to real application needs.

HWHG's Pricing Scheme for Electrical Steel Magnetic Loss

Key Advantages: The Benefits of Using Electrical Steel

Electrical steel is widely used because it combines magnetic efficiency with practical manufacturability. Lower loss helps reduce wasted energy and heat generation, while high magnetic permeability supports more compact electromagnetic design. Consistent material quality also improves production predictability, and sufficient mechanical strength allows the material to be slit, stamped, and assembled with less risk to downstream performance.

In addition to magnetic performance, HWHG electrical steel also emphasizes coating reliability and downstream process compatibility.

Typical insulation coating and related characteristics include:

Inorganic coating
High interlaminar resistance, supporting strong electrical insulation between laminations
Excellent adhesion, helping the coating stay bonded to the steel substrate and resist flaking
Good stacking behavior, which supports lamination performance in core assembly
Excellent shearing performance, which is important during slitting and stamping
Heat resistance suitable for stress-relief annealing at 800°C in a non-oxidizing atmosphere
Resistance to insulation oil, machinery oil, coolant, antifreeze, and Freon

Subsequent Processing: Transforming a Coil into a Magnetic Core

A coil is only the starting form of the material. Before it becomes a transformer or motor core, it typically passes through slitting, stamping, stacking, and assembly. Process control matters at every stage, because mechanical damage or coating failure can affect final magnetic performance.

Motors Made of Non-Oriented Silicon Steel

From Master Coil to Lamination

From the master coil to the finished core, the material passes through several controlled processing stages.

Step 1: Slitting: The wide master coil is cut into narrower strips. The width of these strips is determined by the size of the final part.
Step 2: Stamping & Punching: The slit strips are fed into high-speed presses. These machines punch out the individual layers, called laminations, in their final shape. This is how parts for motors and transformers are made.
Step 3: Stacking & Assembly: The stamped laminations are stacked together to form the core. They can be interlocked, welded, or bonded together.

At that stage, coating quality and edge condition become especially important. Poor adhesion, weak interlaminar insulation, or burr-related damage can all increase core loss in the finished product.

That is also why stress-relief annealing matters. Mechanical processing introduces stress into the steel, and that stress can hurt magnetic performance. A coating system that can withstand proper annealing conditions gives manufacturers more room to protect the designed magnetic properties through downstream processing.

Core Applications: Where Electrical Steel Coils are Used

Electrical steel is used across a wide range of electromagnetic equipment, but the application depends largely on whether the material is GO or NGO. The distinction matters because each type is designed around a different magnetic operating condition.

GO electrical steel is mainly used in power transformers, distribution transformers, and other static magnetic core applications.

NGO electrical steel is commonly used in electric motors, generators, alternators, and other rotating electrical machines.

In both cases, lower loss and more stable processing performance translate into better efficiency, lower heat, and more predictable manufacturing results.

Final Note

In practical applications, electrical steel selection affects more than material sourcing. Core loss, magnetic induction, coating behavior, and processing stability all shape the final performance of the transformer or motor core.

This is also why HWHG’s core loss-based pricing approach is relevant in real project evaluation: it links price more closely to verified performance and gives procurement and engineering teams a clearer basis for material selection, design control, and cost planning.
